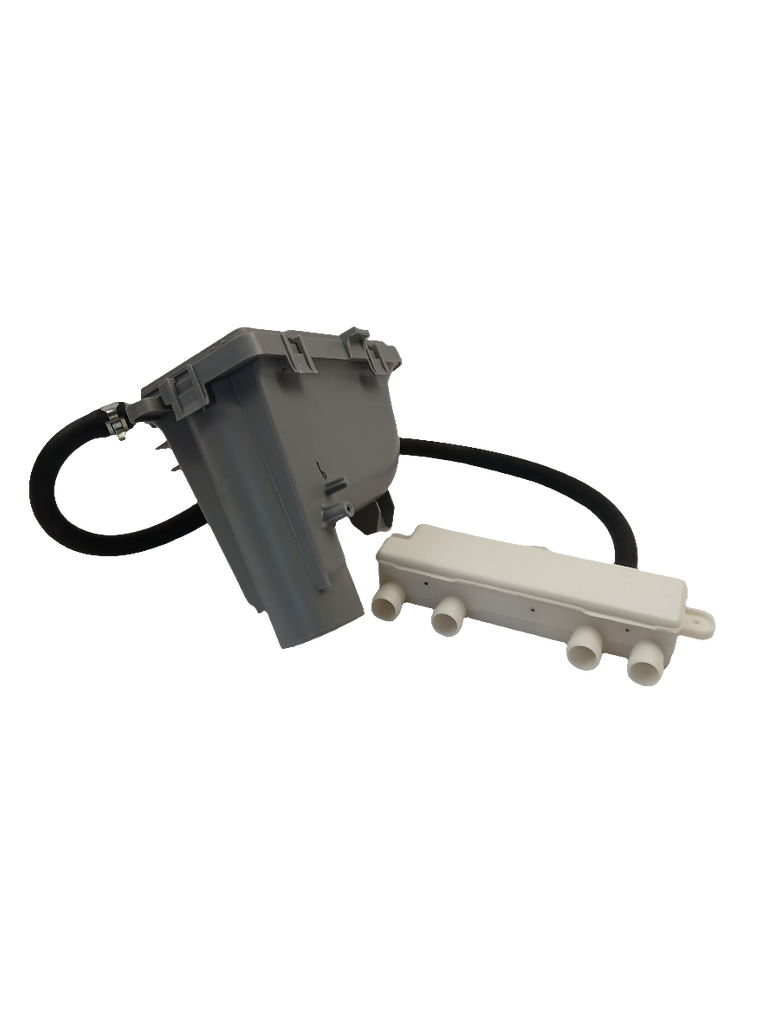

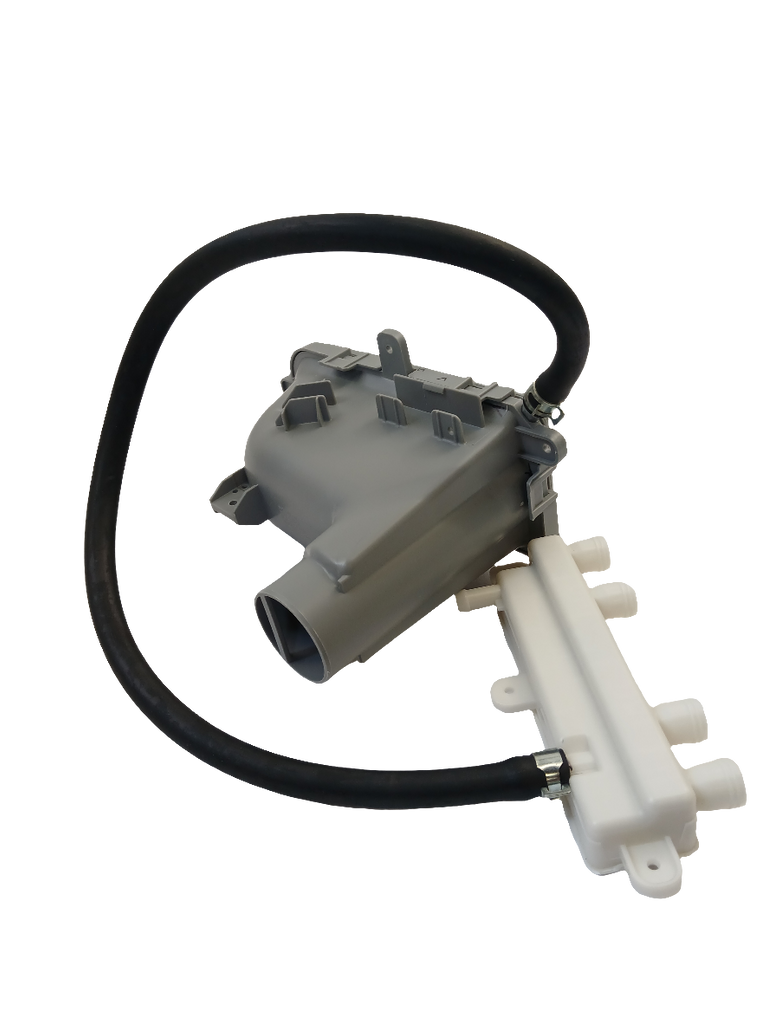

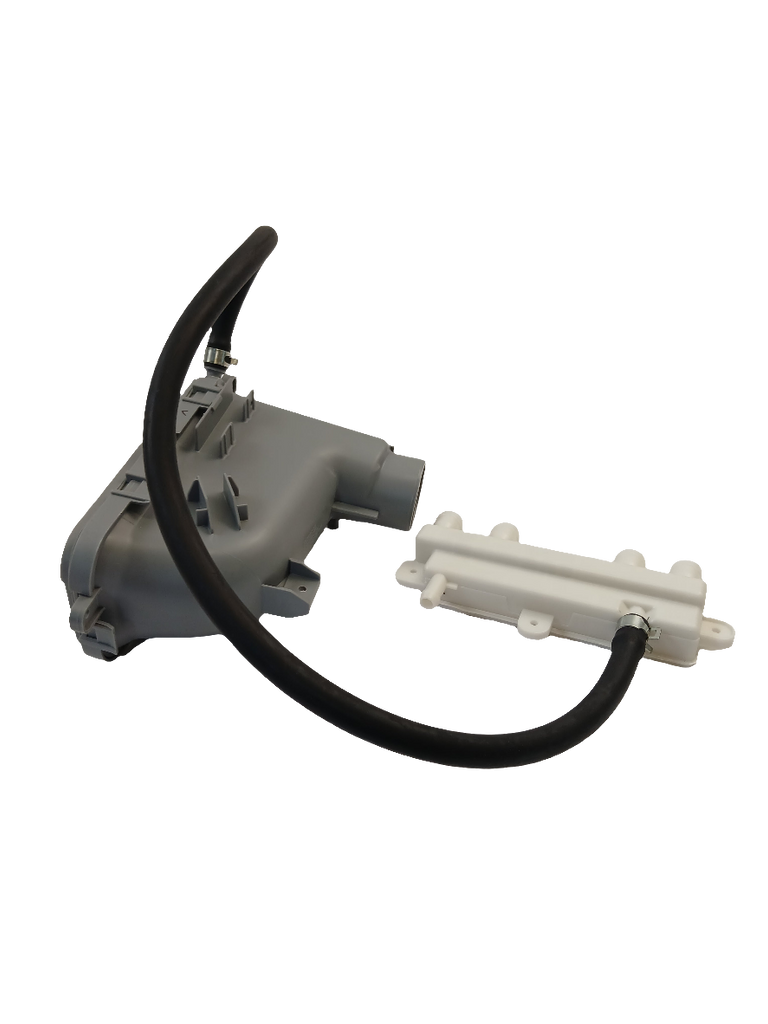

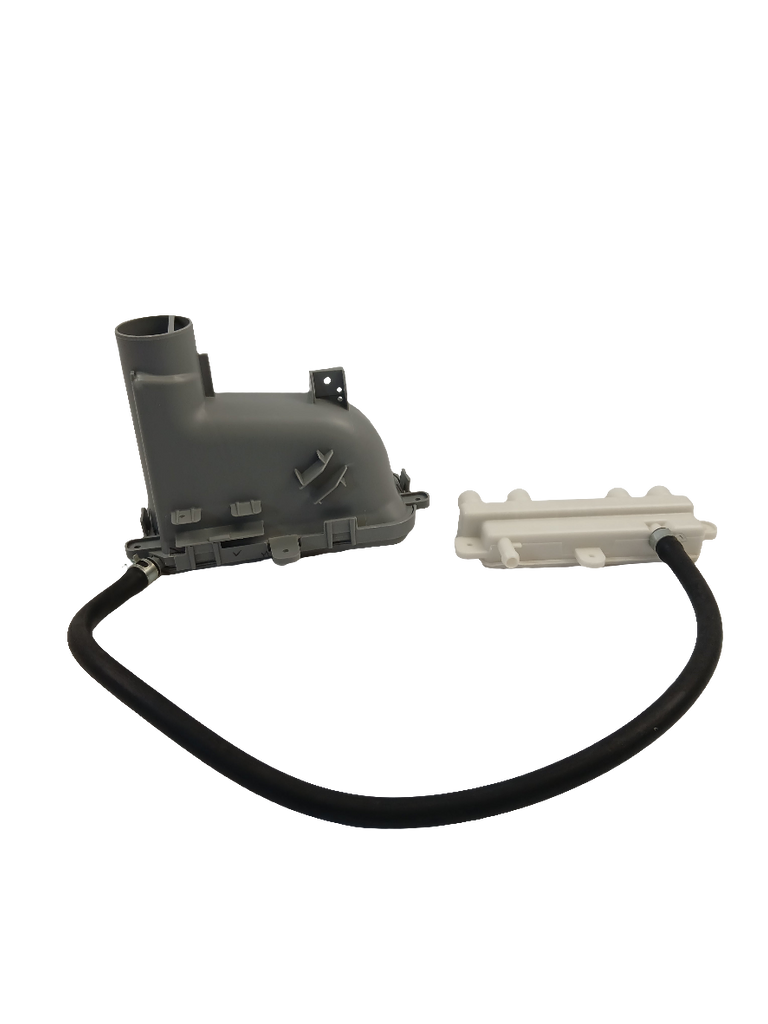

Samsung Washer Dispenser Drawer Housing DC97-20040A

Genuine Samsung assembly housing drawer / washer dispenser drawer housing used on select Samsung FlexWash washers.

Is This the Right Part?

Common Symptoms

• Dispenser drawer fits loosely, binds, or does not close/seat correctly.
• Detergent, bleach, or fabric-softener dispensing concerns after residue, loading, insert, and washer-level issues have been ruled out.
• Visible cracking, deformation, or damage at the dispenser-drawer housing.

Check Before Replacing

• Disconnect power, remove the dispenser drawer, and visually inspect the housing for cracks, deformation, or damage that could prevent the drawer from being supported and aligned.
• Clean detergent residue from the removable drawer components and drawer recess, then reinstall the drawer aligned with its compartment rails; check that it moves and closes without forcing.
• Before attributing a dispensing issue to the housing, confirm HE detergent is used, additives are below their MAX lines, required liquid inserts are installed, and the washer is level.
• If dispensing concerns continue after cleaning and basic setup checks, verify the exact washer model and inspect/service the dispenser system rather than assuming the housing alone is defective.

Pro Tip

Part Details

Key Features

• Genuine Samsung OEM washer part.
• Assembly housing for the dispenser drawer.
• Holds and secures the detergent dispenser in place.
• Designed for factory-fit alignment on applicable Samsung washers.

Installation Notes

• Disconnect the washer from power before servicing.
• Confirm the appliance model number and exact part number DC97-20040A before installation.
• Clean residue from the drawer and recess, and align the drawer with its compartment rails when reinstalling it.
• Do not force the drawer; after installation, confirm it seats and closes smoothly.
• Follow the model-specific service documentation or use a qualified appliance technician if access to the housing requires disassembly beyond the drawer area.

Verified Compatible Models

WV55M9600AV/A5, WV55M9600AV/A5-00, WV55M9600AV/A5-0000, WV55M9600AV/A5-0001, WV55M9600AV/A5-01, WV55M9600AV/A5-02, WV55M9600AV/A5-03, WV55M9600AW/A5, WV55M9600AW/A5-00, WV55M9600AW/A5-01, WV55M9600AW/A5-02, WV55M9600AW/A5-03, WV55M9605MV/A5, WV55M9605MW/A5, WV60M9900AV/A5, WV60M9900AV/A5-00, WV60M9900AV/A5-01, WV60M9900AV/A5-02, WV60M9900AW/A5, WV60M9900AW/A5-00, WV60M9900AW/A5-01, WV60M9900AW/A5-02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
