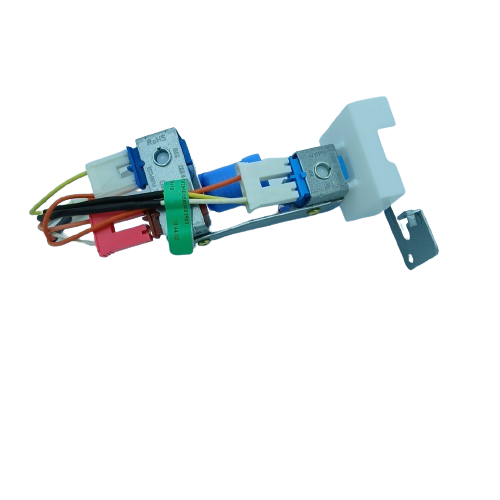

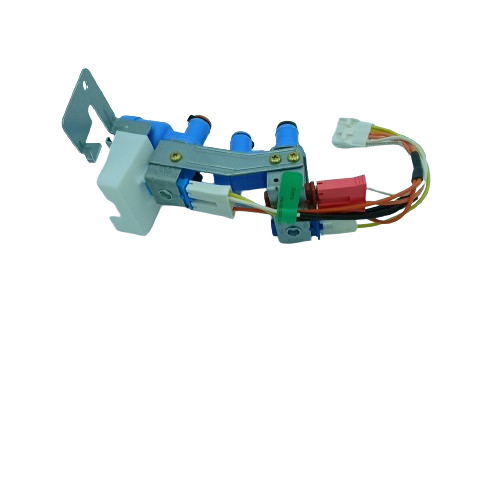

GE Refrigerator Not Dispensing Water or Ice Maker Stopped? Valve Isolation Assembly WR01F04603 – Fix Water Flow Failure Fast

If your GE refrigerator has stopped dispensing water, the ice maker has stopped filling, or you hear a humming noise when requesting water, the valve isolation assembly is the most common failed component. In most GE bottom-mount and French door refrigerators, the valve isolation assembly controls and isolates water flow to both the dispenser and ice maker. When it fails, water flow stops entirely or becomes intermittent, the ice maker stops producing ice, and in some cases water leaks internally near the valve housing. ⚡ Common failure point on GE GNE, GWE, PNE, and QNE series refrigerators. Part WR01F04603 is the genuine OEM replacement that restores full water flow to the dispenser and ice maker immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Refrigerator powers on and cools normally
• ✔ Water supply line to the fridge is confirmed on and has adequate pressure
• ✔ Water filter is not overdue — replace filter first and retest before ordering
• ✔ Dispenser control board and door switch confirmed functional
• ✔ ONLY problem is no water from dispenser, ice maker not filling, or water leaking near the valve area

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• No water from the dispenser — most common complaint
• Ice maker stopped producing ice or not filling with water
• Slow or intermittent water flow from the dispenser
• Humming or buzzing sound when requesting water but nothing comes out
• Water leaking inside the refrigerator near the valve housing area
• Dispenser works intermittently — sometimes water, sometimes nothing

✔ If these symptoms match, the valve isolation assembly is the most likely failed component in the system.

✔ In most cases, replacing the valve isolation assembly restores full water and ice maker function immediately.

📦 Part Details

• Part Number: WR01F04603
• Type: Valve isolation assembly — water flow control and isolation for dispenser and ice maker (diagram reference #909)
• Replaces: WR03F04696, WR57X26569, 225D6598G001 (no modification required)
• Brands: GE, Café, GE Profile, Haier (GE-platform refrigerators)

⚙️ Installation Notes

Skill Level: Easy — 20–30 minutes. Unplug the refrigerator and shut off the water supply line before beginning. Use a towel to catch residual water when disconnecting the inlet line. The assembly mounts with two screws and uses push-fit or compression water line connectors — no soldering required. After installation, restore water supply slowly and check for leaks at all connections before plugging the unit back in. Run the dispenser for 2–3 minutes to purge air from the line before evaluating flow.

✓ Compatible Models

Confirmed compatible with CNE25SSKAKSS, CNE25SSKBKSS, CNE25SSKFKSS, CNE25SSKGKSS, CWE19SP2NBS1, CWE19SP2NKS1, CWE19SP3NBD1, CWE19SP3NKD1, CWE19SP4NBW2, CWE19SP4NKW2, CZS22MSKKHSS, GNE25JGKFFBB, GNE25JGKFFWW, GNE25JMKFFES, GNE25JSKFFSS, GNE27JGMAFBB, GNE27JGMAFWW, GNE27JGMKFBB, GNE27JGMKFWW, GNE27JMMAFES, GNE27JMMKFES, GNE27JSMAFSS, GNE27JSMKFSS, GWE19JGLAFBB, GWE19JGLAFWW, GWE19JGLGFBB, GWE19JGLGFWW, GWE19JGLKFBB, GWE19JGLKFWW, GWE19JMLAFES, GWE19JMLGFES, GWE19JMLKFES, GWE19JSLAFSS, GWE19JSLGFSS, GWE19JSLKFSS, PNE25JGKBKBB, PNE25JGKBKWW, PNE25JGKCKBB, PNE25JGKFKBB, PNE25JGKFKWW, PNE25JMKBKES, PNE25JMKFKES, PNE25JSKBKSS, PNE25JSKCKSS, PNE25JSKFKSS, PNE25NGLAKBB, PNE25NGLAKWW, PNE25NGLGKBB, PNE25NGLGKWW, PNE25NGLJKBB, PNE25NMLAKES, PNE25NMLGKES, PNE25NMLJKES, PNE25NSLAKSS, PNE25NSLGKSS, PNE25NSLJKSS, PNE25NSLLKSS, PNM27JSMATSS, PNM27JSMKTSS, PSE25KSHKHSS, PWM19JSLAFSS, PWM19JSLBFSS, PWM19JSLKFSS, QNE27JBMKFTS, QNE27JBMTS, QNE27JSMAFSS, QNE27JSMKFSS, QNE27JSMSS, plus additional GE and Café refrigerator models. Contact us to verify your model number before ordering.

💡 Pro Tip
