GE Combo Dryer Not Drying or Taking Too Long? Trap Duct Assembly WW02F00779 – Fix Airflow Fast
A GE washer/dryer combo that takes multiple cycles to dry a load, produces damp clothes, or shuts off early on thermal overload is almost always suffering from a blocked or damaged trap duct assembly restricting airflow through the lint trap system. In GE GUD27 and GUD37 series ventless combo units, the trap duct assembly channels moist air from the drum through the lint trap and condenser system. When it cracks, collapses, or becomes blocked with compacted lint, airflow drops dramatically — drying times double or triple, the unit overheats, and the thermal limiter trips to protect the heating element. ⚡ One of the most common service parts on GE ventless combo units — lint compaction and duct fatigue are the leading causes of failure. Part WW02F00779 is the genuine OEM replacement that restores full airflow and normal drying performance immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ The combo unit powers on and the wash cycle completes normally
- ✔ The heating element has been confirmed functional
- ✔ The lint trap has been cleaned and is not the source of the blockage
- ✔ ONLY problem is poor drying performance, extended drying times, or thermal overload shutoff
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Clothes still damp after a full dry cycle — multiple cycles needed
- Unit shuts off early during drying — thermal overload tripping
- Drying times significantly longer than normal with no other changes
- Musty or humid smell from the unit after drying cycle completes
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this trap duct assembly restores full airflow and normal drying performance immediately.

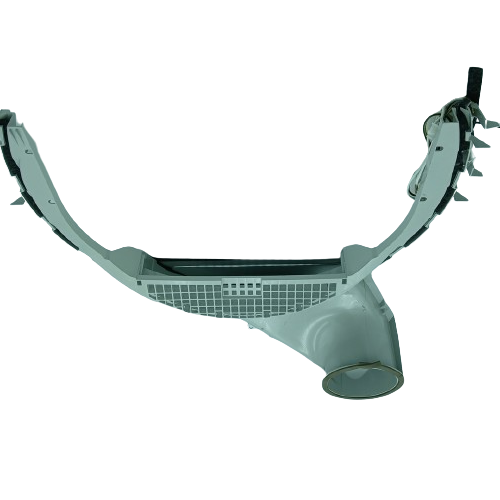

📦 Part Details
- Part Number: WW02F00779
- Type: Washer/Dryer Combo Trap Duct Assembly / Lint Trap Duct
- Replaces: 189D7071G003
- Brands: GE
⚠️ Recommended While Repairing:
While the trap duct is removed, inspect the thermal limiter and heating element. If the unit has been running restricted airflow long enough to trip the thermal limiter repeatedly, the limiter may have failed open and will need replacement — a new duct won’t restore drying if the limiter is blown. Test continuity at the limiter before reassembling.
While the trap duct is removed, inspect the thermal limiter and heating element. If the unit has been running restricted airflow long enough to trip the thermal limiter repeatedly, the limiter may have failed open and will need replacement — a new duct won’t restore drying if the limiter is blown. Test continuity at the limiter before reassembling.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power before servicing. Access the trap duct assembly by removing the front or top panel of the combo unit depending on model. Disconnect the duct from the lint trap housing and drum outlet, remove any mounting screws or clips, and seat the new assembly in the same position. Confirm all connections are airtight before reassembling the cabinet and restoring power.
✓ Compatible Models
Confirmed compatible with GUD27ESMM0WW, GUD27ESSM0WW, GUD27GSSM0WW, GUD37ESMM0DG, GUV27ESMW0WW plus additional GE combo models. Contact us to verify your model number before ordering.
💡 Pro Tip
Clean the Condenser While You’re In There:
GE ventless combo units use a condenser to remove moisture from the air instead of venting it outside. If the condenser fins are clogged with lint or mineral deposits, airflow restriction will return even with a new duct. With the cabinet open, rinse the condenser with warm water and let it dry completely before reassembling. This takes 10 minutes and prevents the same symptom from recurring within months of the repair.
GE ventless combo units use a condenser to remove moisture from the air instead of venting it outside. If the condenser fins are clogged with lint or mineral deposits, airflow restriction will return even with a new duct. With the cabinet open, rinse the condenser with warm water and let it dry completely before reassembling. This takes 10 minutes and prevents the same symptom from recurring within months of the repair.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
