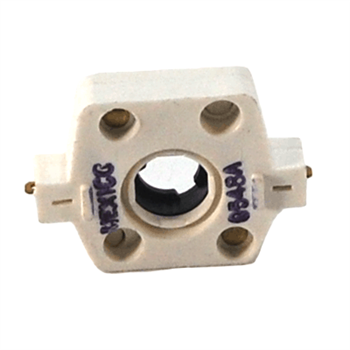

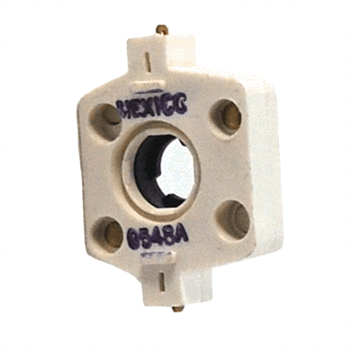

Viking Range Corporation Range Spark ignition switch / valve switch PA020015

Top-burner spark ignition switch used in Viking gas ranges and rangetops. Viking parts documentation identifies PA020015 as the spark ignition switch for units manufactured before February 23, 2005; the switch sends electrical power to the spark module when a burner control is turned to an ignition position.

Is This the Right Part?

Common Symptoms

• Burner fails to spark or light when the knob is turned to the ignition position.
• Spark system may continue clicking or sparking after the control is returned to OFF if the switch contacts remain closed.
• Intermittent burner ignition caused by worn, contaminated, or moisture-affected switch contacts.

Check Before Replacing

• Disconnect electrical power and shut off the gas supply before accessing or testing the switch.
• Visually inspect the switch area and wiring for moisture, contamination, loose connections, or visible damage; allow any moisture to dry before further testing.
• With power disconnected, a qualified technician may check the switch for continuity in the OFF position and compare its behavior across control positions. A switch showing continuity when it should be open is suspect.
• Confirm that the symptom follows the burner-control switch circuit rather than assuming the spark module or electrode is defective.

Pro Tip

Part Details

Key Features

• Genuine Viking Range Corporation spark ignition switch.
• Designed for Viking gas ranges and rangetops using the applicable top-burner ignition system.
• The switch sends voltage to the spark module when its contacts close.

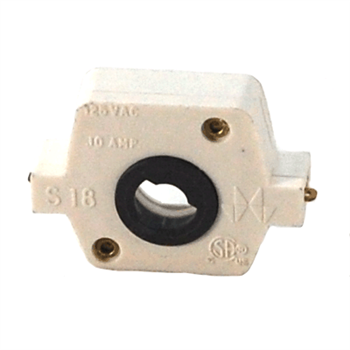

• The documented SUPCO SPK0015 replacement is rated 125 VAC, 10 A, and is listed for Viking ranges.

Installation Notes

• Disconnect electrical power and shut off the gas supply before installation.
• Use the exact appliance model and serial information to confirm applicability, including the documented pre-February 23, 2005 applicability limitation for PA020015.
• Follow the appliance service documentation for access, wire placement, and switch replacement; do not alter the wiring or bypass the switch.
• After installation, restore utilities cautiously and verify normal burner ignition and that sparking stops when the control is returned to OFF.

Verified Compatible Models

DGCU105, DGCU155, DGCU165, DGSU100, DGSU160, DVGWT240, EVDSC305, EVGIC305, EVGIC365, EVGIC485, EVGRT300, EVGRT360, EVGRT480, VGIC307, VGSS360

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
