Whirlpool Corporation Dryer door seal W10239307, Replaces W10221653, W10240777, W10215728, W10111903, W10130493, W10106630, 8576627, 8575027, 8573845

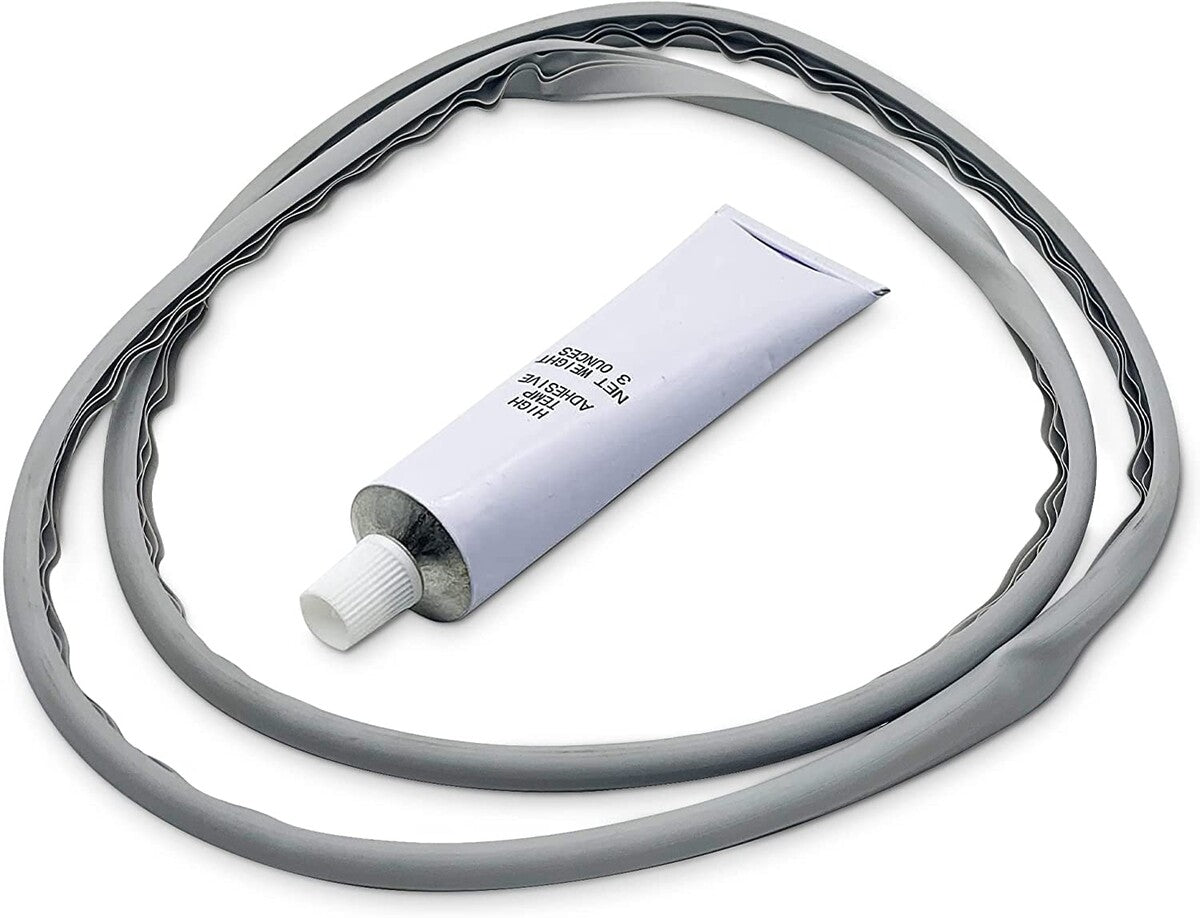

Outer dryer door seal with adhesive; gasket that seals around the dryer door to help prevent heat loss.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dryer door does not close properly because the seal is loose, damaged, or incorrectly positioned.
• Longer-than-normal drying caused by room air entering through a damaged or missing seal.
• Visible tearing, separation, stretching, or detachment of the door seal.
• Seal adhesive has released from the door surface.

Check Before Replacing

• With the dryer unplugged and the door open, inspect the seal around its full perimeter for tears, gaps, flattening, stretching, or sections that have detached.
• Close the empty dryer door and check whether the seal contacts the door opening evenly without obvious gaps or interference.
• Visually inspect for lint or debris trapped between the seal and its mating surface; clean only accessible surfaces with the dryer disconnected from power.
• If the seal is damaged or missing, verify the dryer model and part number before ordering or installing a replacement; a damaged seal alone does not establish that it is the only cause of poor drying.

Pro Tip

Part Details

Key Features

• Whirlpool OEM dryer door seal.
• Outer door seal/gasket.
• Adhesive is included.
• Designed to reduce air leakage and retain heat in the drum.
• Documented as a replacement for multiple prior Whirlpool-family door-seal numbers in the trusted archive.

Installation Notes

• Disconnect electrical power to the dryer before servicing.
• Remove the old seal and clean residual adhesive from the mounting surface before fitting the replacement.
• Apply and position the supplied adhesive and seal according to the applicable model-specific instructions; keep the seal evenly aligned around the door perimeter.
• Allow the adhesive to set as directed by the adhesive or model-specific instructions before returning the dryer to service.
• After installation, check that the door closes and latches normally and that the seal is not folded, twisted, or obstructing the door.

Verified Compatible Models

7MMGDB850WL0, 7MMGDB850WL1, 7MMGDB950AG0, 7MMGDB950AG1, 7MWGD7800XW0, 7MWGD8800AW0, 7MWGD8800AW1, MED6400TB0, MEDB400VQ1, MEDB850YG0, MEDB950YW1, MGD6600TQ0, MGDB200VQ1, MGDB850WQ0, MGDB950YW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
