Whirlpool Microwave door switch, three-terminal W10727360, Replaces W10269457

Genuine Whirlpool OEM three-terminal microwave door switch rated 16 amps, 125/250 volts AC. The switch operates as part of the microwave door-interlock system and prevents operation when the door is open.

Is This the Right Part?

Common Symptoms

• Microwave will not start with the door closed
• Microwave runs for a few seconds and then stops
• Microwave does not heat because the interlock circuit is not completing correctly
• Microwave continues operating or does not shut off when the door is opened
• Intermittent operation associated with opening or closing the door

Check Before Replacing

• Disconnect power before accessing the switch or removing any appliance panels.
• Check that the door closes fully and that the latch hooks visibly engage the interlock actuator without excessive looseness.
• With power disconnected, inspect the switch and nearby wiring for burnt terminals, arcing, melted plastic, loose connections, or mechanical damage.
• If qualified to do so, test the switch terminals for the correct continuity changes with a multimeter while manually actuating the switch; compare results with the appliance service documentation.
• Do not operate the microwave with panels removed or bypass, short, or defeat any door-interlock switch.
• After interlock repair, have the microwave's interlock operation and required radiation-leakage safety checks verified according to the model's service procedure.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM part
• Three-terminal microwave door switch
• Rated 16 amps, 125/250 volts AC
• Used in the microwave door-interlock system

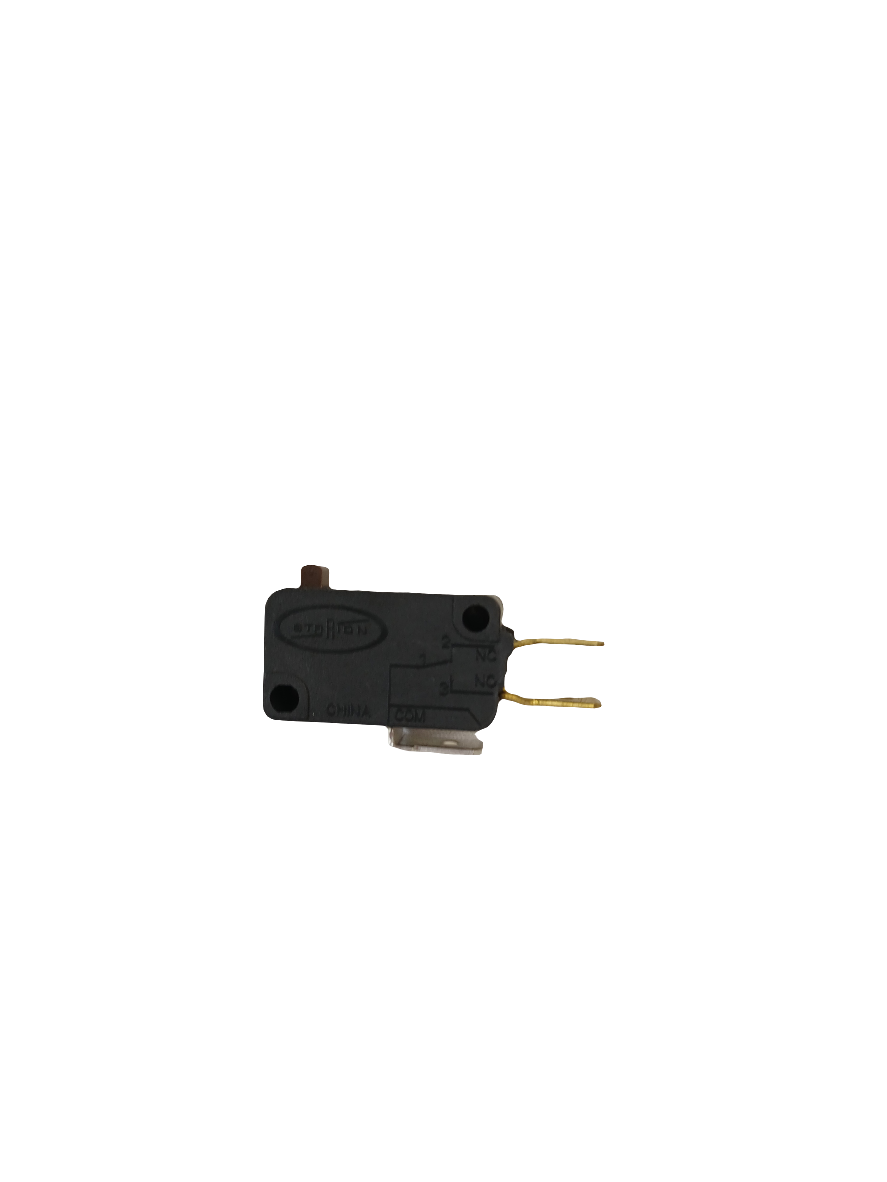

• Black switch body with metal terminals
• Manufacturer part number W10727360

Installation Notes

• Disconnect electrical power before service.
• The switch is located behind the microwave front/control-panel area and is retained in an interlock support or latch assembly; access varies by model.
• Record the original wire orientation before removal and reconnect wires to the corresponding terminals.
• Release the switch from its support carefully to avoid damaging the plastic interlock assembly or mounting tabs.
• Confirm that the switch is fully seated and that the door-latch mechanism actuates it correctly before reassembly.
• Because microwave shielding and door-interlock operation require post-repair verification, professional installation and safety testing are recommended.
