Whirlpool Range Radiant surface element, large, 2500W/240V W10823696, Replaces 74009034, 7406P366-60, 7406P36660, 8053605, 8272565, 8523692, WP8523692

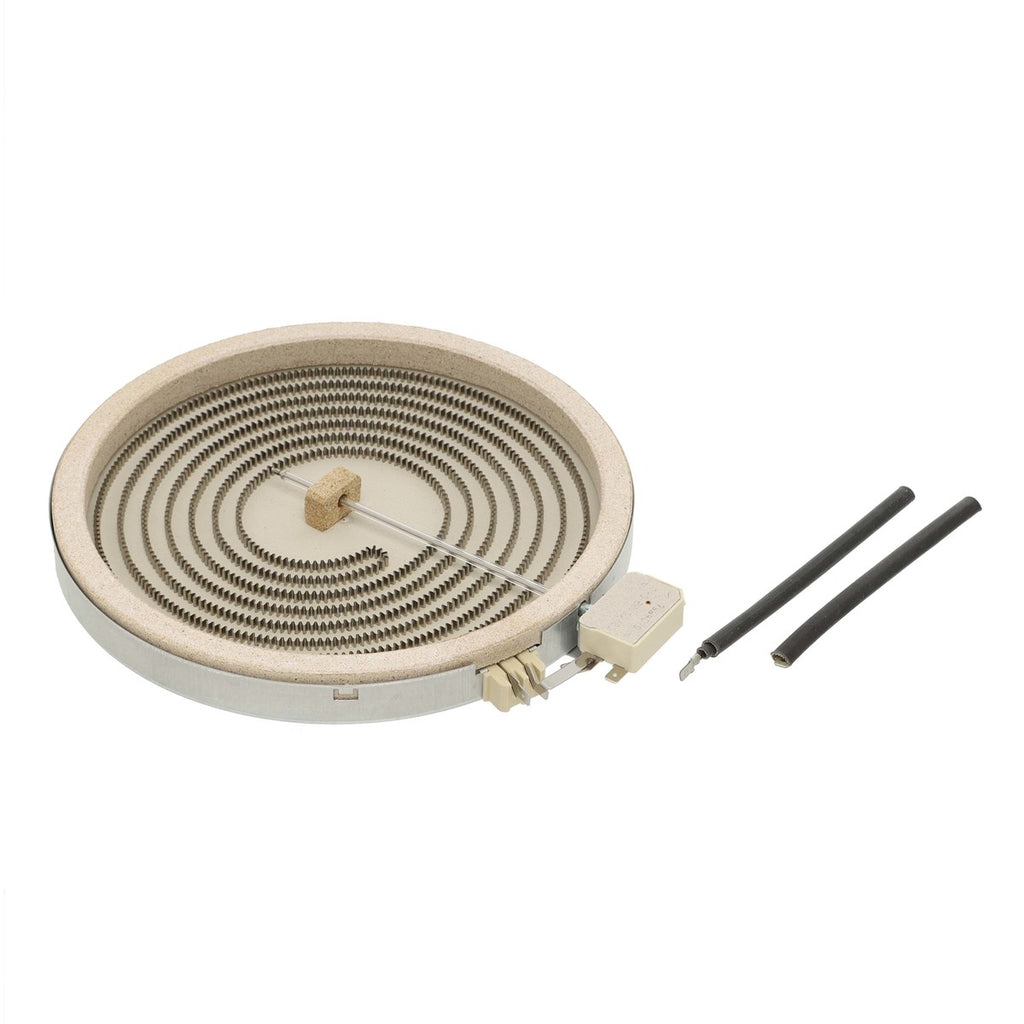

Genuine Whirlpool OEM radiant surface element for smooth-top electric ranges. It supplies heat to a cooking area on the range surface.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• The associated radiant cooking zone remains cold or does not heat.
• The associated cooking zone heats weakly or unevenly.
• Visible damage or deterioration of the radiant element may be present after the appliance is de-energized and the element is accessed.

Check Before Replacing

• Compare operation of the affected cooking zone with the other surface zones; if all zones are inoperative, do not assume this individual element is the cause.
• Try the affected zone at more than one heat setting and observe from a safe distance whether it produces heat; do not touch the glass surface.
• Before accessing internal components, disconnect power by unplugging the range or switching off its house circuit breaker.
• With power disconnected, verify the appliance model and the failed element's location against the applicable parts diagram/service information before replacing anything.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM radiant surface element.
• 2500-watt, 240-volt large radiant cooking element.
• Includes a limiter.
• Sold individually.

Installation Notes

• Disconnect electrical power at the plug or house circuit breaker before installation.
• Installation requires access to the range cooktop and minor appliance disassembly; follow the instructions for the exact range model.
• Do not proceed with wiring or connector changes unless the connections can be positively verified for the exact model; use a qualified appliance technician if uncertain.
• Allow the cooktop to cool completely before service.

Verified Compatible Models

GY396LXGB4, ISE630VS11, MER5765RAB, MERH865RAB1, MERH865RAB13, MERH865RAB15, RF199LXKT0, RF366PXGN1, RF366PXGQ1, RF366PXGT1, RF376LXGN1, RF376LXGT3, RF388LXGT4, WFE320M0EB0, YISE630VS11

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
