Whirlpool Dishwasher Pump & Motor Assembly W10888591, Replaces W10837402

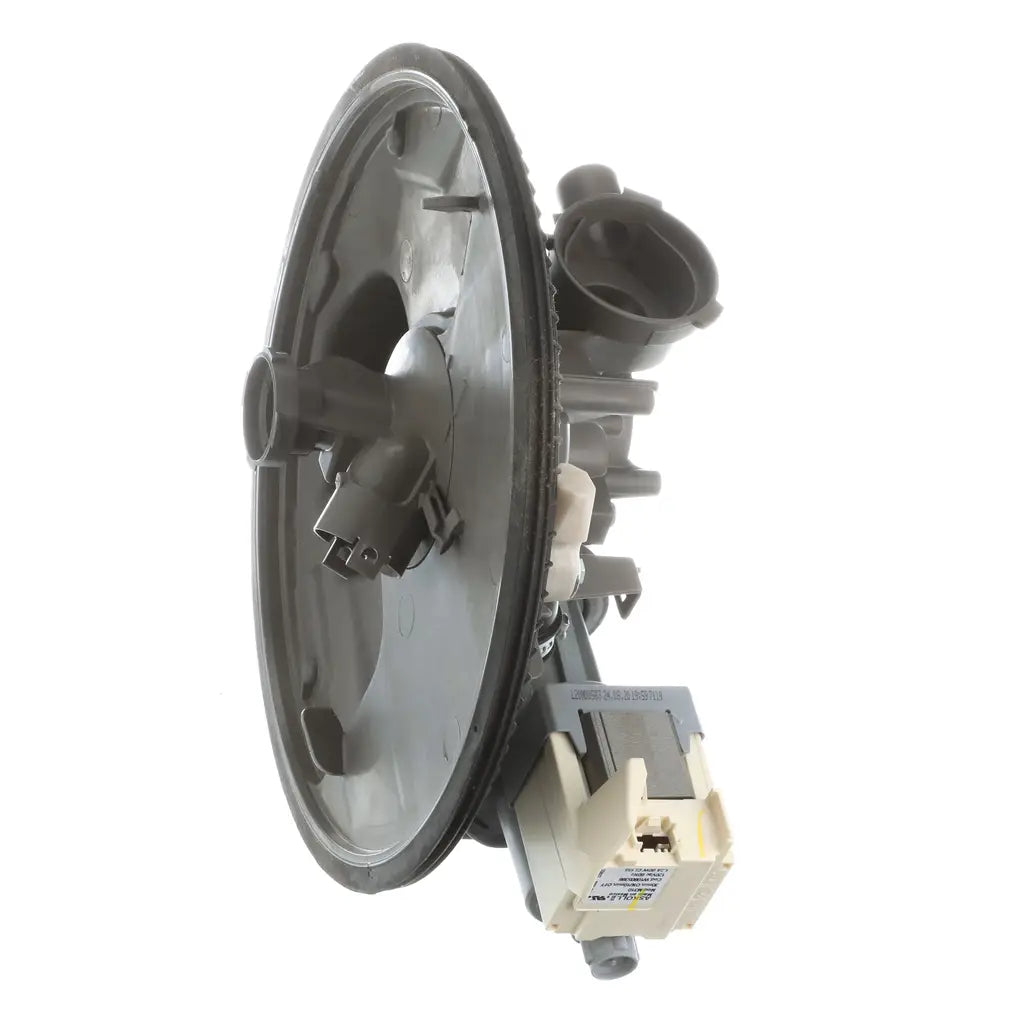

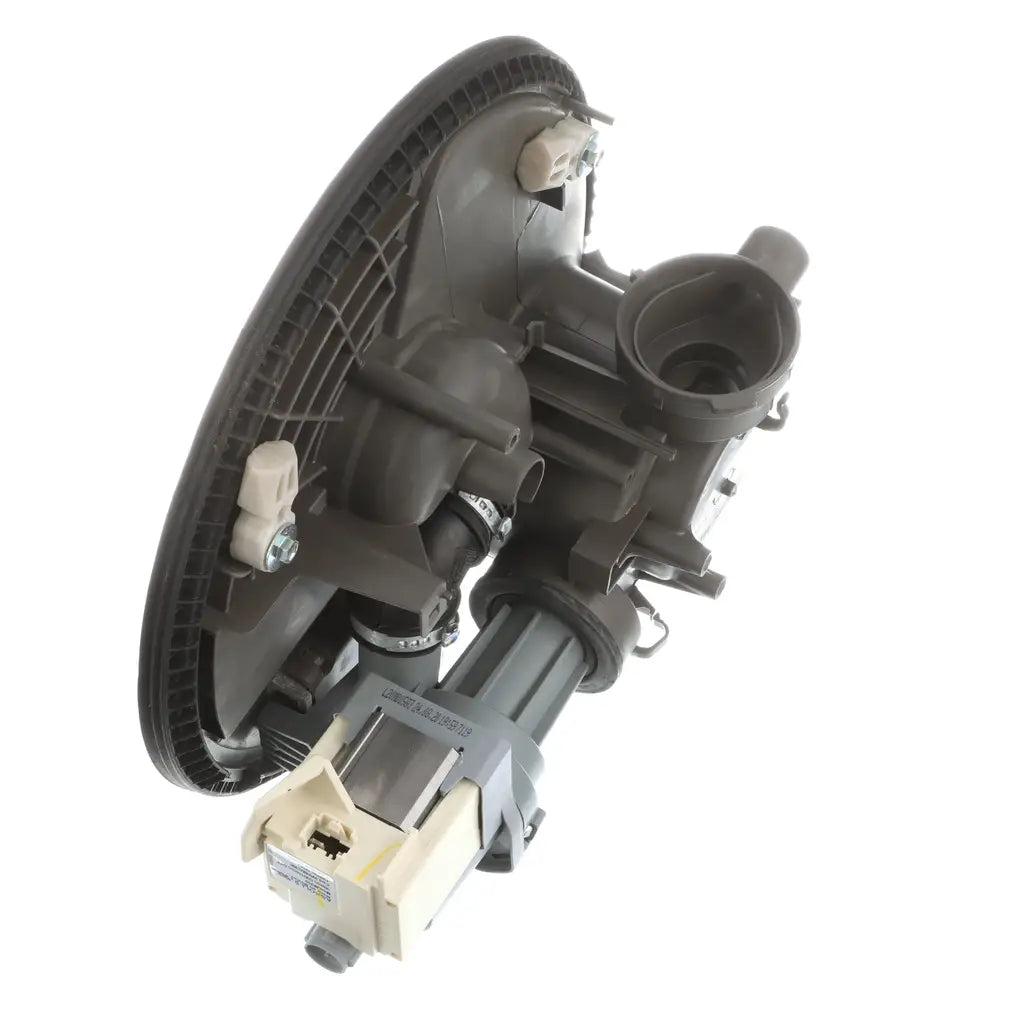

Genuine Whirlpool OEM dishwasher pump and motor assembly that circulates water through the spray arms during the wash cycle.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dishes remain poorly cleaned despite the dishwasher filling with water
• Little or no spray-arm movement or wash-water spray during the circulation portion of a cycle
• Unusual humming, grinding, or other abnormal noise during washing
• The dishwasher fills and drains, but provides little effective washing action

Check Before Replacing

• Confirm that the dishwasher fills with water and reaches the wash portion of the cycle before evaluating circulation.
• After safely pausing or opening the dishwasher according to the appliance instructions, check whether the spray arms are wet and have changed position; lack of spray-arm activity can indicate a circulation problem but is not conclusive.
• Listen for the circulation pump and motor during washing and compare its sound with the appliance’s normal operation; abnormal noise alone does not prove this part has failed.
• Inspect the spray arms and visible filter/sump area for obvious food debris or blockage before condemning the pump and motor assembly.
• If electrical testing or component removal is required, disconnect electrical power and follow the model-specific service documentation.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM pump and motor assembly
• Designed for dishwasher wash-water circulation
• Moves water from the sump area through the spray arms
• Manufacturer part number W10888591
• Prior Whirlpool number W10837402 is documented as replaced by this part

Installation Notes

• Disconnect the dishwasher from electrical power at the house circuit breaker before installation.
• Wear work gloves when handling the assembly and dishwasher components.
• Use the model-specific service information to identify the pump/motor connections and mounting details; do not force fittings or wiring.
• After installation, check for leaks and confirm normal circulation during a test cycle before returning the appliance to service.

Verified Compatible Models

ADB1300AFB1, ADB1300AFS1, ADB1300AFW1, ADB1400AGB0, ADB1400AGB1, ADB1400AGB3, ADB1400AGS0, ADB1400AGS1, ADB1400AGS2, ADB1400AGS3, ADB1400AGW0, ADB1400AGW1, ADB1400AGW3, WDF110PABB5, WDF110PABS5

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
