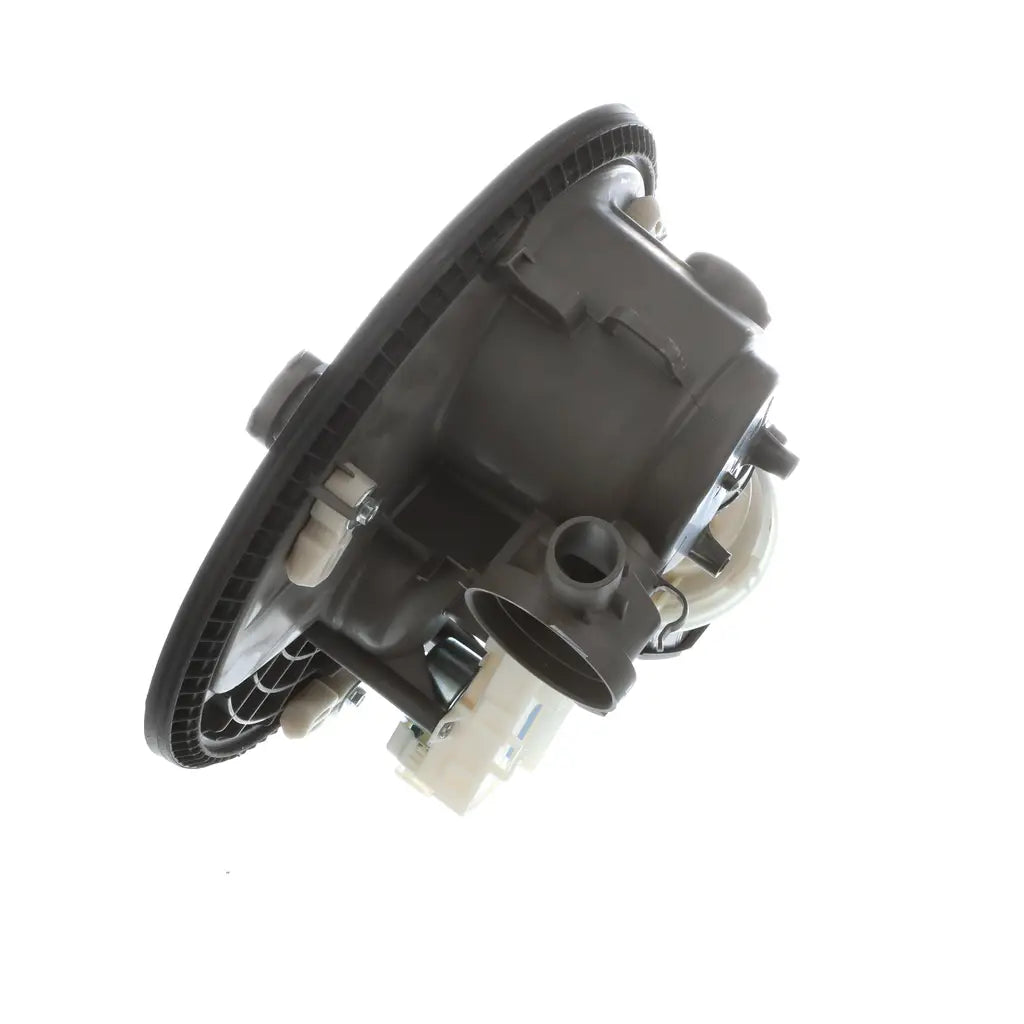

Whirlpool Dishwasher Pump and Motor Assembly W10902326, Replaces W10671873

Genuine Whirlpool dishwasher pump-and-motor assembly, also described as a circulation pump and motor assembly. It moves water from the sump area through the dishwasher spray arms.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dishes are not washing properly.
• Unusual operating noises during the wash portion of a cycle.
• Water leakage associated with the circulation-pump area.

Check Before Replacing

• Confirm the exact dishwasher model uses W10902326 before ordering or servicing; it is listed as the pump-and-motor assembly in the model-specific pump, washarm, and motor diagram.
• During a wash cycle, observe whether the dishwasher fills but dishes remain poorly washed; this can indicate a circulation problem but does not by itself prove the pump-and-motor assembly has failed.
• With electrical power disconnected, inspect the accessible filter/screen and lower spray arm for debris or blockage before attributing poor washing to the pump-and-motor assembly.
• With electrical power disconnected, inspect accessible pump-area wiring and connections for obvious damage or loose connections; do not perform energized electrical testing unless qualified.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM pump-and-motor assembly.
• Circulates water from the dishwasher sump to the spray arms.
• Listed as the pump-and-motor assembly in the applicable pump, washarm, and motor parts diagram.
• Replaces prior Whirlpool part number W10671873.

Installation Notes

• Disconnect electrical power before inspection or service; shut off the dishwasher water supply before opening the water-circulation system.
• Use the exact model's service documentation and parts diagram; W10902326 is located in the pump, washarm, and motor section.
• Do not assume related mounting/sealing items are included: the applicable diagram lists the pump grommet and mounting screw separately.
• After reassembly, check for water leaks during a supervised test cycle before returning the dishwasher to normal use.

Verified Compatible Models

IUD8555DX0, IUD8555DX1, IUD8555DX2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
