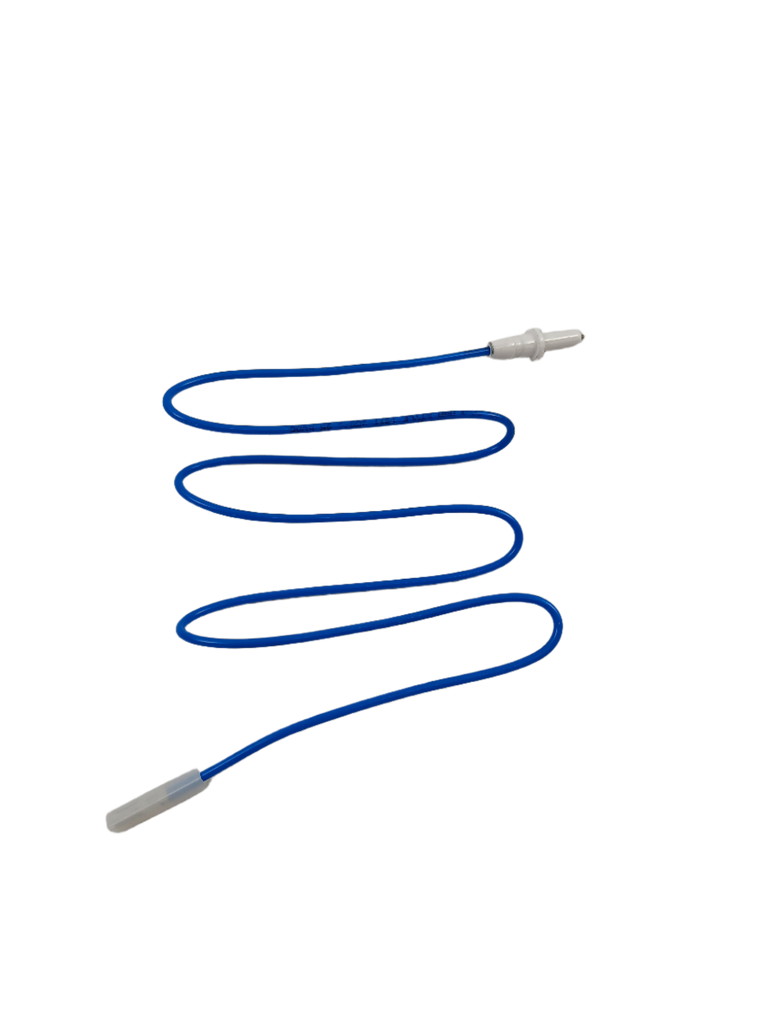

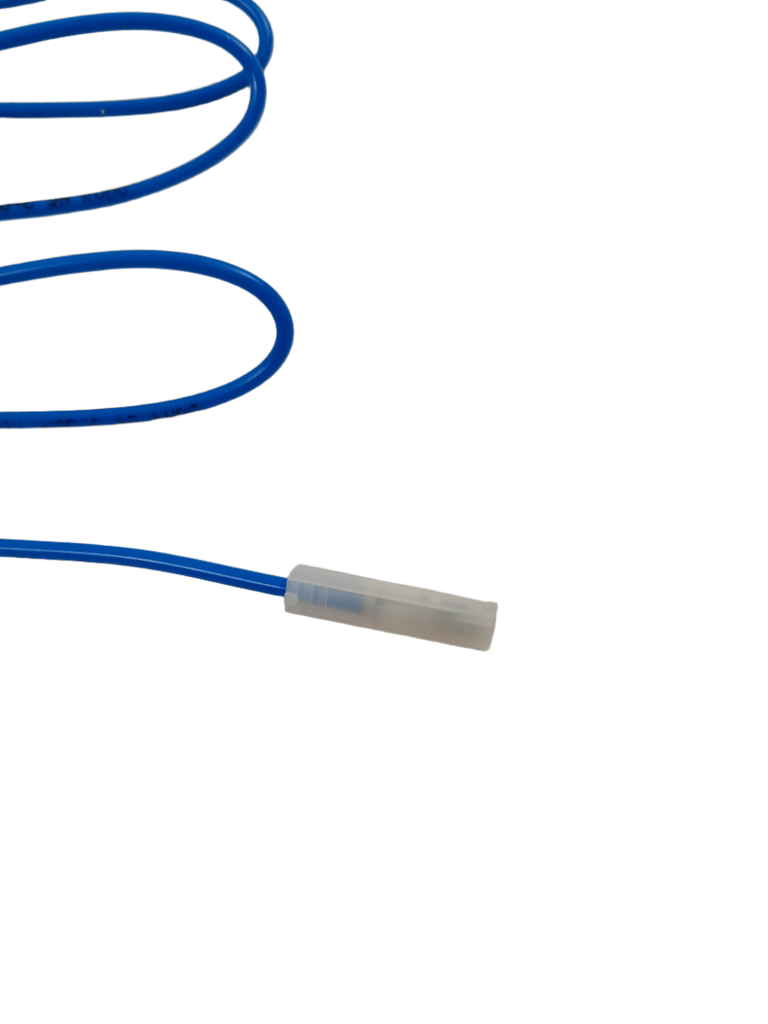

Whirlpool Range Spark electrode and wire, long; also identified as surface burner igniter/surface igniter electrode W11050467, Replaces W10464799

Genuine Whirlpool OEM left-rear surface igniter electrode and wire for gas range surface burners. The part produces the spark that ignites the surface burner.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No visible spark at the left-rear burner electrode
• Weak or intermittent spark with delayed burner ignition
• Clicking continues while the left-rear burner fails to light
• Visible cracking, chipping, or contamination on the electrode insulator or tip

Check Before Replacing

• With the burner controls off, allow the burner area and electrode to cool; inspect the electrode tip and ceramic insulator for cracks, chips, heavy residue, or moisture.
• After cleaning or a spill, ensure the electrode and burner components are completely dry before testing ignition.
• Confirm the burner cap and burner base are seated correctly and centered, and check that burner ports are not obstructed.
• If testing for spark, observe from a safe position without touching the electrode, burner, or other metal parts; stop immediately if gas accumulates or a strong gas odor is present.
• If the electrode appears intact but there is still no spark, the ignition wire, spark module, burner grounding, or gas supply may also require qualified diagnosis.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM spark electrode and long wire assembly
• Specified for the left-rear surface burner position in documented applications
• Also described as a surface burner igniter or surface igniter electrode
• Designed to replace Whirlpool part W10464799

Installation Notes

• Disconnect electrical power and shut off the range gas supply before servicing.
• Allow the cooktop and burner components to cool, and use protective work gloves during service.
• Route and connect the replacement wire as the original assembly was installed; do not allow it to contact hot or moving components.
• Reinstall the electrode and burner components in their original positions, ensuring the electrode is secure and the burner cap/base are properly seated before restoring utilities.
• Verify ignition operation after installation while watching for abnormal sparking or gas odor; discontinue use and obtain qualified service if ignition is not normal.

Verified Compatible Models

664.75123610, 664.75223710, JDS1450DP0, JGS1450DS0, JGS1450FS0, KSDB900ESS0, KSGB900ESS1, KSGB900ESS3, KSGG700EBL0, KSGG700EBL1, KSGG700ESS1, MGS8800FZ0, WEG745H0FH0, YKSDB900ESS2, YKSDB900ESS3

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
