Whirlpool Refrigerator Wire Harness W11084235, Replaces W10391289

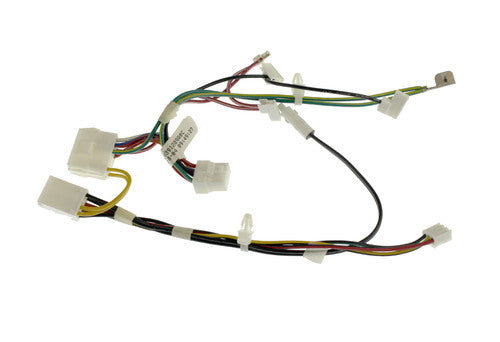

Whirlpool refrigerator wire harness. A model-parts listing identifies it more specifically as a control harness for the refrigerator.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Refrigerator will not start
• Intermittent operation of electrically controlled refrigerator functions
• One or more connected components may not operate when the harness has an open circuit or loose connection

Check Before Replacing

• Disconnect refrigerator power before inspecting the harness.
• Visually inspect the harness, terminals, and connectors for pinched, cut, burned, corroded, or loose wiring.
• Verify that each harness connector is fully seated and matches the original connector location.
• If qualified and equipped with the appliance-specific wiring diagram, check harness continuity with power disconnected; do not use continuity results alone to identify the failed component.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool refrigerator wire harness
• Control harness application identified for the refrigerator
• Supplies power to electrical components
• Replaces Whirlpool part W10391289

Installation Notes

• Disconnect electrical power before beginning installation.
• Photograph or label connector locations and harness routing before removal.
• Transfer the replacement harness using the same connector locations and routing as the original; avoid pinching or sharply bending the wires.
• Ensure connectors are fully seated and that the harness is clear of moving parts and sharp edges before reinstalling panels and restoring power.
• Confirm the exact appliance model and harness configuration before ordering or installing.

Verified Compatible Models

JFC2290REM00, JFC2290REM02, JFC2290REM03, JFC2290REM04, JFC2290REM05, JFC2290REP00, JFC2290REP02, JFC2290REY00, JFC2290RTB00, JFC2290RTB02, JFC2290RTB03, JFC2290VEM8, JFC2290VEP8, JFC2290VPF3, JFC2290VPF4, JFC2290VPF5, JFC2290VPR2, JFC2290VPR3, JFC2290VPR4, JFC2290VPY3, JFC2290VPY4, JFC2290VPY5, JFC2290VTB4, JFC2290VTB5, JFFCF72DKL00, JFFCF72DKL01, JFFCF72DKL04, JFFCF72DKL05, JFFCF72DKL06, JFFCF72DKL07, JFFCF72DKM00, JFFCF72DKM01, KFCO22EVBL4, KFCO22EVBL5, KFCP22EXMP5, KFCS22EVBL4, KFCS22EVBL5, KFCS22EVMS8, KFCS22EVWH4, KFCS22EVWH5, KRFC300ESS06, KRFC302EBS00, KRFC302EBS02, KRFC302EBS06, KRFC302EBS08, KRFC302EPA03, KRFC302ESS03, KRFC302ESS05, KRFC302ESS07, KRFC302EWH00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
