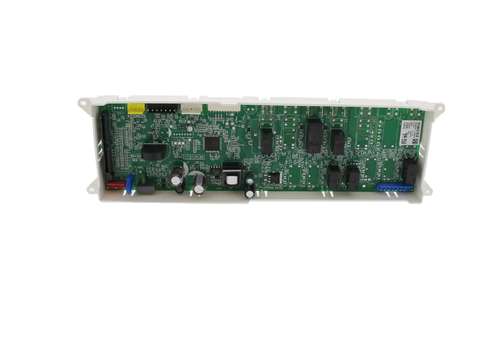

Whirlpool Range Electronic control board W11088878, Replaces W10643264, W10894864, WPW10643264

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Oven will not turn on
• Oven does not heat
• Oven temperature is inaccurate
• Oven heat is insufficient or uneven
• Range control or touchpad does not respond
• Oven broiler may not operate

Check Before Replacing

• Confirm the range has power by checking that the house circuit breaker is on; do not remove covers for live-voltage testing.
• Check the display and control response, and note any stored fault codes using the appliance-specific service information.
• With power disconnected, visually inspect the control board and its wiring/connectors for loose connections, damaged wiring, or obvious heat damage.
• Verify that the oven temperature sensor and heating-element wiring are connected before condemning the control board, because those components can cause similar heating symptoms.
• Do not perform live-voltage measurements unless qualified and using the model-specific technical sheet; otherwise use a qualified appliance technician.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power by unplugging the range or switching off the range circuit breaker before servicing.
• Use work gloves and follow the range’s model-specific service or installation instructions.
• Transfer or reconnect wiring only as shown in the appliance technical documentation; connector placement is part-specific and must not be guessed.
• After installation, restore power and verify the display, controls, oven temperature regulation, and heating operation.
• If electrical troubleshooting or board replacement is outside your skill level, use a qualified appliance technician.

Verified Compatible Models

KFGG500EBL0, KFGG500EBL1, KFGG500EBL2, KFGG500EBS2, KFGG500EBS3, KFGG500EBS4, KFGG500ESS0, KFGG500ESS1, KFGG500ESS2, KFGG500ESS3, KFGG500EWH0, KFGG500EWH1, KFGG500EWH2, KFGG500EWH3, KFGG500EWH4

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
