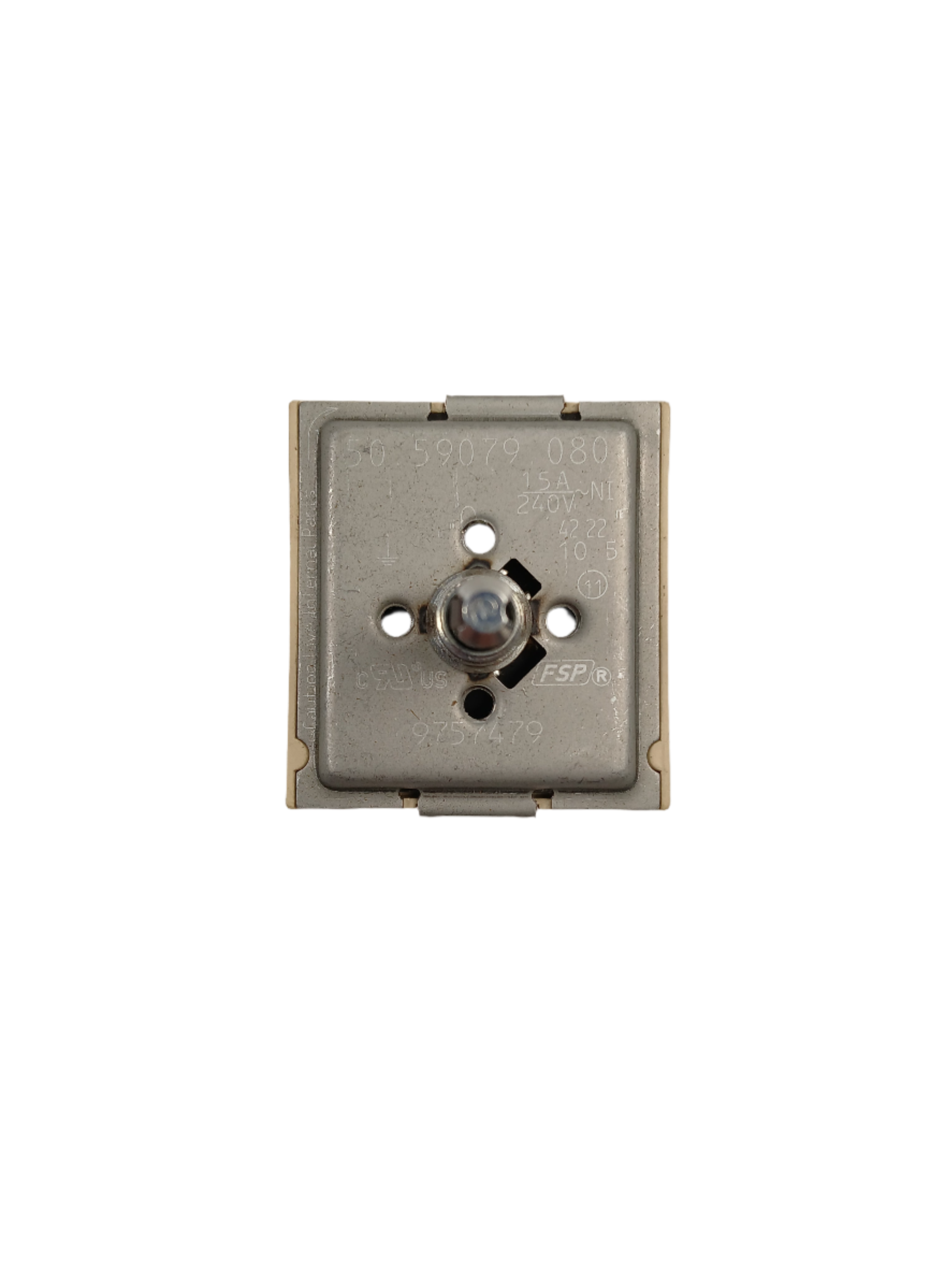

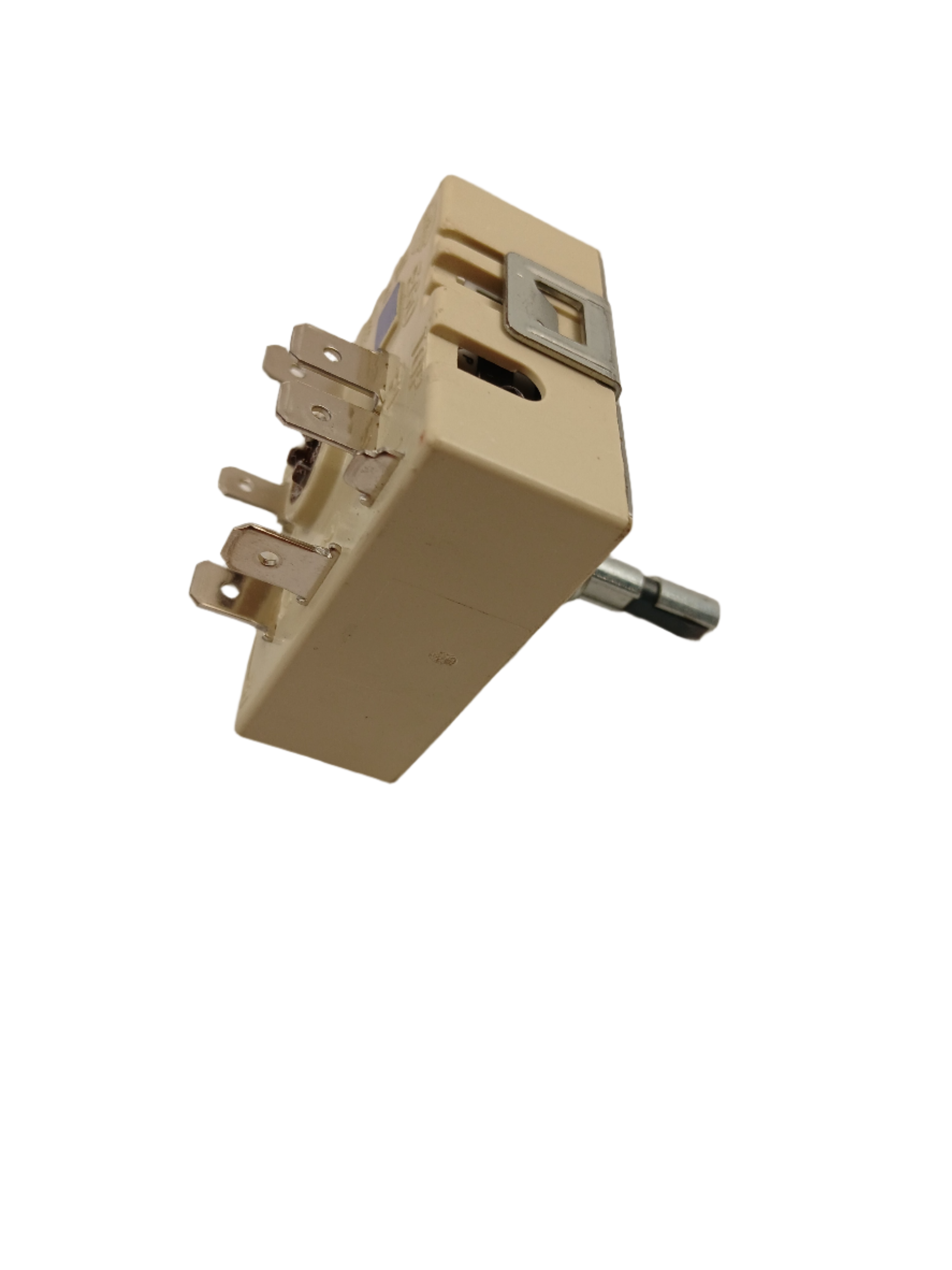

Whirlpool Range Surface Element Switch / Infinite Switch W11233068, Replaces 9757479

Whirlpool genuine OEM infinite switch that regulates heat supplied to a range surface burner.

Is This the Right Part?

Common Symptoms

• Surface burner does not heat
• Surface burner does not turn on
• Surface burner does not respond correctly to the control setting

Check Before Replacing

• Confirm the appliance model number before ordering.
• With power disconnected, compare the existing switch terminals, connector arrangement, and part markings with W11233068.
• If the surface element is not heating, verify that the problem is not caused by the element, wiring, or another control component; the switch symptom is not conclusive by itself.

Pro Tip

Part Details

Key Features

• 13 amps
• 240 volts
• Whirlpool genuine OEM part
• Switch-inf designation in Whirlpool parts databases

Installation Notes

• Disconnect electrical power before servicing or installing the switch.
• Use the appliance model number to confirm compatibility before installation.
• Do not rely on appearance alone; verify terminal and connector configuration.

Verified Compatible Models

66495272502, 66495273502, 66495274502, 66495279502, 66595272500, 66595272501, 66595273500, 66595273501, 66595274500, 66595274501, 66595279500, 66595279501

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
