Whirlpool Corporation Washer outer drain hose W11244231, Replaces W10221546, W10769870, W10821090, W10826733, W11199768, W11199820, W11203364, W11249137

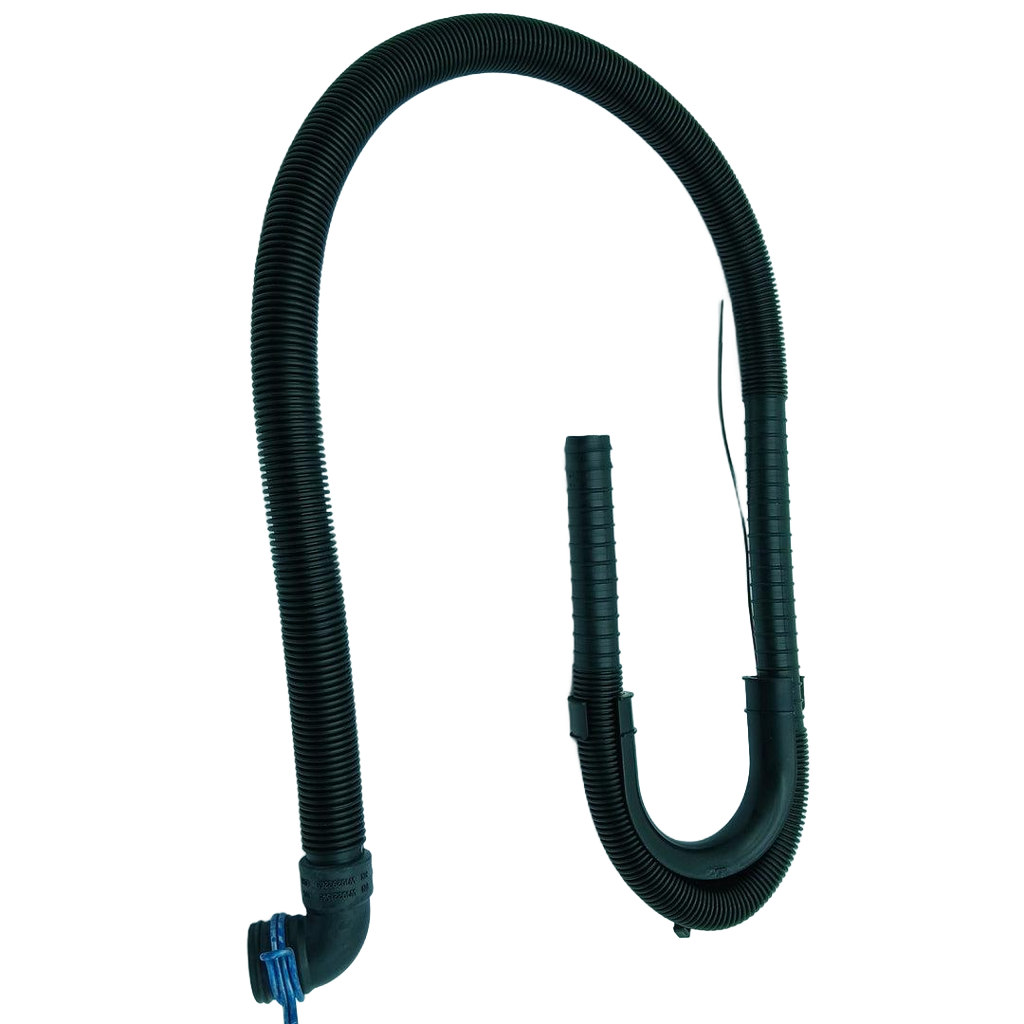

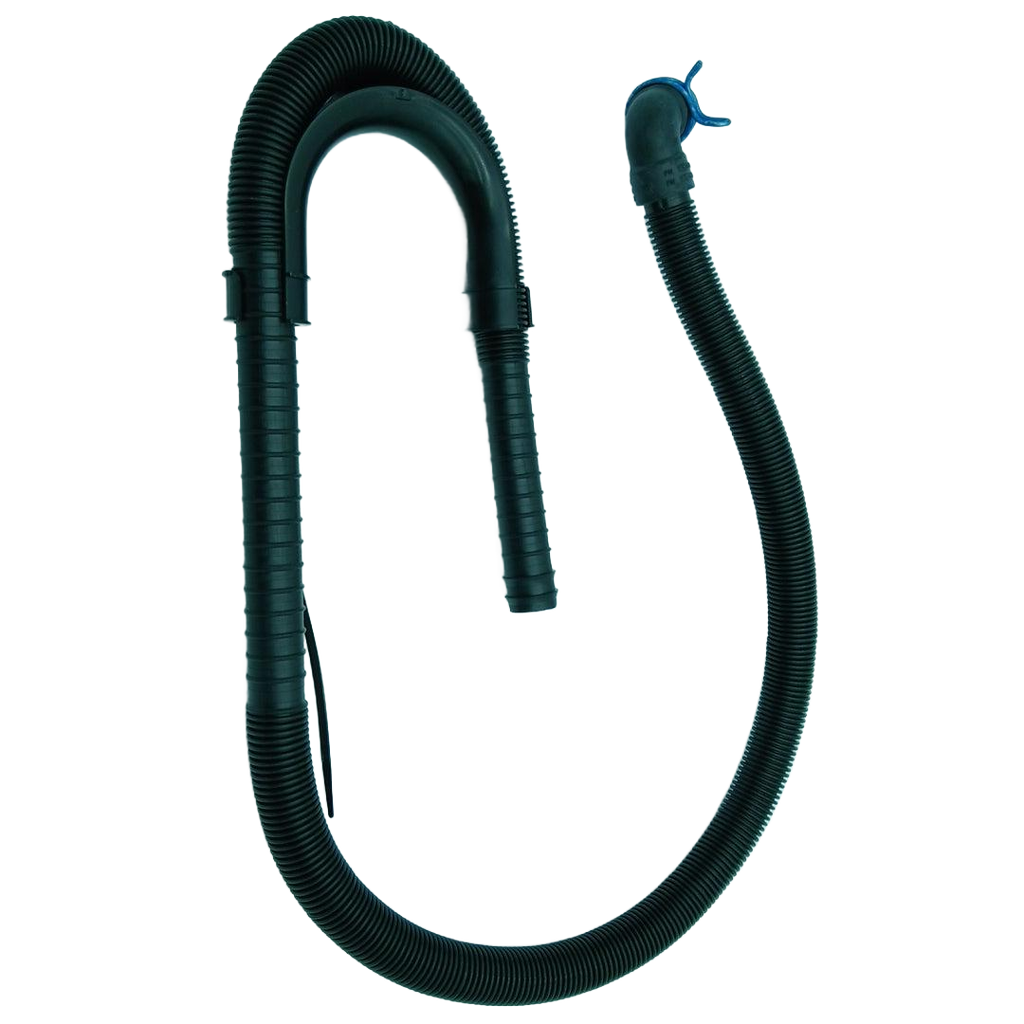

Flexible outer drain hose that carries used water from the washer tub to the household standpipe. The kit is approximately 4 feet long and includes a clamp.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible water leak near the hose or hose connection
• Washer drains slowly when the hose is kinked or obstructed
• Washer does not drain when the hose is blocked or improperly routed
• Washer repeatedly fills and drains, or shows siphoning-related behavior when the hose is inserted or elevated incorrectly

Check Before Replacing

• Unplug the washer before inspecting the hose.
• Visually inspect the accessible hose for kinks, splits, soft spots, abrasion, or water staining.
• Check that the hose is fully seated at its washer connection and that the included or existing clamp is secure.
• Confirm the hose is not clogged and is not inserted too deeply into the standpipe or laundry tub.
• Run a brief cycle only after rechecking connections, and observe for leakage without placing hands near moving parts.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool washer drain hose kit
• Approximately 4 feet long
• Includes a clamp
• Designed to route washer discharge water to a household drain

Installation Notes

• Disconnect electrical power before installation and follow the washer’s model-specific service or installation instructions.
• Expect residual water when disconnecting the old hose; protect the floor with an appropriate container or towels.
• Attach the replacement hose fully to the washer connection and secure it with the supplied or properly retained clamp.
• Route the hose without sharp kinks or obstruction, and use the washer’s drain-hose form or retention method where specified.
• Verify the hose is not inserted too far into the standpipe or laundry tub, then check connections for leaks during a short test.

Verified Compatible Models

1CWTW4740YQ0, 4GMVWC300YW1, 4KNTW3300JW2, 7MMVWC300YW1, 7MMVWX655EW0, 7MWTW1701DQ0, ATW4675YQ1, CAE2763CQ0, MVW6230HC3, MVW6230RHW3, MVWB765FW4, WTW4816FW1, WTW4850BW1, WTW8500DW6, ZAW47115GW0, WTW4915EW1, WTW5000DW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
