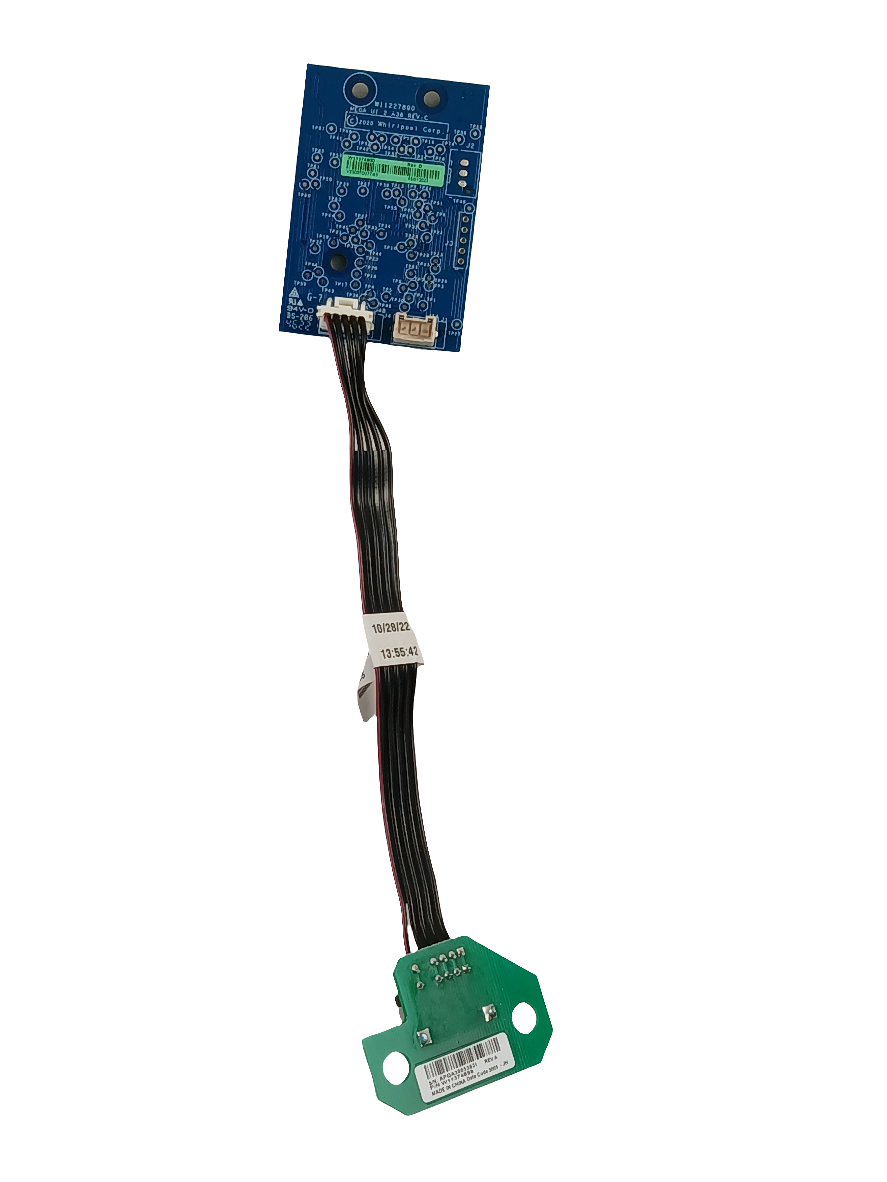

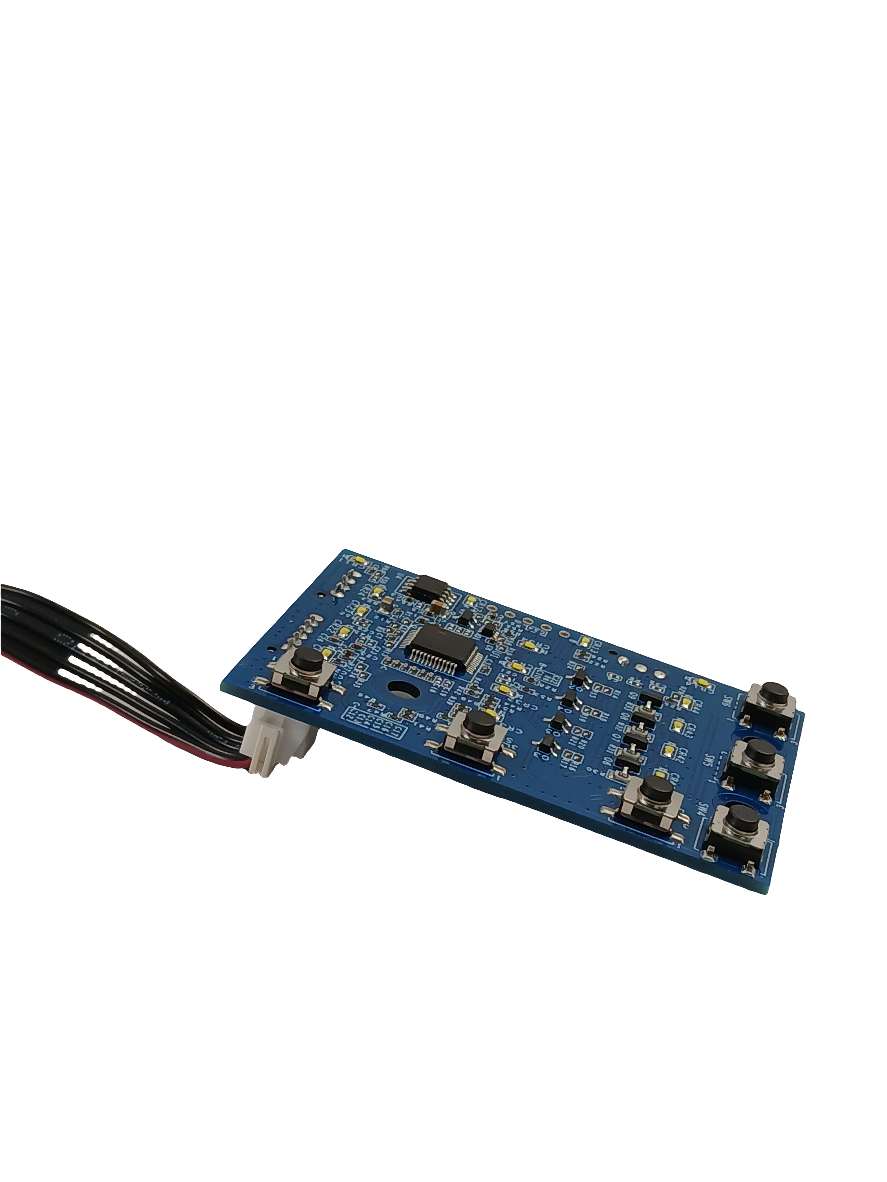

Whirlpool Washer User Control and Display Board (Encoder Control and Display Assembly) W11481116, Replaces W11374900

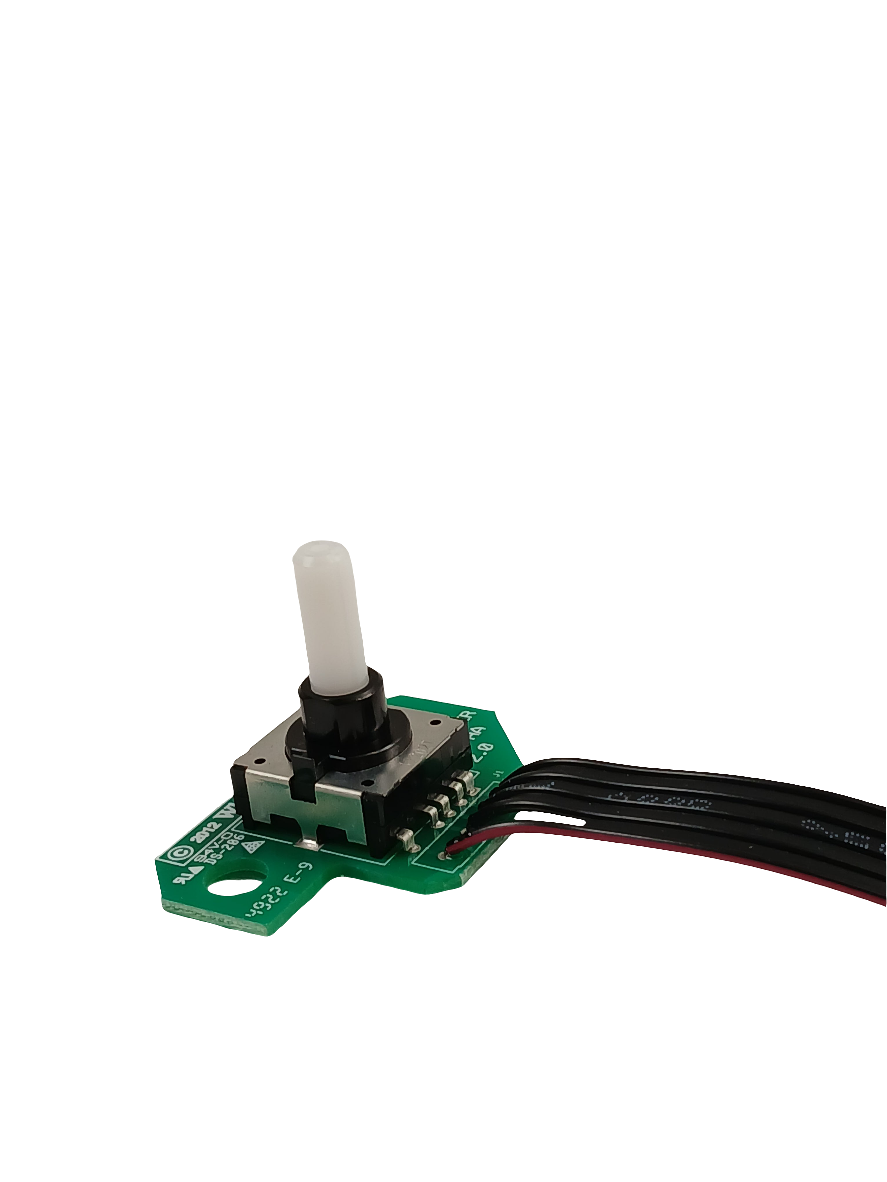

Genuine Whirlpool washer encoder control and display assembly. It detects the control-dial position and sends control-setting signals to the washer’s electronic control system.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer will not start when the control is otherwise powered.
• Some control-panel buttons or selections do not respond while others work.
• Display or indicator lights do not operate correctly.
• Control-dial turns do not register or the selected setting does not appear correctly on the HMI.

Check Before Replacing

• Confirm the washer has power and check whether the control display or indicators illuminate before condemning the assembly.
• With power disconnected, visually inspect that the HMI harness, main-control connector, and ribbon-cable connections are fully seated and undamaged.
• If the washer supports service diagnostics, run the model-specific Key, LED, Display, and Encoder tests to determine whether inputs and dial turns register correctly.
• If connectors and tests appear normal, follow the model-specific service documentation to verify HMI supply voltage and harness continuity; do not probe energized circuits unless qualified to do so.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM user control and display board.
• Encoder control and display assembly for selected Whirlpool-family top-load washers.
• Combines user-interface/display functions with control-dial position sensing.
• Replaces Whirlpool part W11374900, as documented in the trusted archive and current retailer listings.

Installation Notes

• Disconnect electrical power before accessing or replacing the control assembly.
• Verify the complete washer model number before installation because the assembly is model-specific.
• Keep connectors and ribbon cables fully seated during reassembly; inspect them for damage before reconnecting.
• After installation, restore power and use the washer’s model-specific diagnostics or normal controls to confirm key, display, and encoder operation.
• Use appropriate hand protection when accessing the console and follow the appliance’s service documentation for panel removal.

Verified Compatible Models

CAW45125LW0, MVW6200KW0, MVW6200KW1, MVW6200KW2, WTW5010LW0, WTW5015LW0, WTW5057LW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
