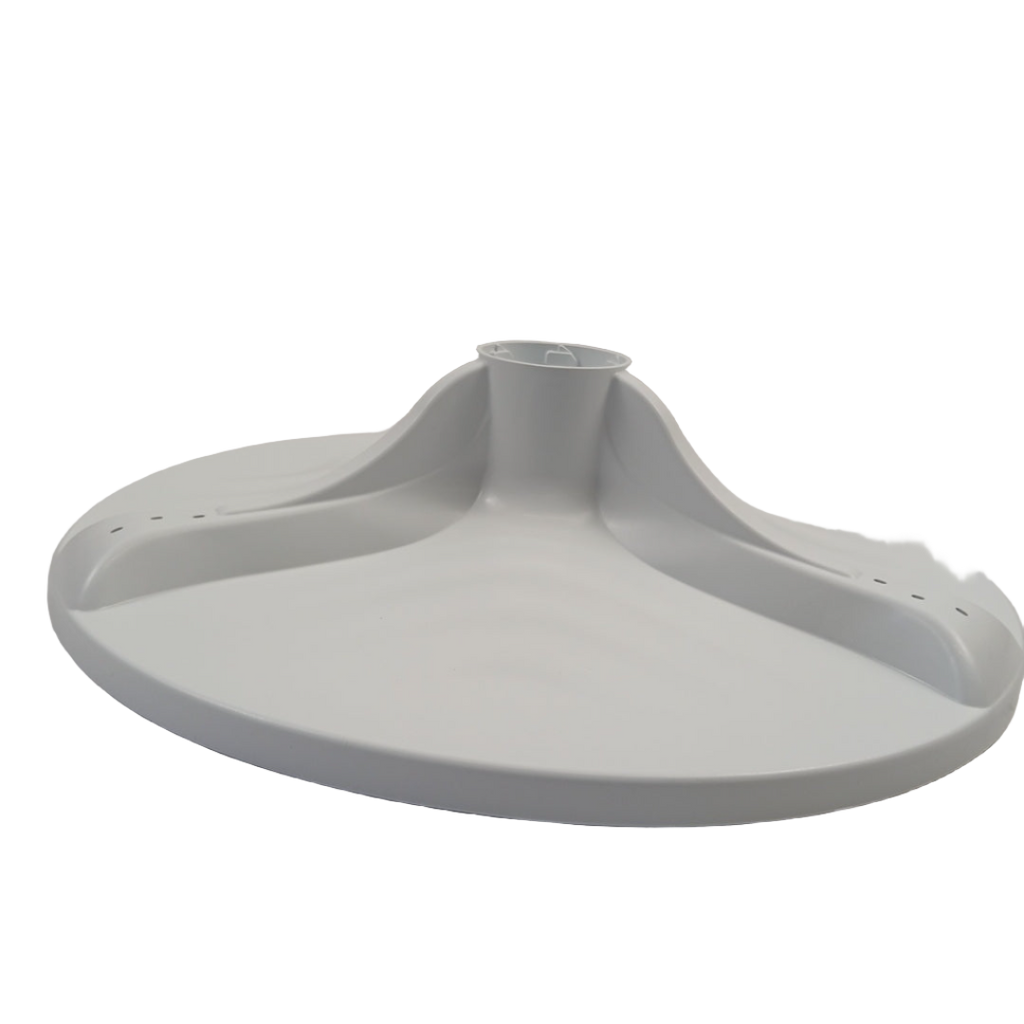

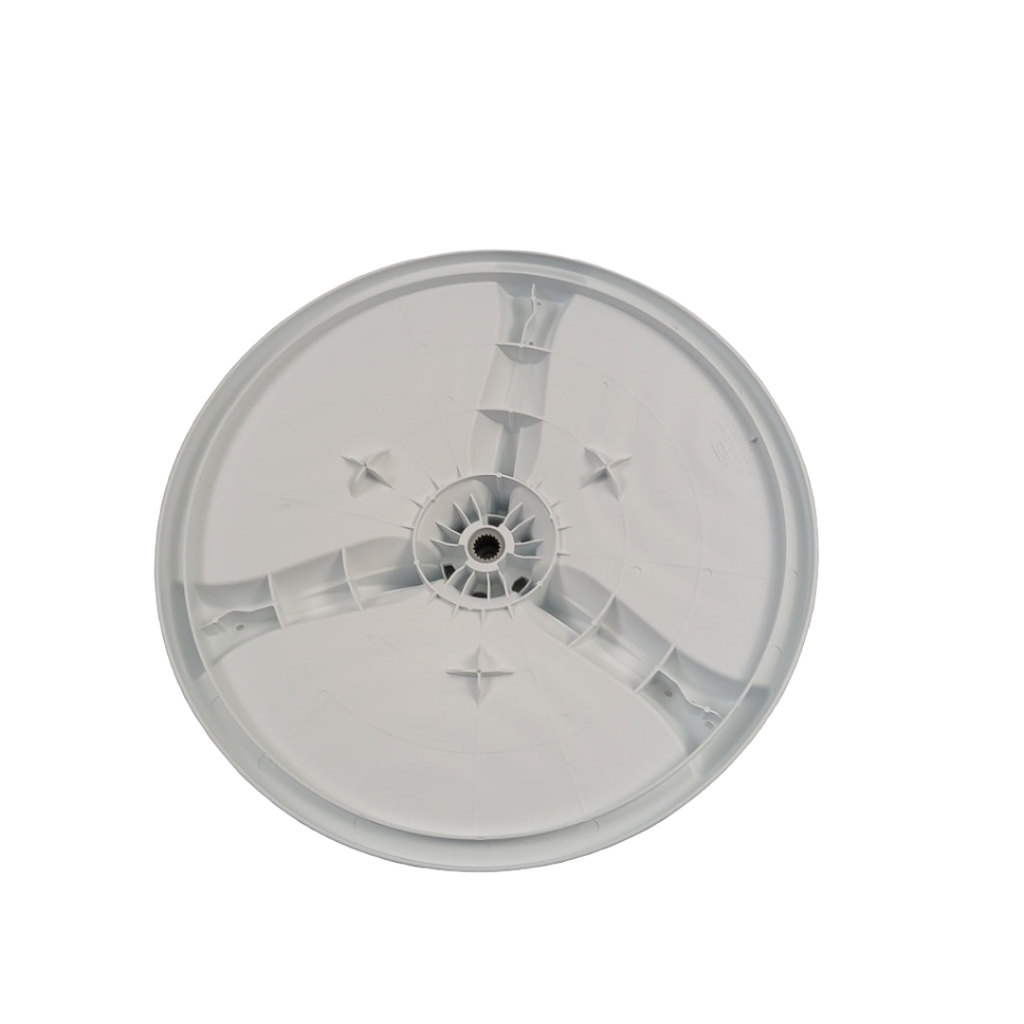

The washplate (also called the impeller) is the low-profile disc at the bottom of the wash basket on Whirlpool HE top-load washers. Its oscillating fins create the water circulation and tumbling action that cleans clothes. When the fins break, the drive hub strips, or the plate cracks, clothes barely move during the wash cycle, come out still dirty or tangled, and you may hear grinding or scraping noises as the damaged plate contacts the basket. The W11510461 is the OEM washplate for Whirlpool, Maytag, Amana, Roper, Crosley, and Kenmore HE top-load washers, directly replacing W11308900, W10752283, and W10610941.
⚠️ Symptoms This Part Fixes
- Clothes coming out dirty or with detergent residue after a full cycle
- Clothes barely moving during the wash cycle — poor tumbling action
- Clothes coming out tangled or twisted
- Grinding, scraping, or clicking noise from the bottom of the wash basket
- Visible broken or missing fins on the washplate
- Washplate wobbling or not sitting flat in the basket
- Stripped drive hub — washplate spins freely without engaging
✓ Part Details
- OEM Part Number: W11510461
- Replaces: W11308900, W10752283, W10610941
- Type: Washplate (impeller) — low-profile oscillating disc for HE top-load washers
- Compatible Brands: Whirlpool, Maytag, Amana, Roper, Crosley, Kenmore (Whirlpool-built)
- Application: HE (high-efficiency) top-load impeller-style washers
- Ships From: Canada
💡 Pro Tip — Inspect the Drive Hub and Basket Hub While the Washplate Is Off:
Once the washplate is removed, inspect the drive hub splines on both the washplate and the basket hub shaft. Stripped splines are the most common reason a washplate fails — and if the basket hub shaft is also stripped, a new washplate alone won’t fix the problem. Spin the shaft by hand and check for wobble or play. If the shaft moves loosely, the basket hub assembly needs replacement at the same time. Catching this during the same repair saves your customer a second service call and another disassembly.
Once the washplate is removed, inspect the drive hub splines on both the washplate and the basket hub shaft. Stripped splines are the most common reason a washplate fails — and if the basket hub shaft is also stripped, a new washplate alone won’t fix the problem. Spin the shaft by hand and check for wobble or play. If the shaft moves loosely, the basket hub assembly needs replacement at the same time. Catching this during the same repair saves your customer a second service call and another disassembly.
⚙️ Installation Notes
- Skill Level: Beginner to Intermediate — basic tools required, 15–30 minute repair
- First Step: Unplug the washer before beginning any work
- Access: The washplate is accessed directly from inside the wash basket — no panel removal required on most models
- Removal: Remove the fabric softener dispenser (if present) from the centre of the washplate, then unscrew the centre bolt (typically 7/16” or T-20 Torx) and lift the washplate straight up
- Inspection: Check the drive hub splines and basket hub shaft for wear before installing the new washplate
- Installation: Align the new washplate over the drive hub, press down firmly until seated, and reinstall the centre bolt — do not overtighten
- After Install: Run a short wash cycle and confirm proper tumbling action before considering the repair complete
✓ Compatible Models
Fits Whirlpool, Maytag, Amana, Roper, Crosley, and Kenmore (Whirlpool-built) HE top-load impeller washers including WTW8127LC0 and WTW8127LW0. Don’t see your model? Contact us and we’ll confirm compatibility before you order.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
