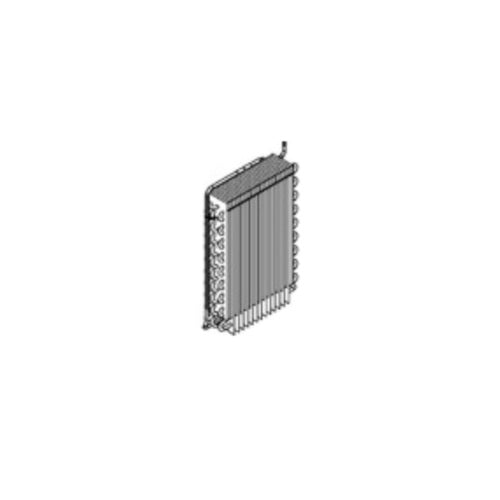

Whirlpool Refrigerator Evaporator W11546605, Replaces W11357917

Genuine Whirlpool OEM refrigerator evaporator for the sealed refrigerant system; it functions as the heat exchanger that cools the unit.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Inconsistent cooling
• Warm freezer compartment
• Excessive or abnormal ice buildup around the evaporator
• Poor or incomplete evaporator frost pattern
• Evidence of a sealed-system refrigerant leak, such as oil residue near the evaporator tubing

Check Before Replacing

• Confirm the refrigerator model number and compare the installed evaporator with the W11546605 parts listing before ordering.
• With the refrigerator safely powered off, visually inspect the evaporator area for abnormal ice accumulation, physical damage, or oily residue; do not puncture, bend, or scrape the tubing.
• Observe the evaporator frost pattern during normal operation only if the appliance can be inspected safely without disturbing sealed-system components; a poor frost pattern can have causes other than the evaporator.
• Have a qualified sealed-system technician evaluate refrigerant charge, system pressures, compressor operation, and leak evidence before condemning the evaporator.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM evaporator assembly
• Refrigerator sealed-system component
• Functions as the heat exchanger that cools the unit
• Whirlpool manufacturer part number W11546605
• Replaces Whirlpool part W11357917

Installation Notes

• Installation requires opening the sealed refrigerant system and should be performed by a qualified refrigeration or appliance technician.
• The repair involves recovering and recharging refrigerant after sealed-system work.
• Applicable Lokring fittings or related sealed-system parts may need to be ordered with the evaporator; confirm requirements for the specific refrigerator model.
• Follow the appliance-specific service documentation and refrigerant-handling requirements; do not cut or braze sealed-system tubing without appropriate training and equipment.

Verified Compatible Models

8WRS22SNHW02, 10651783416, ASI2175GRB07, ASI2175GRB09, ASI2175GRB10, ASI2175GRS10, ASI2175GRW07, ASI2175GRW08, ASI2175GRW09, KRSC336RPS00, KRSC536RPS00, KRSC700HBS04, KRSC700HBS05, KRSC700HPS06, KRSF705HBS00, KRSF705HBS04, KRSF705HPS00, MSC21C6MFZ05, WRS311SDHM0A, WRS311SDHM08, WRS311SDHM09, WRS311SDHM11, WRS311SDHT09, WRS311SDHT10, WRS312SNHB07, WRS312SNHM06, WRS312SNHM07, WRS312SNHM08, WRS312SNHW05, WRS312SNHW07, WRS321SDHB10, WRS321SDHB11, WRS321SDHV08, WRS321SDHV10, WRS321SDHV11, WRS321SDHW10, WRS321SDHW11, WRS321SDHZ08, WRS331SDHM08, WRS331SDHW07, WRS526SIAE00, WRS526SIAH00, WRS571CIHB04, WRS571CIHB05, WRS571CIHW04, WRS571CIHW05, WRS571CIHZ04, WRSC5536RV00, WRSC5536RZ00, WRSC6536RZ00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
