Whirlpool Refrigerator LED Module Service Kit, 3-piece LED light module kit W11632139

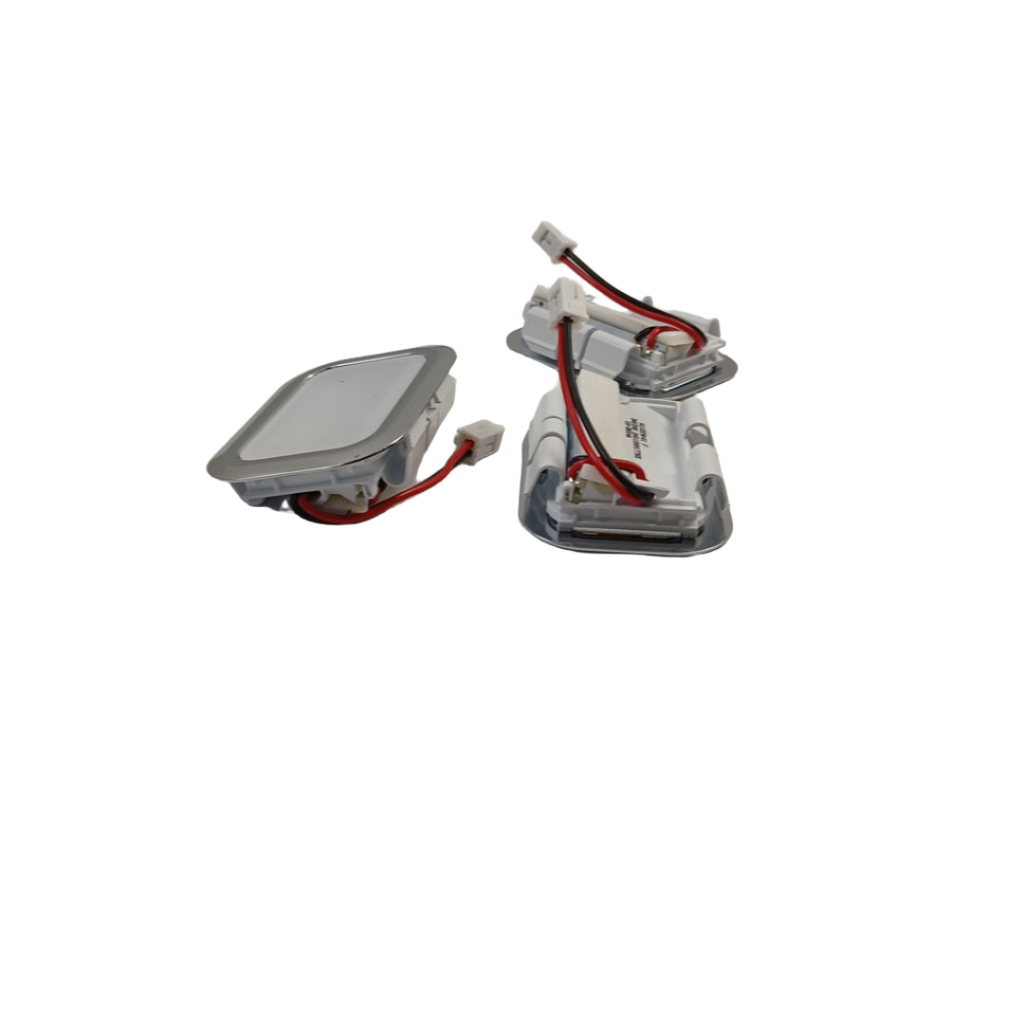

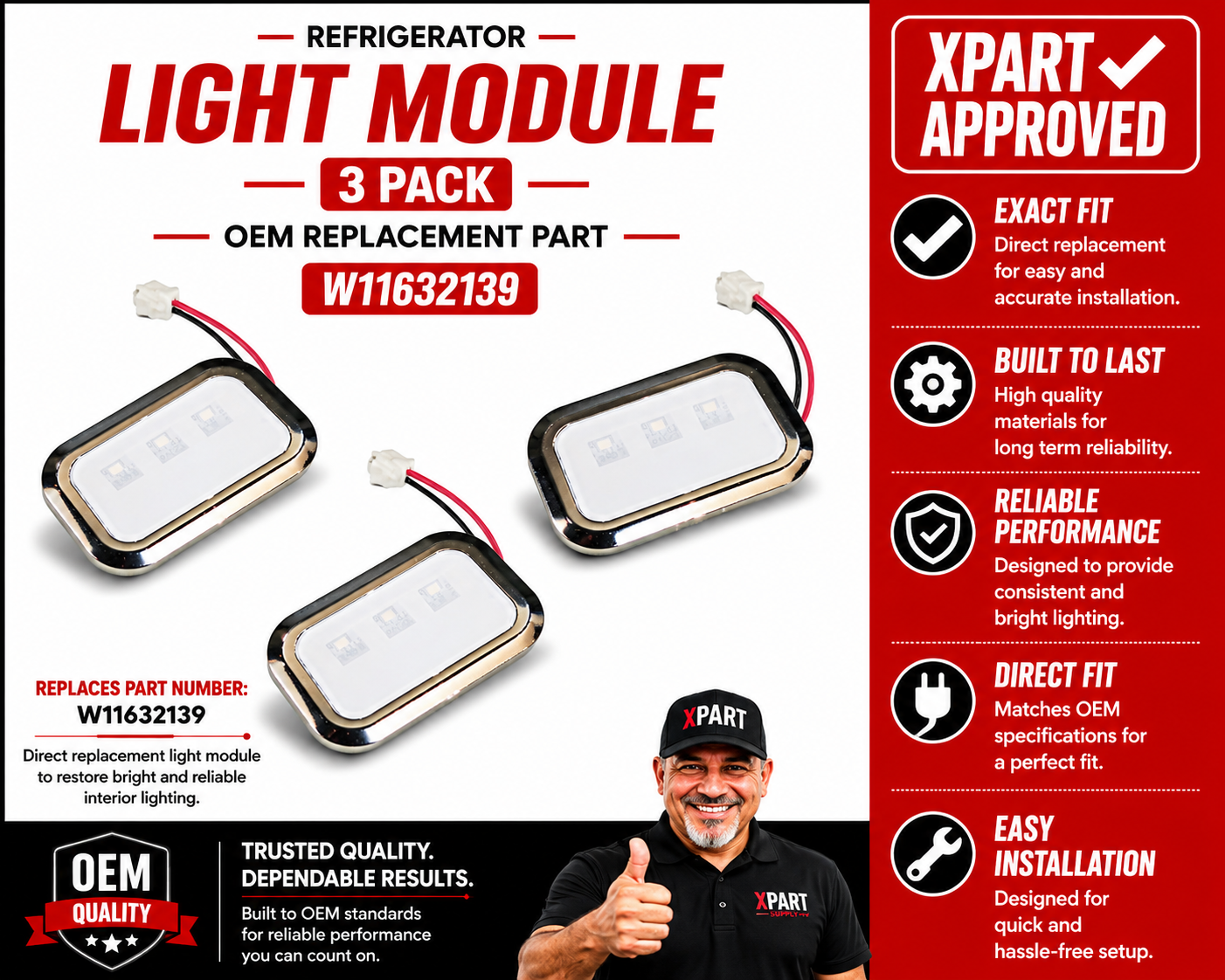

Genuine Whirlpool OEM three-piece LED module service kit for refrigerator interior lighting. Whirlpool's service pointer identifies W11632139 as the replacement multipoint LED kit for specified built-in refrigerators affected by premature single-point LED failures; each kit contains three LEDs.

Is This the Right Part?

Common Symptoms

• One or more interior LED lights fail to illuminate.
• A failed light causes dimming or loss of illumination across connected refrigerator lighting.
• Interior lighting may fail prematurely after exposure to moisture, electrical stress, temperature changes, mechanical stress, or heat-cycle stress.
• Replacement lights may appear different in brightness, color temperature, or illumination pattern from the original LEDs.

Check Before Replacing

• With the refrigerator safely powered, check whether the affected LED module illuminates when the refrigerator door is opened.
• Check the applicable door switch operation because the switch controls the interior-lighting circuit.
• After disconnecting power, inspect that the wiring connections at the LED modules are fully seated and free of visible contamination or moisture.
• Verify that power is reaching the lighting circuit before concluding that the LED module has failed.
• If multiple lights are affected, check the lighting power supply and wiring before replacing modules.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM LED module service kit.
• Three-piece kit; each kit contains three LED modules.
• Multipoint LED design intended as a direct replacement for original single-point LEDs.
• Improved illumination pattern, color temperature, and brightness compared with the original lighting design.
• Designed for specified Whirlpool-family built-in refrigerator lighting systems.

Installation Notes

• Disconnect electrical power before servicing and restore power only after the refrigerator is reassembled.
• Use the model-specific Whirlpool installation or service instructions when accessing the LED modules.
• Replace all original single-point LEDs specified by the applicable service procedure; Whirlpool's service pointer states that four kits may be required for a unit with twelve lights.
• Handle the LED modules and wiring carefully, and confirm that all light-module connections are secure before operation.
• Do not assume a failed LED module is the cause until power, the door switch, and wiring connections have been checked.

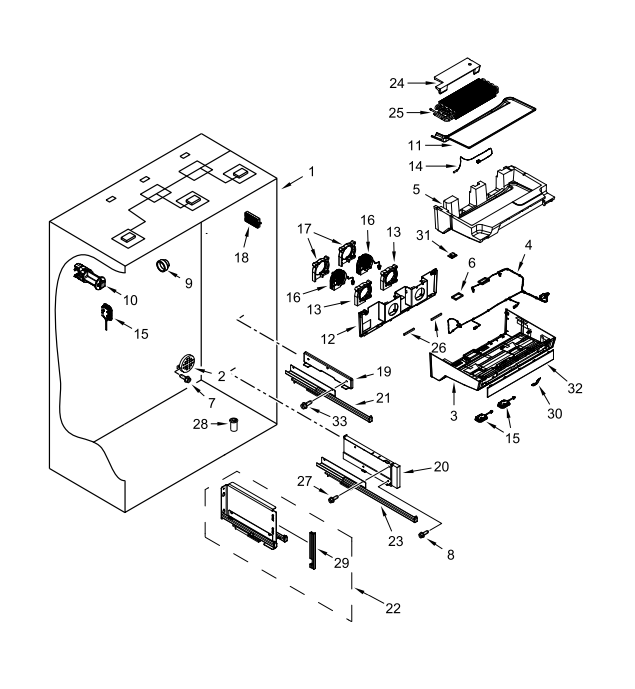

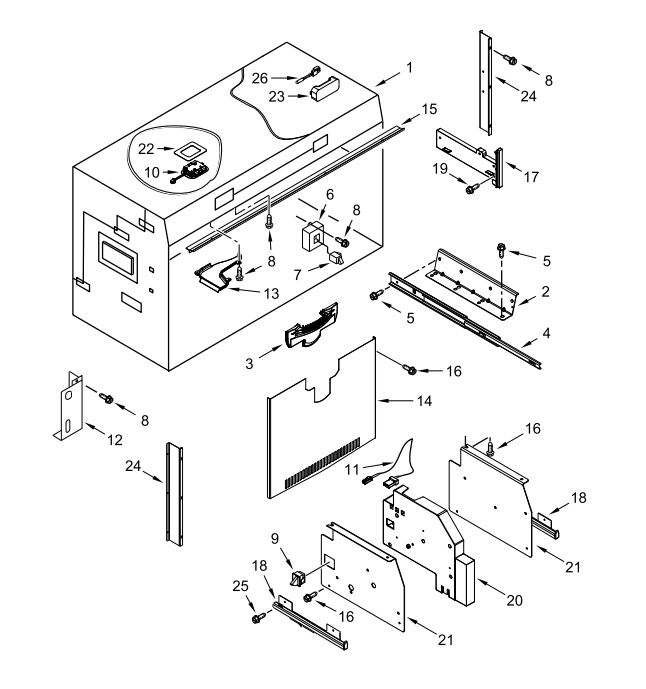

Verified Compatible Models

JB36NXFXLE00, JB36NXFXLE01, JB36NXFXRE00, JB36NXFXRE01, JF36NXFXDE00, JF36NXFXDE01, JF42NXFXDE00, JF42NXFXDE01, JF42NXFXDE02, JS42NXFXDE00, JS42NXFXDE01, JS42PPDUDE00, JS42PPDUDE01, JS42SSDUDE00, JS42SSDUDE01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
