Whirlpool Refrigerator LED Module Service Kit, Chrome, 12 LEDs W11683242

XPart Number XP10009346
$299.30
$359.16
Available by special order
Buying Options: OEM x12
Condition: New

Choose an available buying option.
Equivalent Parts Cross-reference listings may have additional stock Check Stock →
Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →

Frequently Bought Together
Equivalent PartsCross-reference listings may have additional stockCheck Stock →
REFRIGERATOR INTERIOR LIGHT DOES NOT ILLUMINATE

Whirlpool Refrigerator LED Module Service Kit, Chrome, 12 LEDs W11683242, Fixes Refrigerator interior light does not illuminate

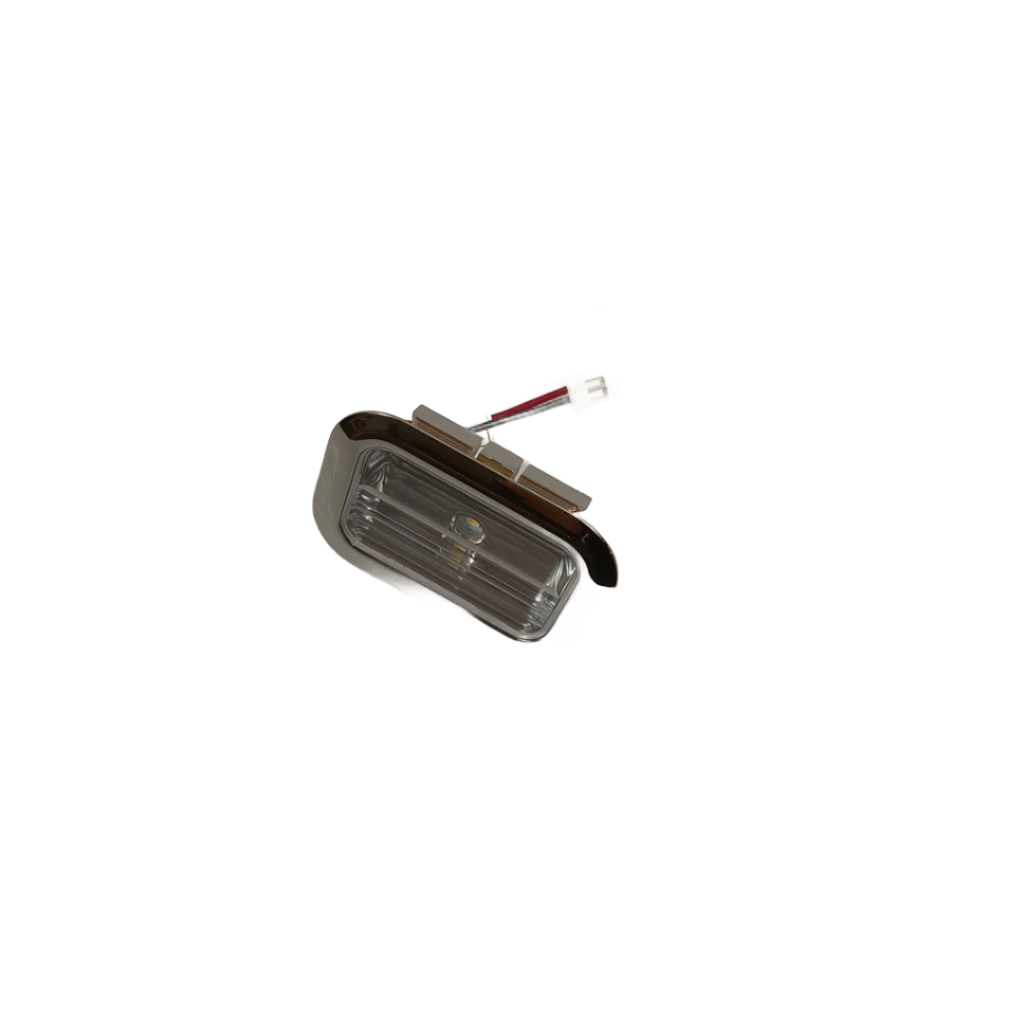

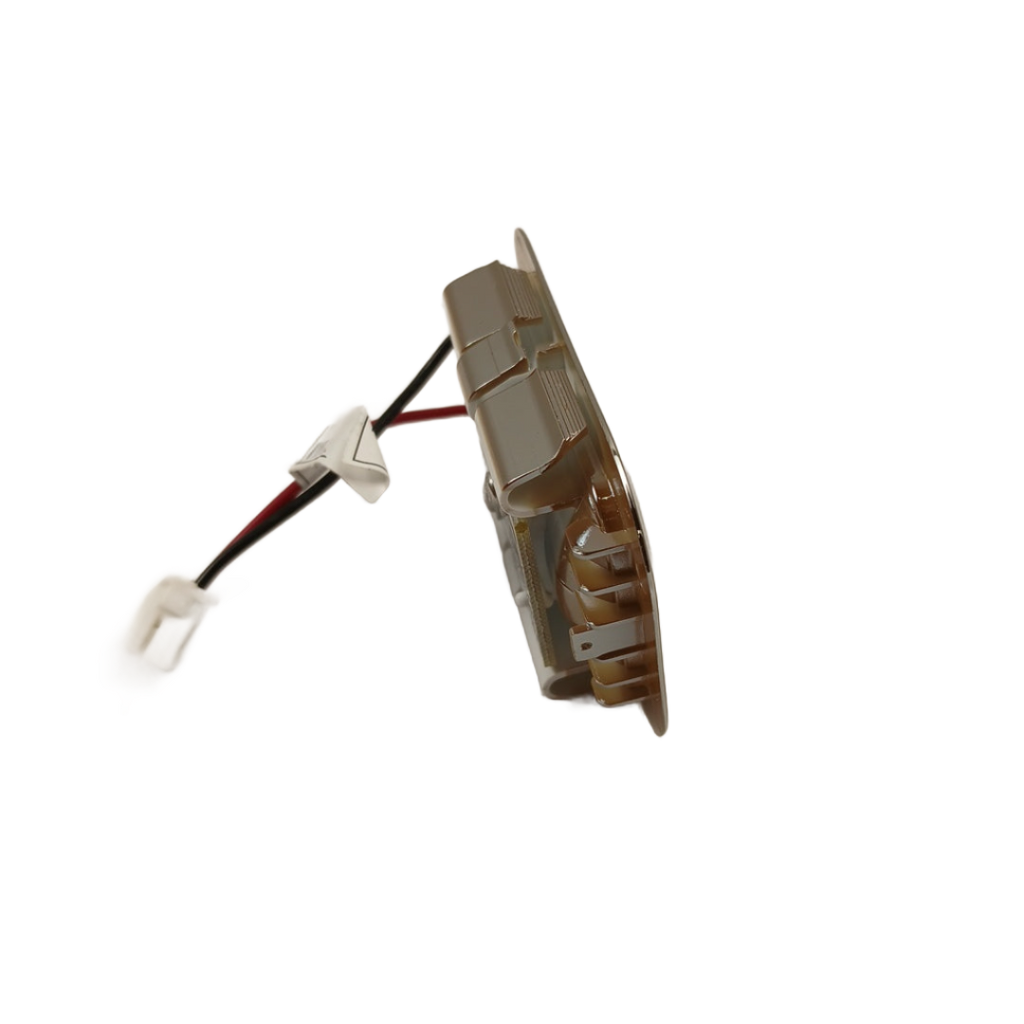

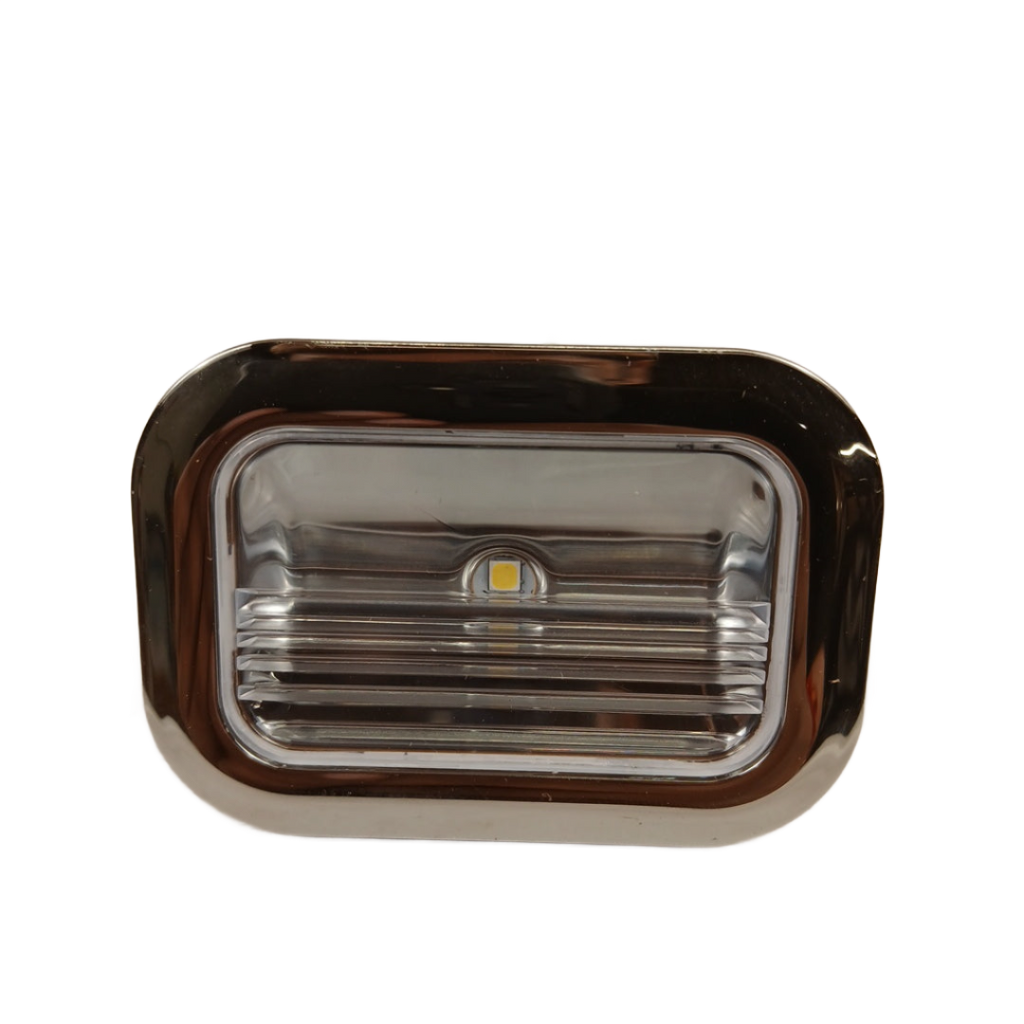

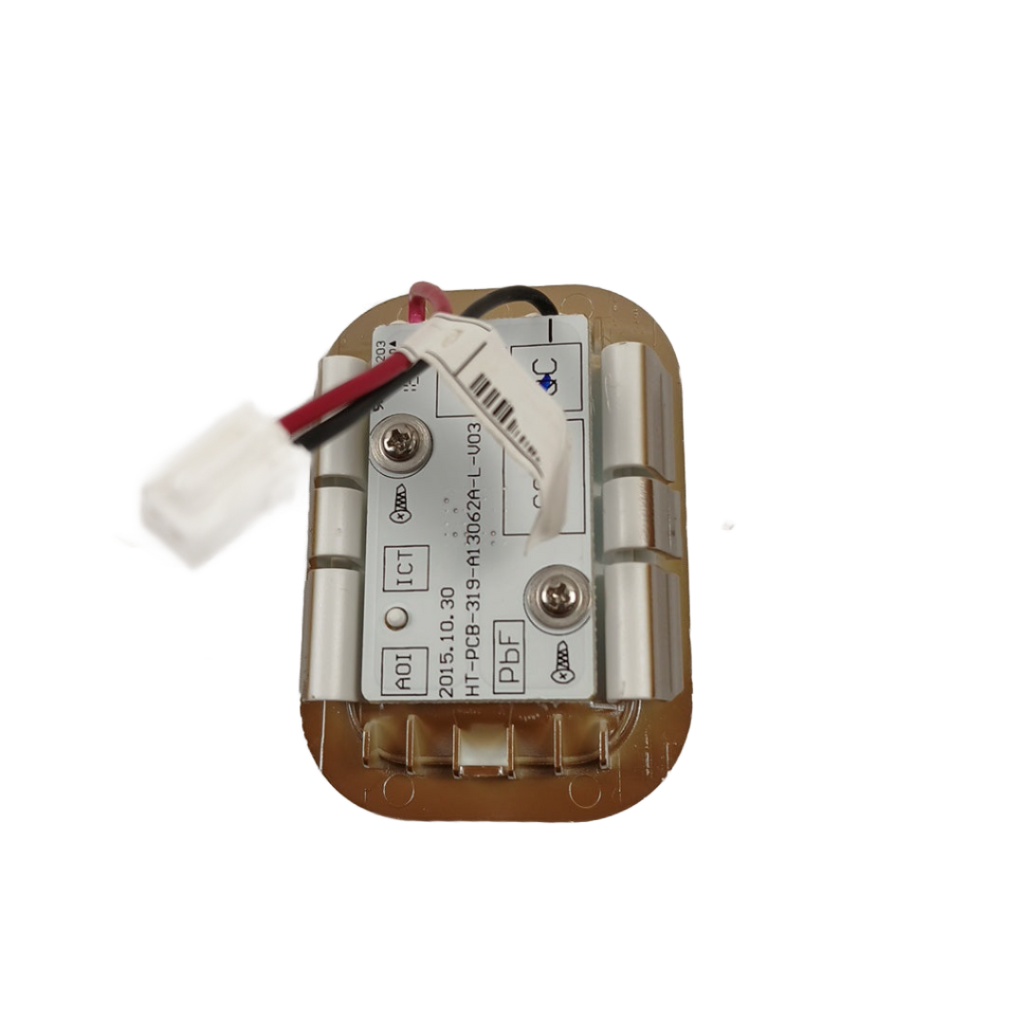

Whirlpool OEM refrigerator LED module service kit containing twelve chrome LED light modules for illuminating refrigerator or freezer interiors.

Part W11683242Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.

Is This the Right Part?

Part NumberW11683242
ManufacturerWhirlpool
Appliance TypeRefrigerator
Part TypeLED Module Service Kit, Chrome, 12 LEDs

✅ Cross Reference Information

Current Part NumberW11683242

Common Symptoms

  • Interior refrigerator or freezer light is not working
  • Interior LED lighting flickers or fails to illuminate

Check Before Replacing

  • Verify that the appliance is receiving power and that the light remains inoperative.
  • If safely accessible, check for voltage at the LED module connector; voltage present with no illumination supports a defective LED module, but does not by itself exclude wiring or control issues.

Pro Tip

This is an updated kit that may require replacement of all LED light assemblies in the appliance.

Part Details

Part NumberW11683242
Part TypeLED Module Service Kit, Chrome, 12 LEDs
ManufacturerWhirlpool
Appliance TypeRefrigerator
Primary FunctionProvides interior lighting in compatible refrigerators and freezers.

Installation Notes

  • Disconnect electrical power before servicing the refrigerator.
  • Confirm the complete appliance model number before ordering; compatibility is model-specific.
  • The updated kit may require replacement of all LED light assemblies in the appliance.

Verified Compatible Models

Fitment reminder: Verified compatibility is maintained by the XPart Model Hub Network. Match the complete appliance model number before ordering.
