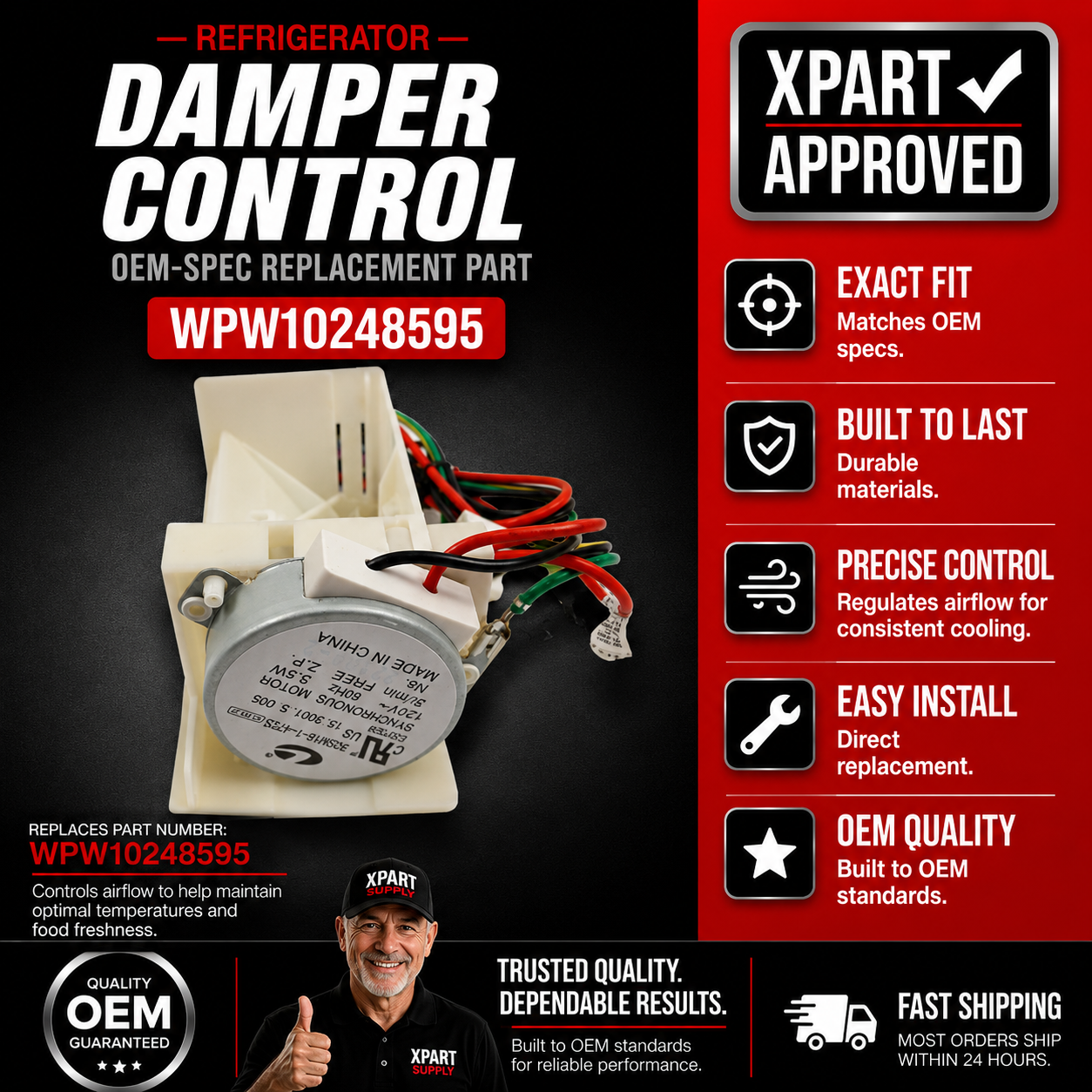

Whirlpool Corporation Refrigerator Damper Control Assembly WPW10248595

OEM air damper control assembly that regulates airflow between refrigerator compartments and may address a refrigerator that is warm while the freezer remains cold.

Is This the Right Part?

Common Symptoms

• Fresh-food compartment temperature is too warm or not cold enough while freezer temperature is normal.
• Fresh-food compartment may become too cold if the damper remains open.
• Restricted or absent airflow from the damper outlet despite a properly cold freezer.
• Damper motor or flap may remain stuck open or closed, subject to model-specific control behavior.

Check Before Replacing

• Confirm that the freezer is producing cold air and that the fresh-food compartment has restricted or absent airflow at the damper outlet.
• With power disconnected, visually inspect the damper opening and surrounding air passage for ice, packaging, or other obstructions; do not force the flap.
• Check the damper assembly and connector for visible physical damage, corrosion, or loose wiring after accessing the component according to the appliance’s service documentation.
• If the refrigerator provides a manufacturer-specified diagnostic mode, use the model’s tech sheet to command or observe the damper; do not apply external power or bypass controls.
• Before condemning the assembly, consider that the main control and thermistor determine damper operation; a damper symptom does not by itself prove the assembly is defective.

Pro Tip

Part Details

Key Features

• Whirlpool OEM damper control assembly.
• Air damper control for a refrigerator.
• Controls cold airflow between freezer and fresh-food compartments.
• Replaces manufacturer part W10248595.
• Sold under Whirlpool Corporation branding and used across Whirlpool-family refrigerator applications.

Installation Notes

• Disconnect electrical power before servicing or installing the assembly.
• Access location and disassembly requirements vary by refrigerator model; some applications require access around or removal of the ice-maker assembly.
• Photograph or label the connector and wire routing before disconnecting the old assembly.
• Install the replacement in the same orientation and reconnect the wiring exactly as documented for the appliance model.
• Do not force the damper flap or apply external power unless the model-specific service documentation explicitly directs it.
• Restore power and verify airflow and compartment temperatures after reassembly.

Verified Compatible Models

7MF2976AEM00, 7MF2976AEM01, 59672382410, 59672382411, 59672382413, 59672383410, 59672383411, 59672383412, 59672383413, 59672389410, 59672389411, 59672389412, 59672389413, 596723824102, 596723834102

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
