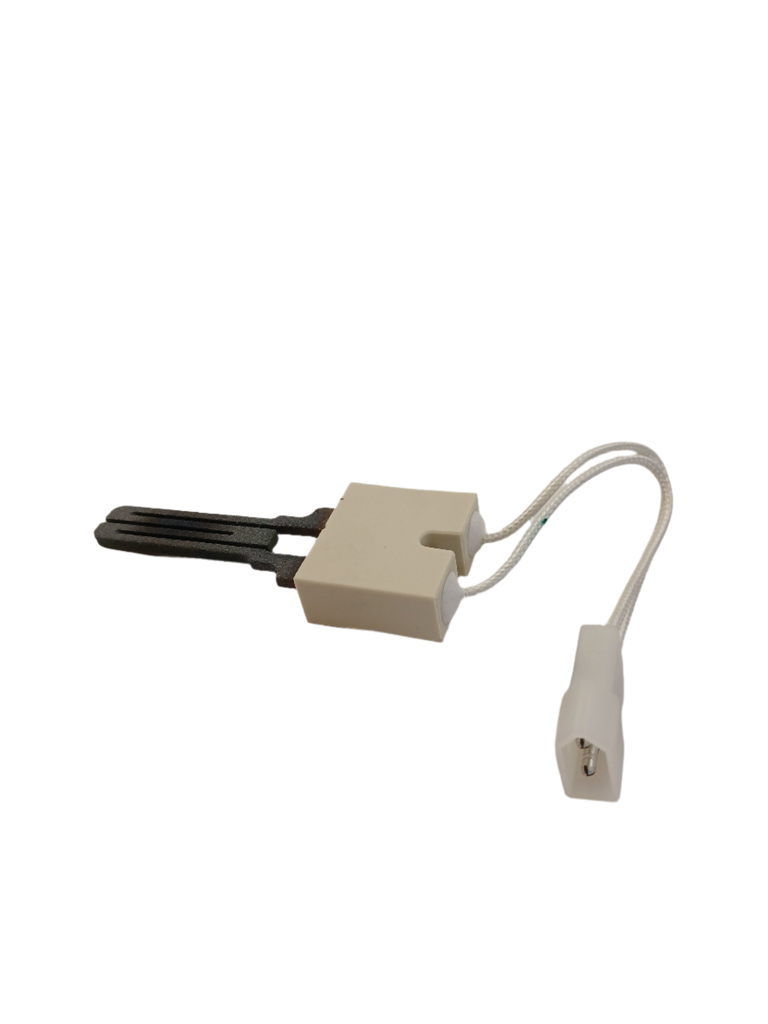

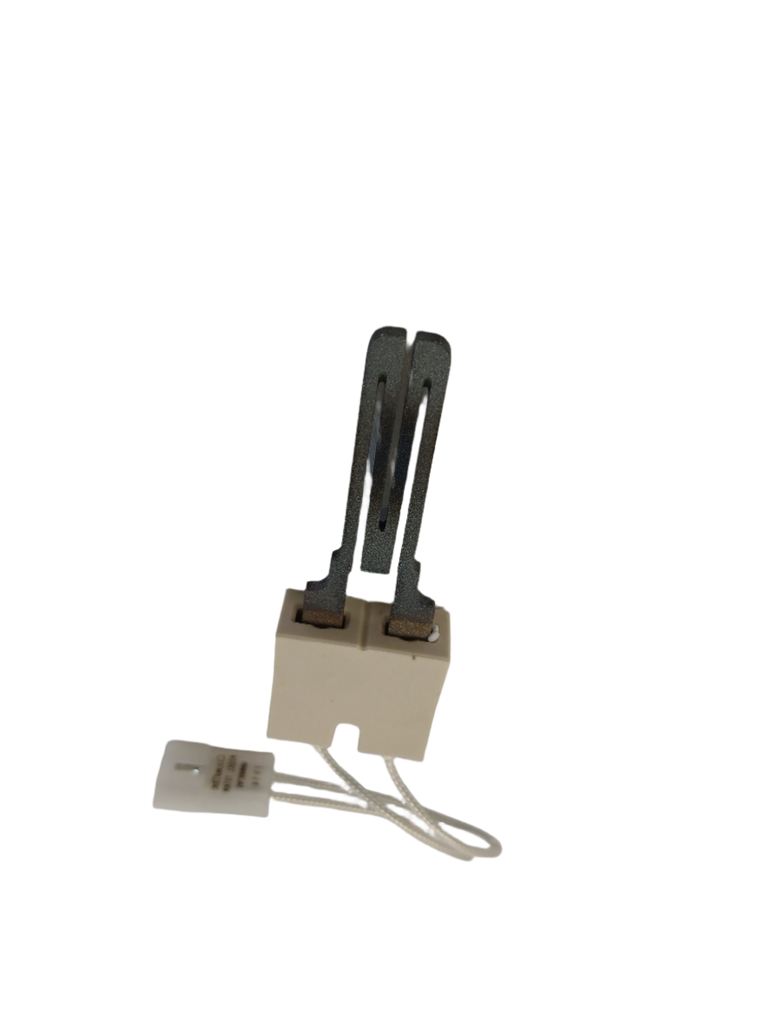

Whirlpool Igniter Assembly / Dryer Burner Igniter WP33002789, Replaces 33002789, 35001100

OEM igniter assembly that lights the gas burner to heat the dryer during the drying cycle. The part is also listed for some washer/dryer combination appliances.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No burner ignition or no heat when the dryer is operating.
• Clothes require unusually long drying times.
• Ignition may be delayed or intermittent if the igniter is damaged or failing.
• A visibly cracked, broken, or burned igniter may prevent burner ignition.

Check Before Replacing

• Disconnect electrical power before inspection.
• Visually inspect the igniter for cracks, breaks, or burn damage without touching the fragile heating element.
• During a qualified service test, observe whether the igniter glows when the burner ignition sequence begins; do not bypass safety controls or operate the appliance with panels removed unless following the model-specific service documentation.
• With power disconnected and using the appliance service procedure, test igniter continuity with a multimeter; lack of continuity indicates an open igniter, but continuity alone does not prove the igniter is the only fault.
• If the igniter glows but the burner does not light, do not assume the igniter is defective; other ignition-system components may require diagnosis.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM igniter assembly.
• Flat-style gas dryer igniter assembly.
• Designed to ignite gas in the dryer burner assembly.
• Listed for selected dryer and washer/dryer-combination applications.
• The replacement kit may include an igniter, mounting bracket, wire nuts, mounting screw, and installation instructions, depending on the supplier's packaging.

Installation Notes

• Disconnect the dryer's electrical power before installation; shut off the gas supply if required by the model-specific service procedure.
• Allow the appliance and burner area to cool before servicing.
• Handle the igniter carefully because its heating element is brittle.
• Install the replacement in the same orientation and mounting location as the removed assembly, following the appliance's model-specific service instructions.
• Do not alter gas-line connections, bypass safety devices, or operate the dryer with required panels or guards removed.
• Restore power and gas only after confirming that wiring and the igniter assembly are properly secured.

Verified Compatible Models

DV2C6BGWXAA, DV203AGS, DV203AGSXAA, DV203AGW, DV203AGWXAA, DV206AGSXAA, DV218AGBXAA, DV218AGWXAA, DV219AGBXAA, DV306LGW, DV316BGC, DV316BGW, DV316LGWXAA, DV317AGGXAA, DV317AGWXAA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
