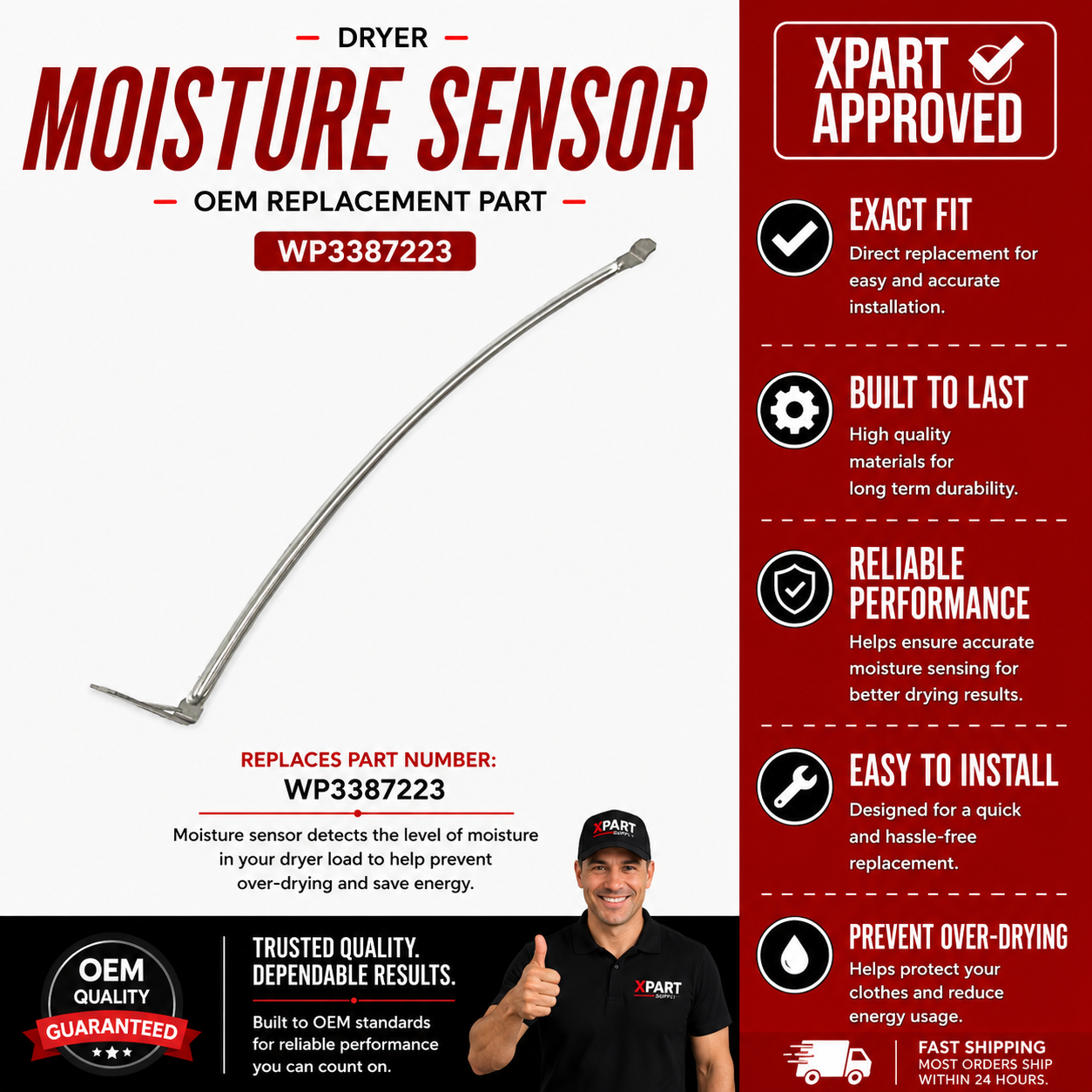

Whirlpool Dryer Moisture sensor bar WP3387223, Replaces 3387223

Genuine Whirlpool OEM dryer moisture sensor bar/electrode that detects the amount of moisture in the laundry load for automatic drying-cycle control.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Clothes remain damp when an automatic cycle ends prematurely.
• The dryer runs unusually long or does not stop during an automatic cycle.
• The sensing cycle may behave inconsistently when the sensor bars are coated with residue, corroded, damaged, or disconnected.

Check Before Replacing

• Unplug the dryer before inspection or service.
• Inspect the sensor bar and surrounding outlet-screen grille for lint, fabric-softener residue, corrosion, cracks, or physical damage.
• Clean visible residue from the sensor surfaces using the dryer manufacturer's approved cleaning method, then retest an automatic cycle.
• Visually inspect the moisture-sensor wire harness and terminals for loose, disconnected, damaged, or corroded connections.
• Compare operation on an automatic moisture-sensing cycle with a timed-dry cycle; abnormal behavior limited to automatic cycles supports checking the moisture-sensing system, but does not by itself identify the failed component.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM moisture sensor bar/electrode.
• Used with a moisture-sensor harness and dryer control system.
• Installs in the outlet-screen or lint-filter grille area on applicable dryer designs.
• Designed for automatic moisture-sensing drying cycles.
• Replaces Whirlpool manufacturer part number 3387223.

Installation Notes

• Disconnect electrical power before servicing the dryer.
• Access varies by model; the sensor bar is mounted in the outlet-screen or lint-filter grille area.
• Disconnect the sensor wiring before removing the old bar, noting the original wire placement.
• Release the retaining tab or clip as applicable to the grille design, then remove the old bar.
• Seat the replacement bar fully in the grille, reconnect the sensor wiring, and reassemble all removed panels and grilles before restoring power.
• Verify operation after reassembly using an appropriate automatic-dry cycle.

Verified Compatible Models

7MMGD0100TQ1, 7MWGD6621HC0, 110.64972300, 11060372710, GGW9200LL1, MED5500FC2, MED6230RHW2, MED8000AW0, MGD8100DC1, MGDZ600TB1, WED8300SW0, WED9050XW0, WGD6605MC1, YMEDX700XL0, YWED9600TU0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
