Oven Not Baking? Range Bake Element WP74003020 – Fix No-Heat Fast

A failed bake element is the #1 reason an oven heats unevenly or not at all. In most Whirlpool, Maytag, and Amana ranges, this is caused by a burned-out lower bake element. When it fails, the oven won't reach temperature, baking results are poor, and you may see visible burn marks or a broken coil. ⚡ Common failure point in Whirlpool-built ranges — especially after 5–10 years of use. Part WP74003020 is the genuine OEM replacement that restores full bake heat immediately with no modification required.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Your range powers on and the broil element works normally
• ✔ The oven control and display function correctly
• ✔ Your home electrical supply is confirmed OK (breaker not tripped)
• ✔ The oven temperature sensor tests within spec
• ✔ ONLY problem is the lower bake element — no heat from the bottom of the oven

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Oven not heating — no heat from the bottom element during bake cycle
• Visible burn spot, crack, or blister on the bake element coil
• Oven takes much longer than normal to preheat
• Food undercooked on the bottom, overcooked on top
• F1 or F3 error code on display (in some models)
• Element glows red only partially or not at all

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this bake element restores normal operation immediately.

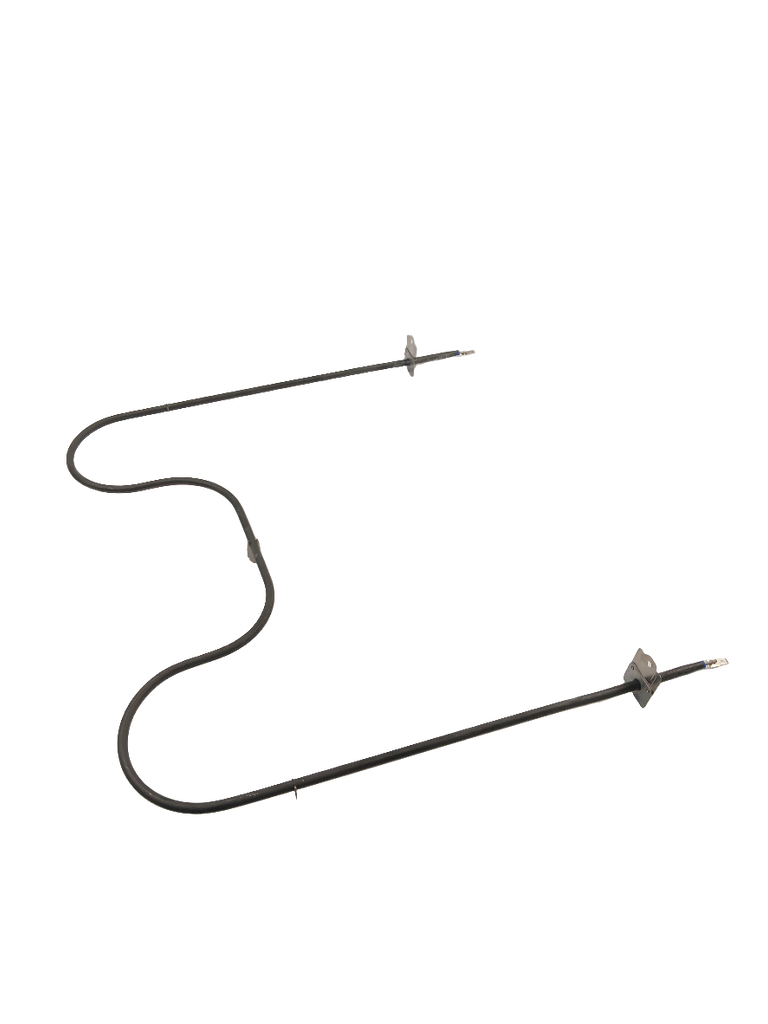

📦 Part Details

• Part Number: WP74003020
• XPart SKU: CH3020
• Type: Lower Bake Heating Element
• Replaces: OEM direct-fit bake element — supersedes 04000071, 74003020, 7406P078-60, 7406P093-60, 8189693, 880007, Y04000071 (no modification required)
• Brands: Whirlpool, Maytag, Amana, Roper, Estate

⚙️ Installation

Skill Level: Easy — 15–25 minutes. Disconnect power at the breaker before starting. Open the oven door, remove the two mounting screws at the back of the element, and gently pull the element forward to expose the wire terminals. Disconnect the spade connectors, attach them to the new element, slide it back into position, and reinstall the screws. No soldering or special tools required — standard Phillips screwdriver only.

✓ Compatible Models

Confirmed compatible with 9875VRV, 9875VVV, 9875VYV, 9875XRB, 9875XVB, 9875XYB, 9876VVV, 9876XVB, 9895VRV, 9895XRB, A9875VRV, A9875XRB, A9895VRV, A9895XRB, C9875VRV, C9875VVV, C9875XRB, C9875XVB, CWE9000BCB, CWE9000BCE, CWE9000BCM, CWE9000BDB, CWE9000BDE, CWE9000CDB, CWE9000CDE, CWE9000DDB, CWE9000DDE, CWE9030BCB, CWE9030BCE, CWE9030BDB, CWE9030BDE, CWE9030DDB, CWE9030DDE, CX9875VVV, CX9875VYV, CX9875XYB, L9875VRV, L9875VVV, L9875XRB, L9875XVB, RB262PXAB0, RB262PXAB1, RB262PXAB2, RB262PXAB3, RB262PXAB4, RB262PXAB5, RB262PXAB6, RB262PXAQ0, RB262PXAQ2, RB262PXAQ3, RB262PXAQ4, RB262PXAQ5, RB262PXAQ6, RB262PXAW0, W131B, W131B-C, W131W, W131W-C, W132B, W132W, WME3020B, WME3020W, X9875VVV, X9875XVB. Contact us to verify your model number before ordering.

💡 Pro Tip
