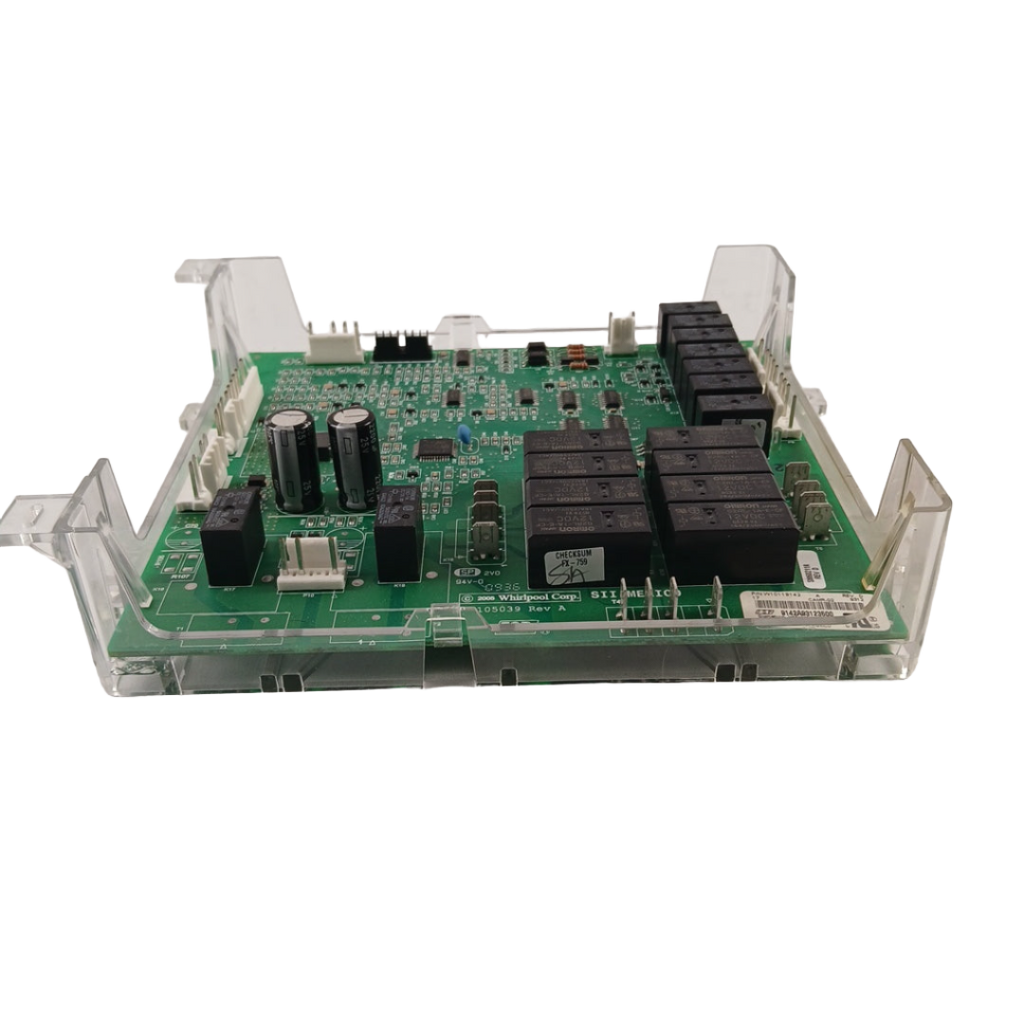

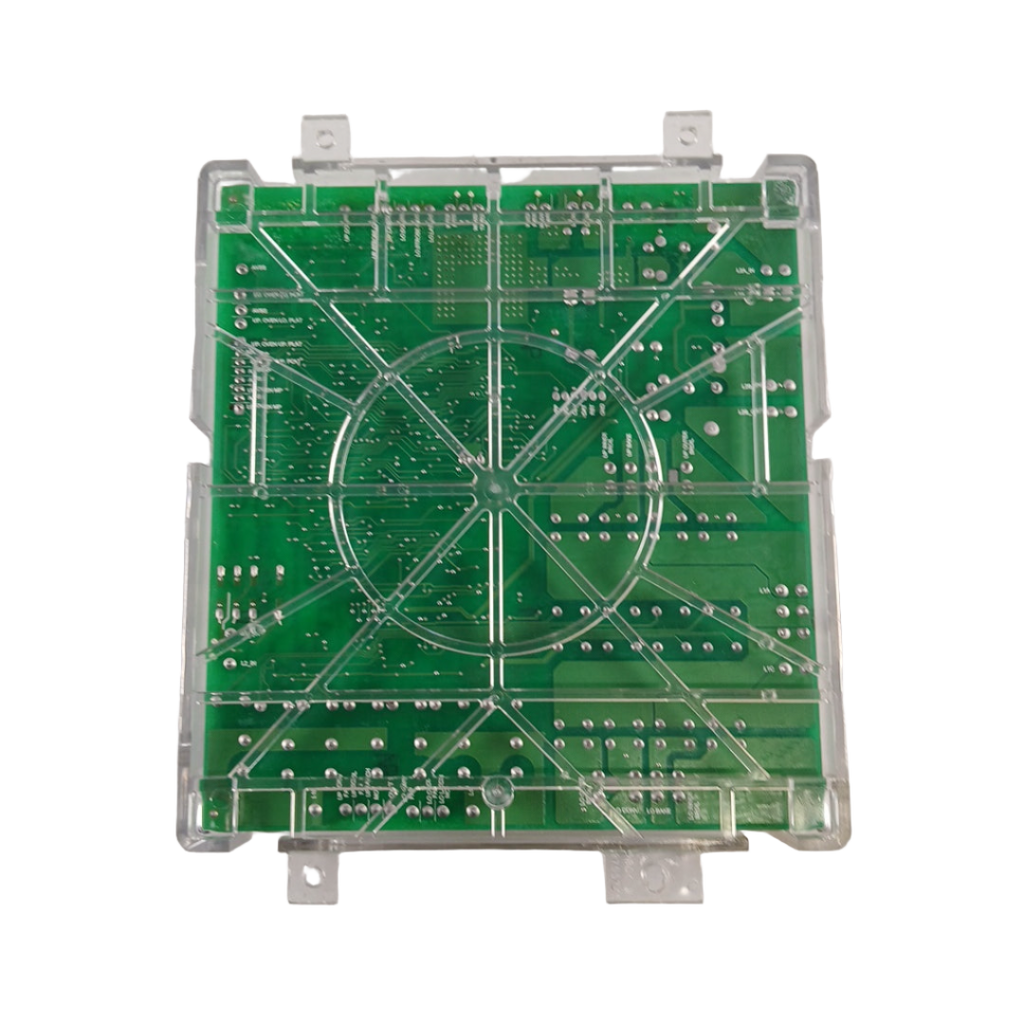

Whirlpool Range Relay control board WPW10119142

OEM relay control board used in selected KitchenAid/Whirlpool ranges and wall ovens. The part is listed as no longer available by multiple parts distributors.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Power supply to the oven is confirmed good — breaker not tripped, outlet or hardwire tested
• ✔ Bake and broil elements have been tested and confirmed not open-circuit
• ✔ Oven temperature sensor (RTD probe) has been tested and reads within spec (~1080Ω at room temp)
• ✔ ONLY problem is control panel unresponsive, error codes that won't clear, or oven won't heat despite good elements and sensor

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Oven control panel completely unresponsive — no display, no button response
• Persistent error or fault codes that cannot be cleared by resetting power
• Oven won't heat — elements and sensor test good but no heat output
• Oven heats but won't maintain temperature — board not regulating relay output
• Self-clean cycle won't initiate or locks up mid-cycle
• Display shows partial segments, incorrect readout, or goes blank intermittently

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this control board restores full oven operation immediately.

✅ Cross Reference Information

Part Details

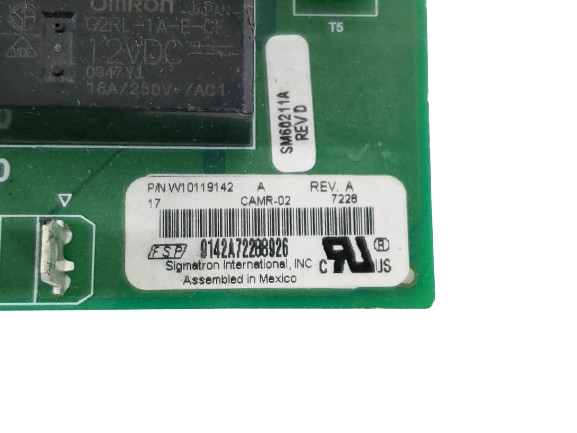

• Part Number: WPW10119142
• Part Type: Relay control board
• Manufacturer: Whirlpool
• Appliance Type: Range

⚙️ Installation Notes

Skill Level: Moderate — 45–60 minutes. Disconnect power at the breaker before beginning. The electronic control board is located behind the control panel at the top of the oven cavity — remove the control panel trim screws, carefully pull the panel forward, and photograph all wiring harness connections before disconnecting. Swap the board, reconnect all harnesses in the correct positions, reassemble the panel, restore power, and run a full bake cycle to confirm all functions are restored.

Verified Compatible Models

❓ Frequently Asked Questions

Q: Why does it say NLA — can I still order it?
A: NLA means this part is No Longer Available from the manufacturer. We may have remaining stock — if the product is showing as available, you can order it. Once it sells out, it will not be restocked.

Q: Do I need to program the board after installation?
A: No programming required. WPW10119142 is a direct plug-and-play OEM replacement — install, restore power, and run a test cycle.

Q: My oven shows a fault code — is the board definitely the cause?
A: Not always. Some fault codes point to the temperature sensor, door latch, or wiring harness. Send us your model and fault code and we'll help you confirm the root cause before ordering.
