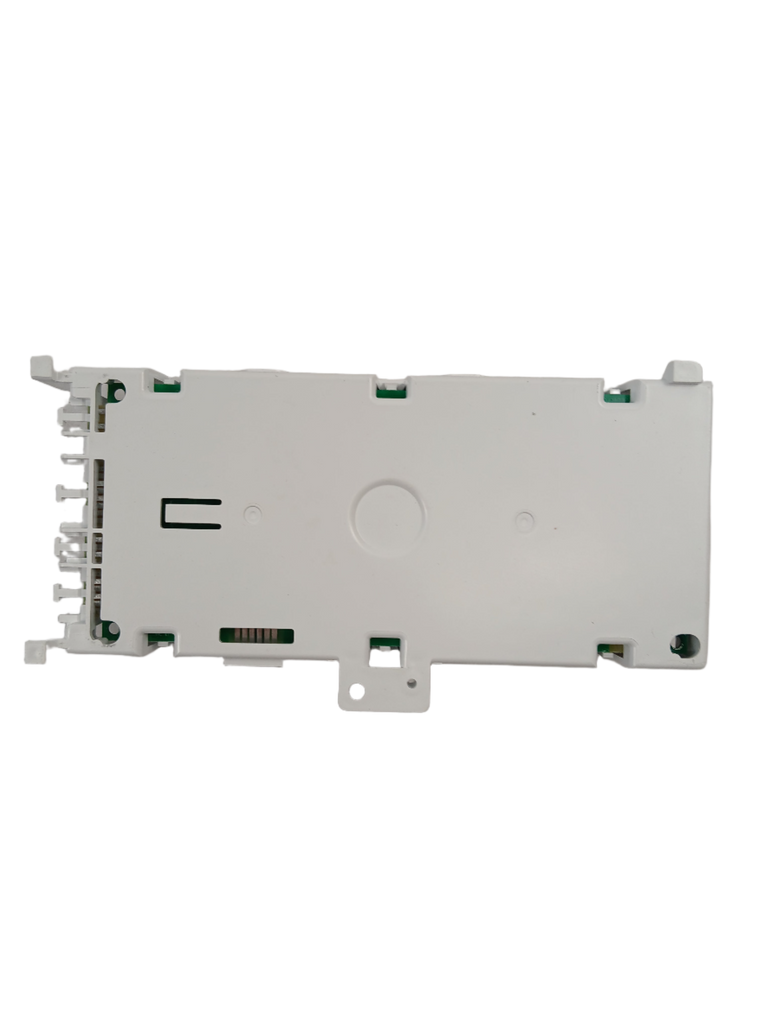

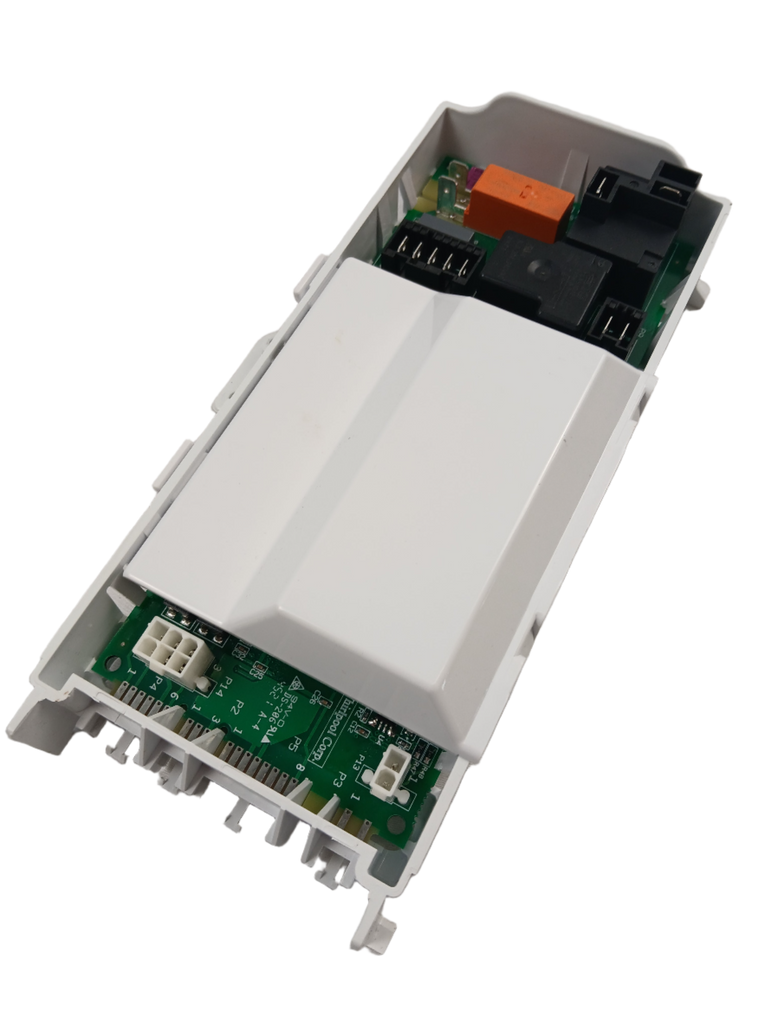

Whirlpool Dryer Electronic control board / main control board WPW10141671, Replaces W10141671, W10119241

Genuine Whirlpool OEM electronic main control board that manages dryer functions such as drying time and temperature. The part is documented for residential Whirlpool and Kenmore dryers and is discontinued or no longer available through several established distributors.

Is This the Right Part?

Common Symptoms

• F-01 error code appears on the display
• Console does not light up even though the dryer is connected to a working outlet
• Dryer controls do not respond or cycle settings cannot be adjusted

Check Before Replacing

• Confirm the dryer is connected to a known-working outlet and that the console remains unresponsive.
• Record any displayed fault code; F-01 is specifically associated with this control board in the available part documentation.
• Verify the appliance model and the number printed on the existing control board before ordering.
• With power disconnected, visually check that board connectors are fully seated and that there is no obvious connector or wiring damage.
• Do not replace the board solely because the dryer does not heat or tumble; those symptoms can originate from other components.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM electronic control board
• Designed for residential dryer applications
• Manages drying time and temperature functions
• Installed inside the dryer’s front control area
• Associated with F-01 electronic-control fault reporting

Installation Notes

• Disconnect electrical power before accessing or replacing the control board.
• Wear protective work gloves when handling the board and cabinet components.
• Confirm the replacement board number and appliance model before installation.
• Transfer connectors carefully and ensure they are fully seated before reassembly.
• Reinstall all covers and panels before reconnecting power or operating the dryer.

Verified Compatible Models

WED9500TC0, WED9500TW0, WED9600TA0, WED9600TB0, WED9600TU0, WED9600TW0, WED9600TZ0, WGD9500TC0, WGD9500TU0, WGD9500TW0, WGD9600TA0, WGD9600TB0, WGD9600TU0, WGD9600TW0, WGD9600TZ0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
