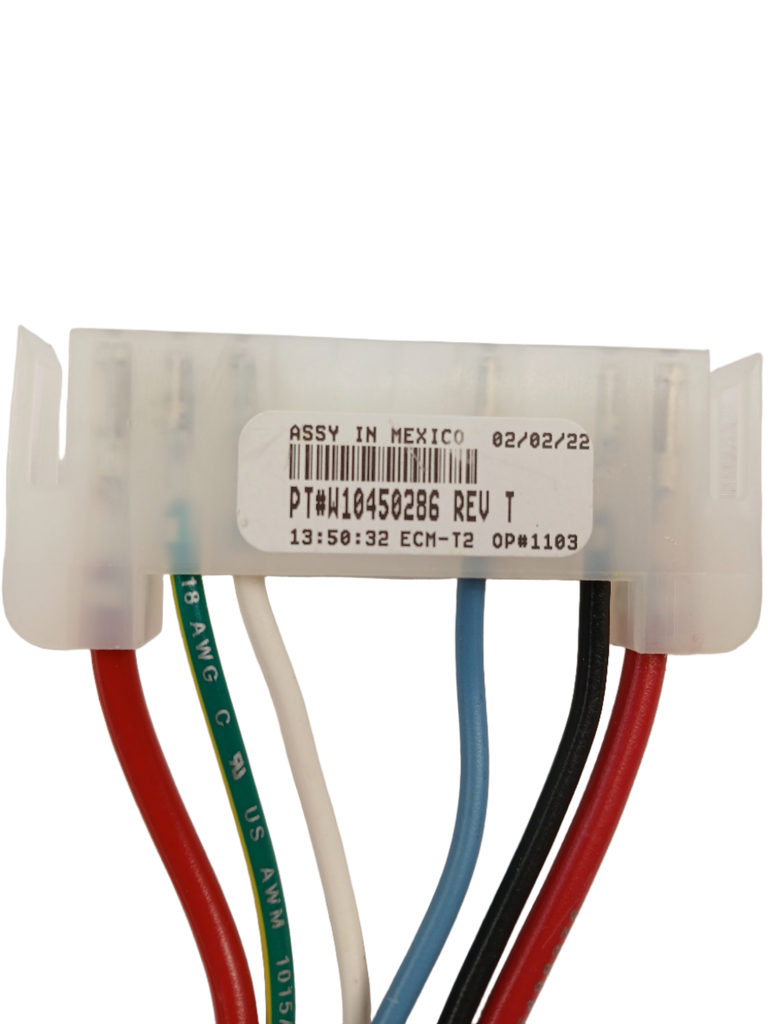

Whirlpool Corporation Dryer wire harness WPW10450286, Replaces W10450286

Wire harness that supplies power to the dryer's electrical components.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• An electrical component served by the harness does not operate.

Check Before Replacing

• Disconnect the dryer from power before any inspection.
• Inspect accessible harness wiring and connectors for visible damage, overheating, loose connections, or disconnected plugs.
• Use the appliance's model-specific wiring information to confirm the affected circuit before condemning the harness.
• If electrical continuity testing is needed, have a qualified technician test the disconnected harness and related connections using the model-specific wiring diagram.

Pro Tip

Part Details

Key Features

• Genuine OEM Whirlpool dryer wiring harness.
• Supplies power to dryer electrical components.
• Current manufacturer number WPW10450286; prior number W10450286.

Installation Notes

• Unplug the dryer before installing this part.
• Wear work gloves to protect hands during service.
• Use model-specific service information when routing and reconnecting the harness; ensure each connector is fully seated and wiring is not pinched before restoring power.

Verified Compatible Models

110.6012510, 110.6012511, AED4516HW0, AED4516MW0, AED4516MW1, AED4675EW0, AED4675YQ0, AED4675YQ1, CED123SEW0, NED4600YQ0, NED4600YQ1, NED4655EW0, NED4655EW1, RED4516FW0, RED4516FW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
