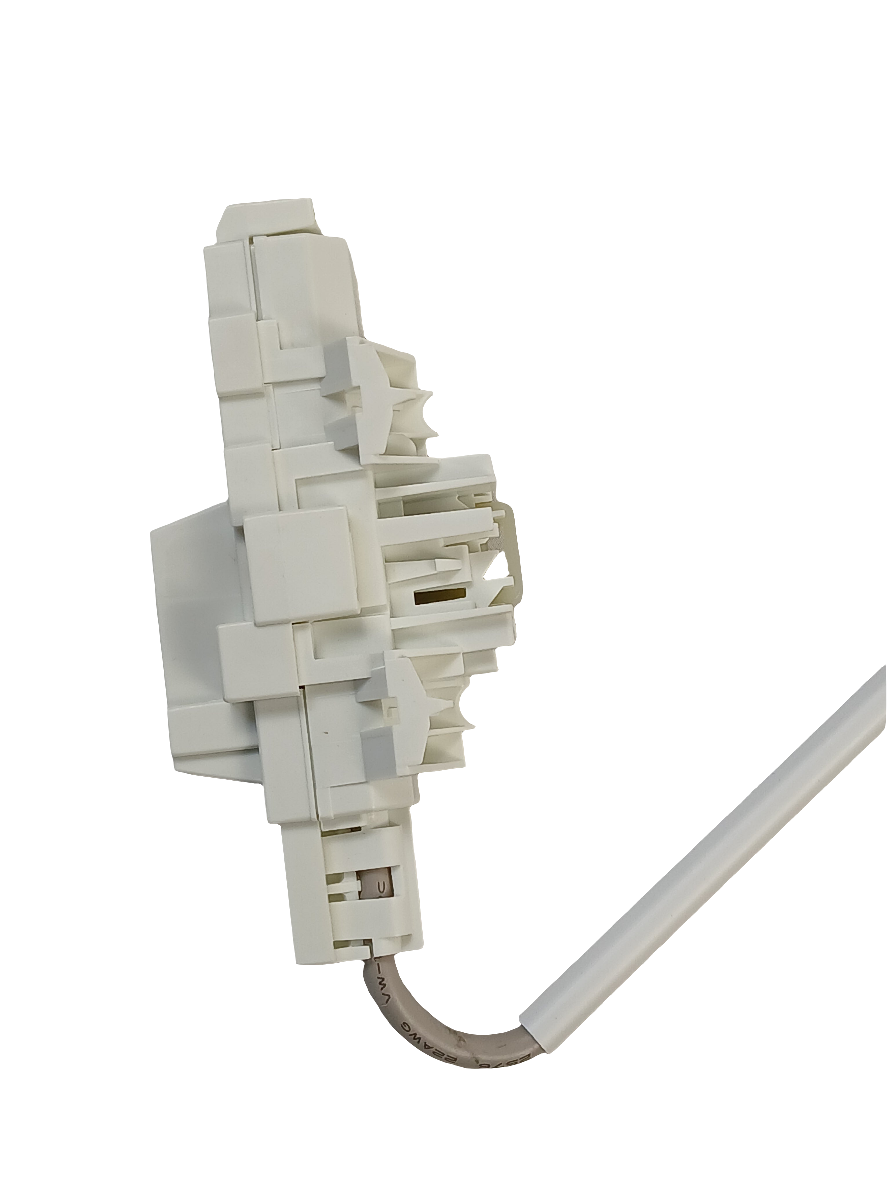

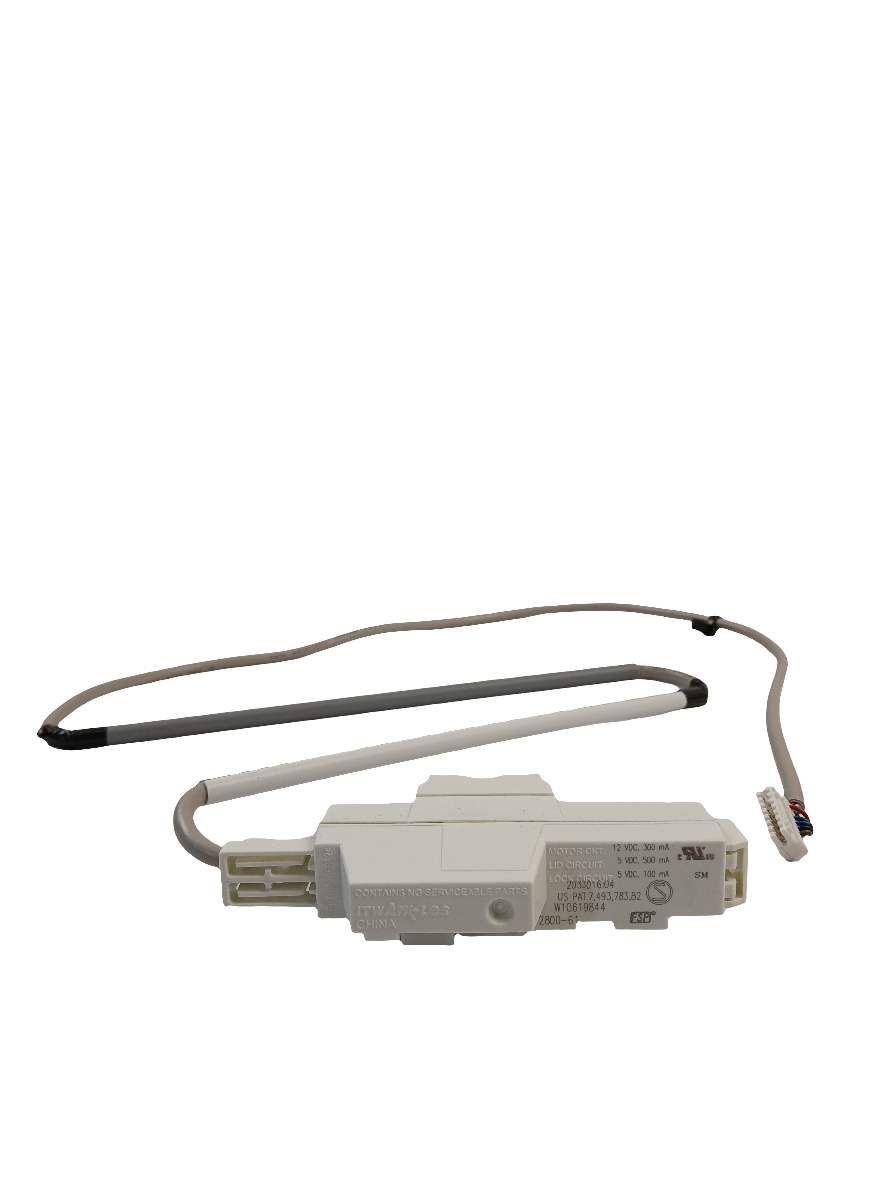

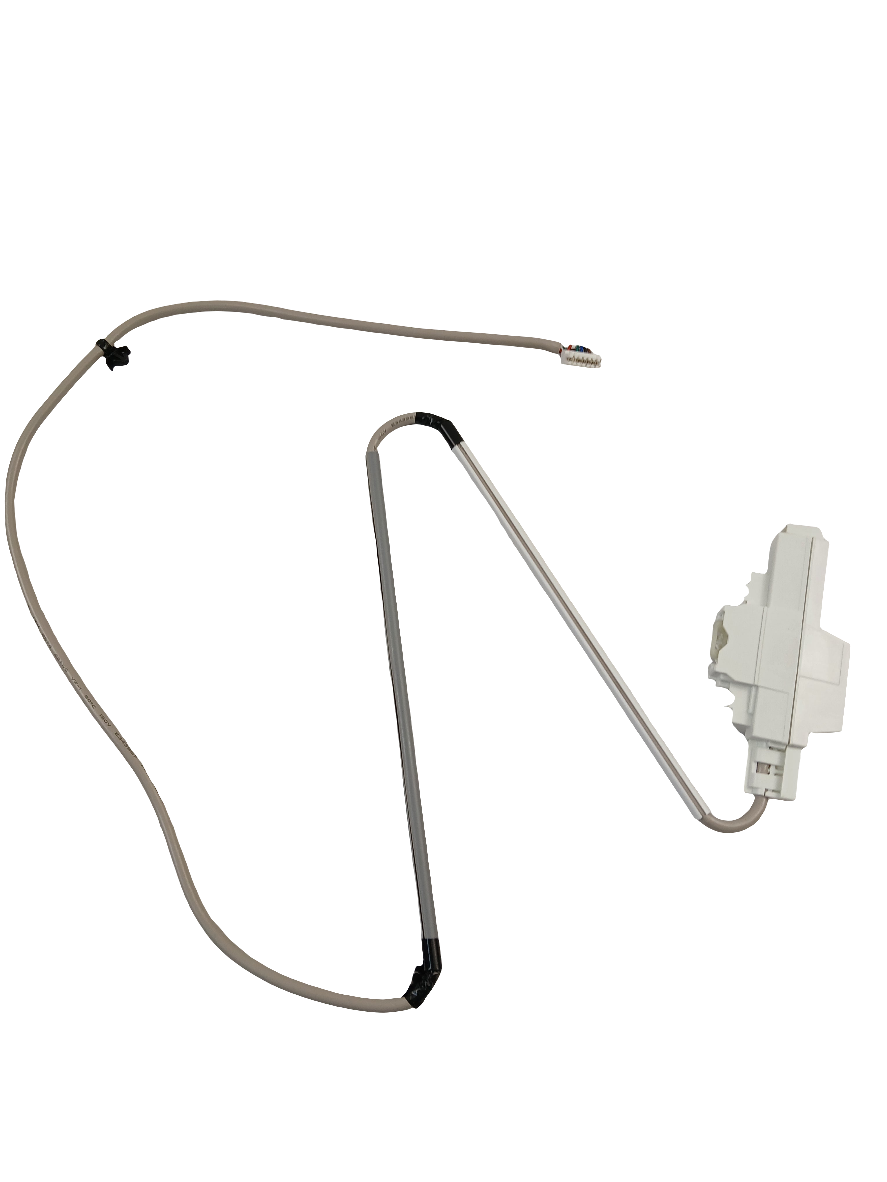

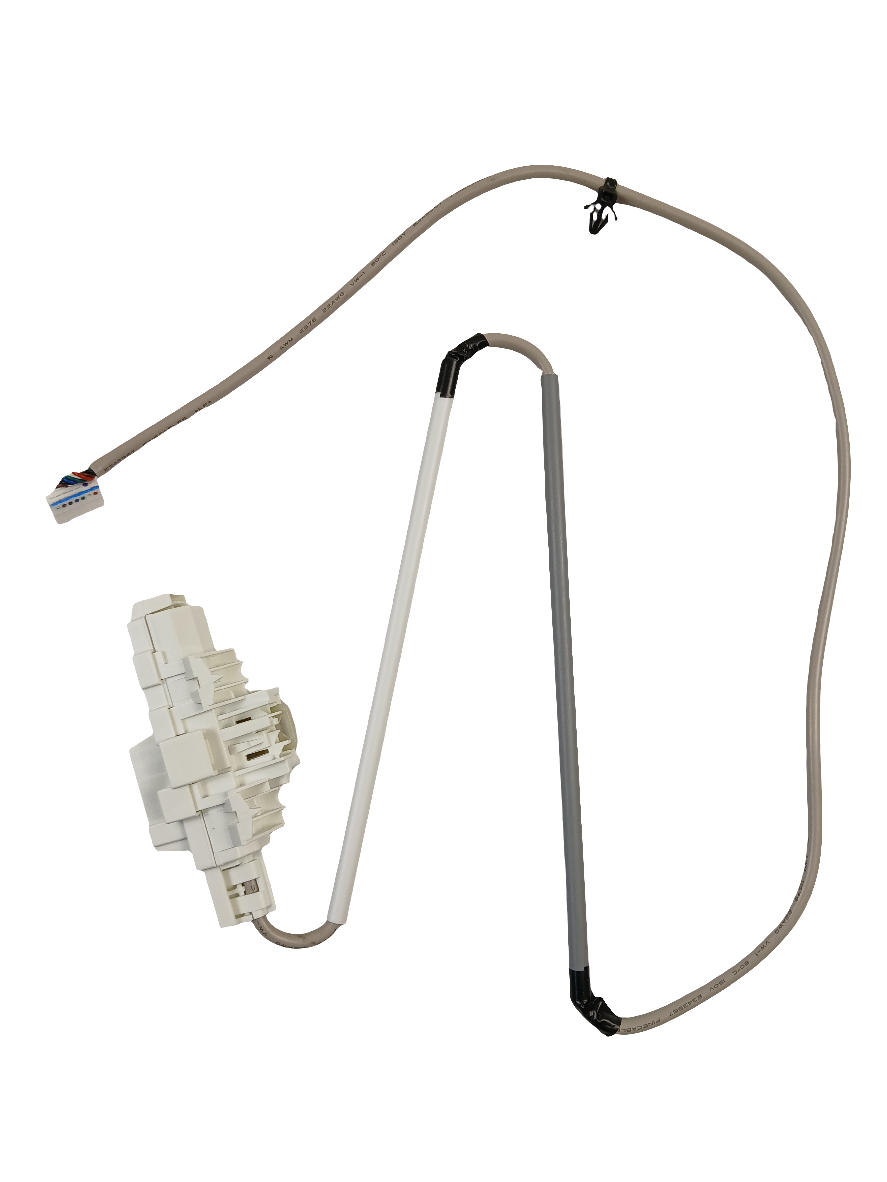

Whirlpool Washer lid lock assembly WPW10619844, Replaces 8563937, W10059230, W10619844, WPW10619844VP

Genuine Whirlpool washer lid-lock/lid-latch assembly for top-load washers. The assembly detects whether the lid is closed and prevents operation such as spinning or agitation when the lid is open.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Lid or door will not close or lock
• Washer will not start
• Washer will not spin when the lid-lock condition is required
• Locking indicator does not activate or locking repeatedly fails

Check Before Replacing

• Unplug the washer, then visually inspect the lid strike and the lock opening for breakage, displacement, or obstruction.
• With power disconnected, inspect the lid-lock connector and visible harness for looseness, pulled wires, or damage; reseat only accessible connectors without forcing them.
• After reassembly and reconnection, observe whether the washer recognizes the closed lid and performs its normal lid-lock check; do not bypass the lock or operate the washer with safety components defeated.
• Confirm the appliance model-specific parts information before replacing the assembly, since lid-lock designs and mounting arrangements can vary.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM top-load washer lid-lock/lid-latch assembly
• Integrated latch/switch function for lid-position detection
• Designed to prevent washer operation when the lid is not properly locked
• Updated production design may be white and clip into the main top without the original mounting-screw arrangement

Installation Notes

• Disconnect electrical power before servicing.
• Secure the lid and support the washer top as needed while accessing the lid-lock area.
• Disconnect the lid-lock harness before removing the old assembly; route and secure the replacement harness in the same general path so it is not pinched.
• Ensure the replacement assembly is fully seated and its connector is secure before restoring power.
• After installation, verify normal lid-lock recognition and washer operation using the appliance’s model-specific instructions; do not bypass the lock.

Verified Compatible Models

7MWTW7800XW0, 7MWTW8800AW0, 11027032602, 11027042603, 11027062600, 11027062601, 11027062602, 11027072600, 11027082604, 11027086600, 11028032701, 11028062800, 11028081700, 11028087700, 11028102310

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
