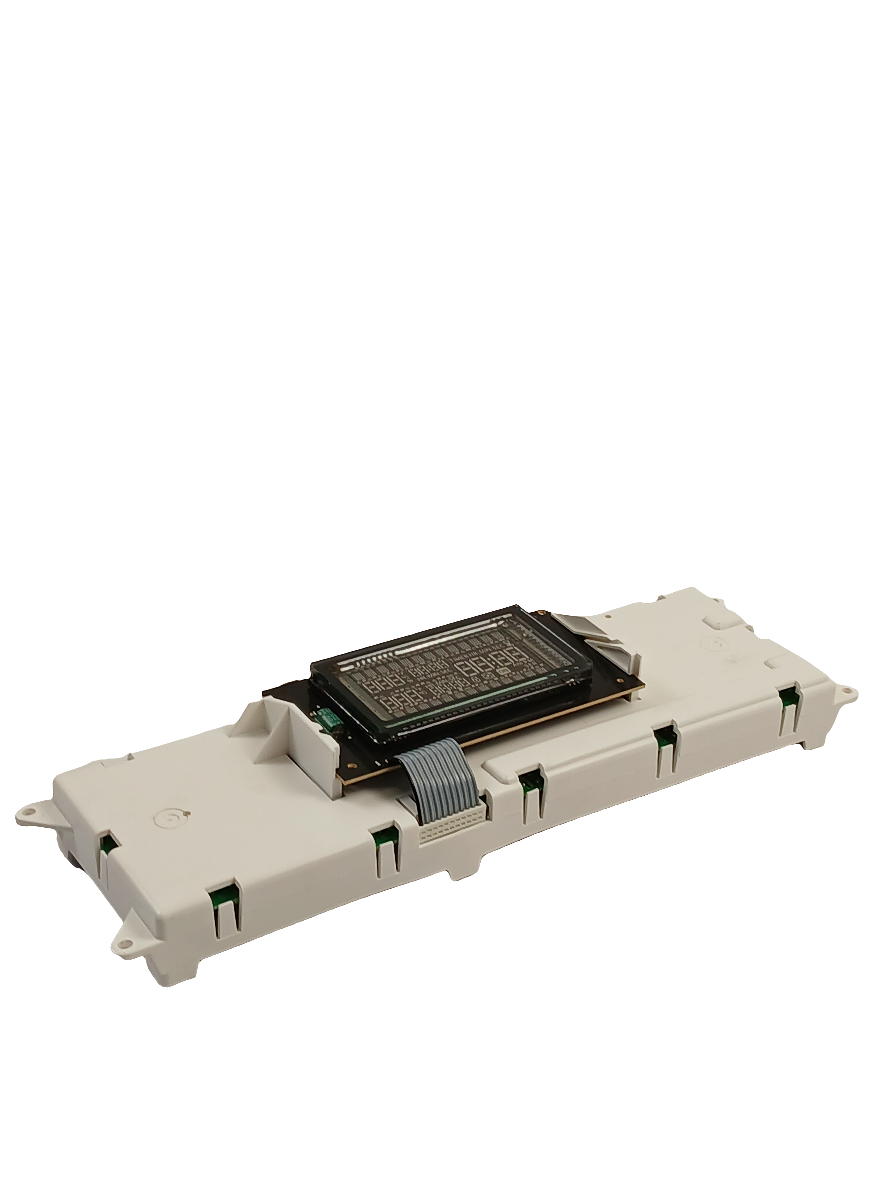

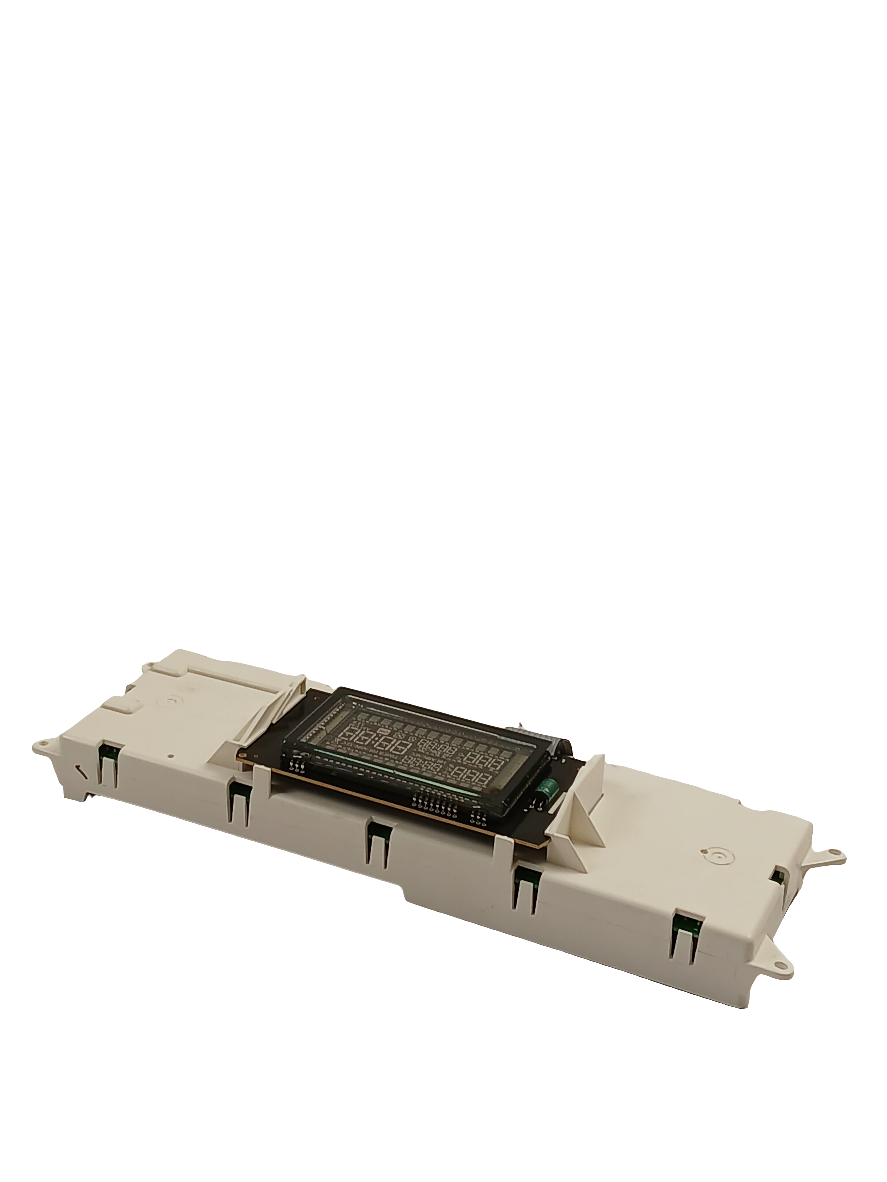

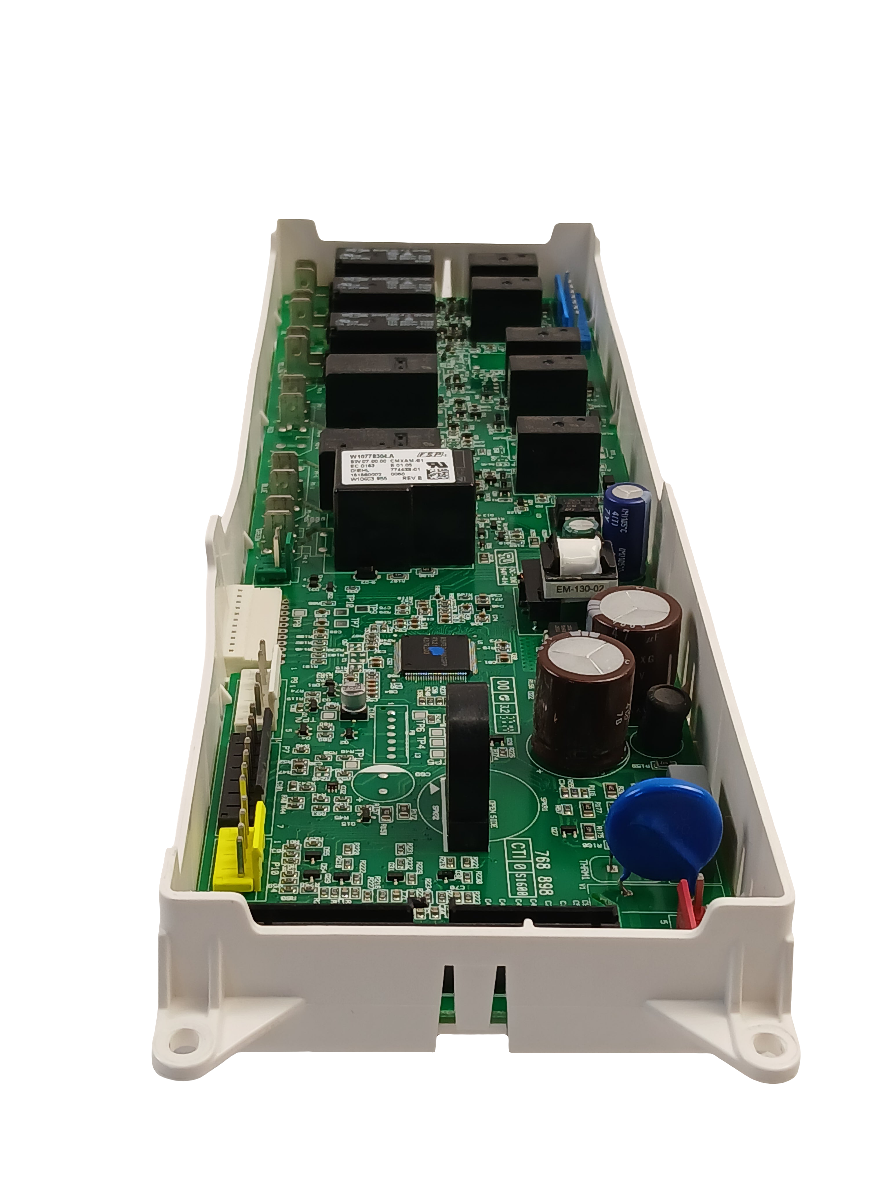

Whirlpool Range oven electronic control board WPW10778304, Replaces W10692915, W10778304

Genuine Whirlpool electronic control board for electric ranges. The board monitors oven temperature and controls oven heat and other range operations.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Oven has no heat or insufficient heat.
• Range will not start or program.
• Controls or touchpad do not respond.

Check Before Replacing

• Confirm the display and controls respond and that the oven accepts a bake or broil command.
• Record any displayed error code and consult the literature for the exact range model before attributing the issue to this board.
• With power disconnected, inspect accessible control-board wiring connectors for an obvious loose or damaged connection.
• Have the oven temperature sensor, heating elements, and touchpad/control-panel circuit evaluated as applicable before condemning the control board.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM range electronic control board.
• Monitors oven temperature.
• Controls oven heating operation.
• Processes user commands and coordinates appliance operations.

Installation Notes

• Disconnect power by unplugging the range or switching off its house circuit breaker before servicing.
• Wear work gloves to help protect hands during service.
• Because this appliance may use multiple boards, confirm the board being removed is WPW10778304.
• Document connector locations before removal so wiring is returned to the same positions.

Verified Compatible Models

MET8720DE01, MET8720DE02, MET8720DE03, MET8720DH01, MET8720DH02, MET8720DH03, MET8720DS01, MET8720DS02, MET8720DS03, YMET8720DE01, YMET8720DE02, YMET8720DE03, YMET8720DH01, YMET8720DH02, YMET8720DS01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
