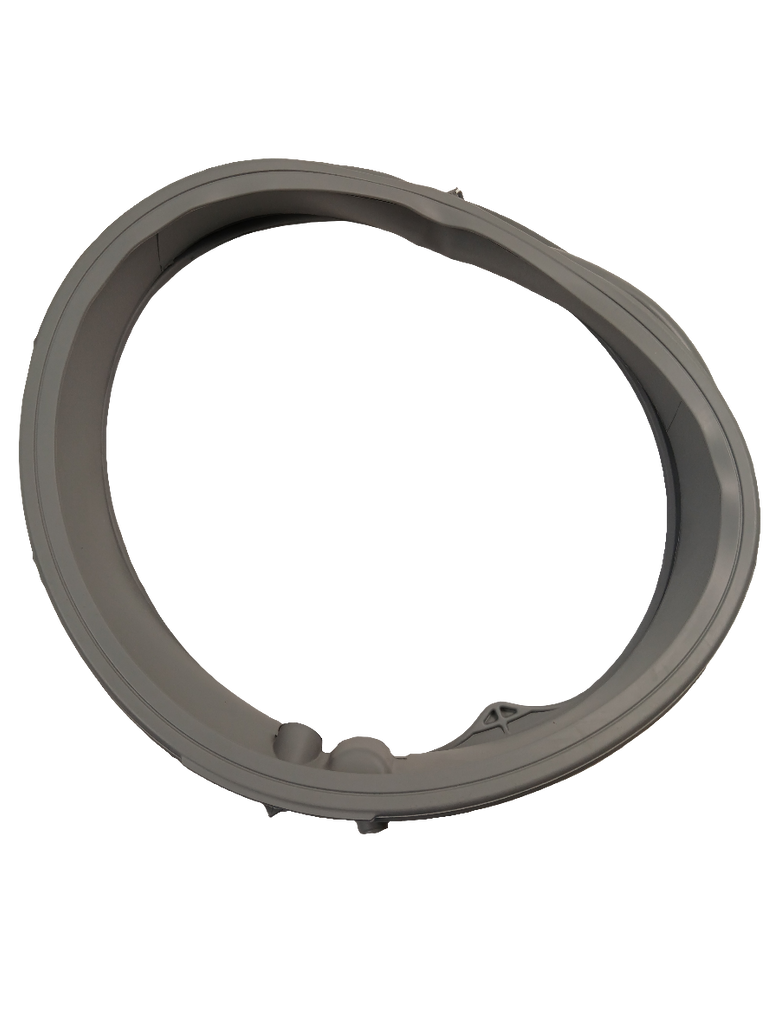

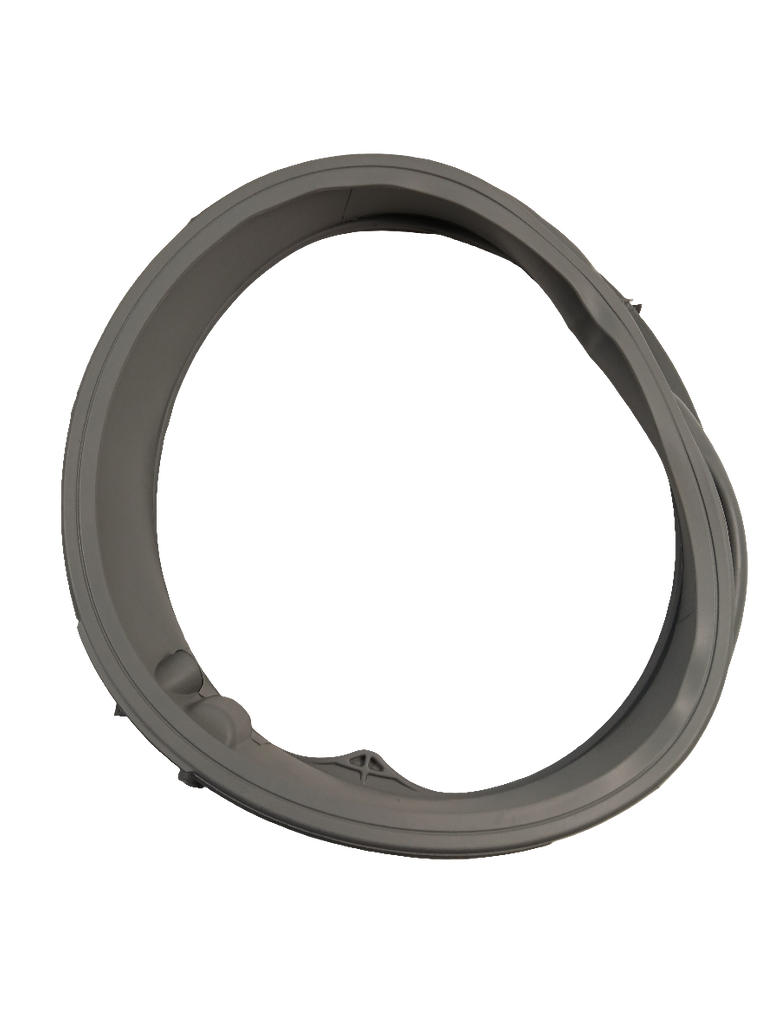

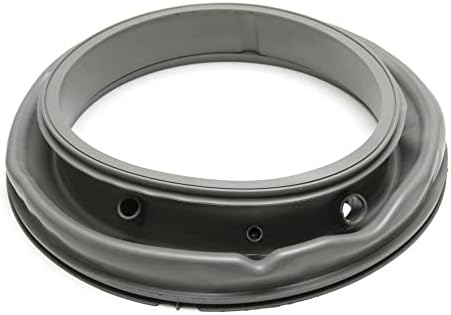

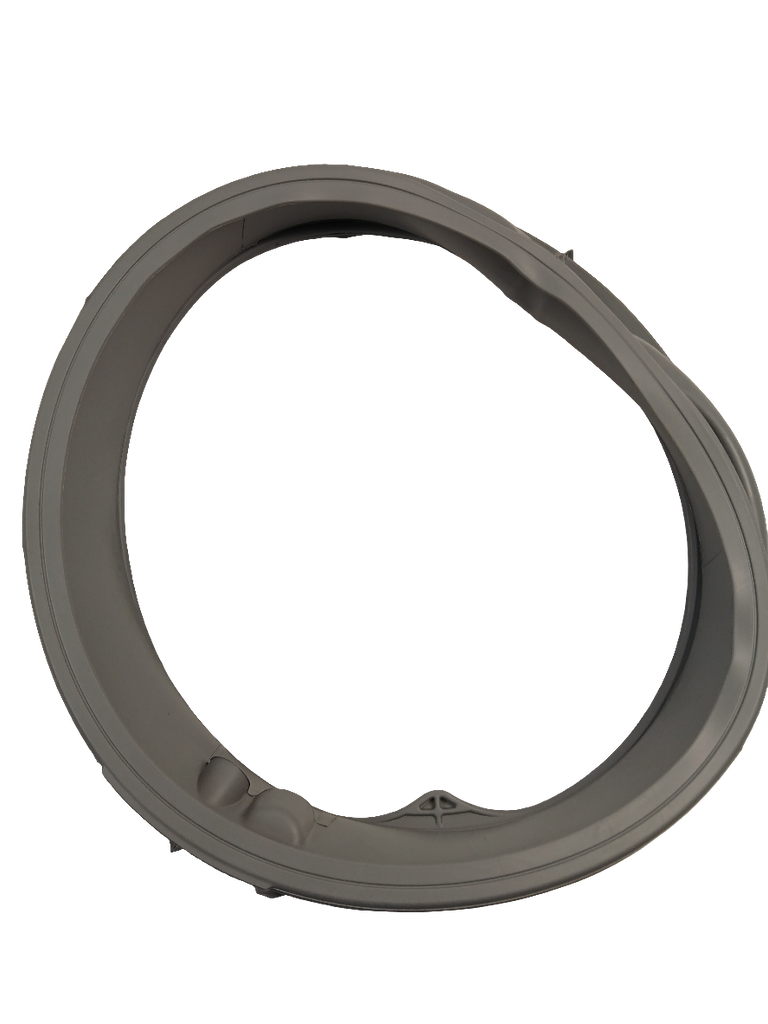

Frigidaire Washer Door Boot Seal / Door Bellow 134616100, Replaces 7134616100

Genuine Frigidaire front-load washer door boot seal, also called a bellow or door boot gasket. It forms the seal between the wash tub and door to help prevent water leakage during operation.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible tear, split, crack, or deformation in the rubber boot
• Water appearing around the door during operation
• Door glass not contacting the boot evenly
• Mildew or residue embedded in the boot that cannot be adequately cleaned
• Boot rubbing against the rotating drum or appearing partially unseated

Check Before Replacing

• Unplug the washer before inspecting the boot or its retaining rings.
• With the door open, visually inspect the entire boot—including folds and drain openings—for tears, splits, foreign objects, or sections pulled out of their retaining groove.
• Inspect the door glass and the boot’s sealing lip for detergent residue, clothing, or other debris that could prevent even contact.
• Confirm that the boot is seated evenly around the tub and front-panel openings and that no portion is folded inward or visibly displaced.
• If a leak is observed, determine whether water is emerging from the door-seal contact area rather than from a hose, dispenser, pump, or lower cabinet area; do not assume the boot is the cause without checking those locations.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire OEM washer door boot seal/bellow
• Flexible rubber construction
• Corrugated bellows design accommodates drum movement
• Designed to seal the interface between the washer door and tub
• Exact part number 134616100; prior number 7134616100 is documented as a previous/replaced number

Installation Notes

• Disconnect electrical power before beginning service.
• Remove the existing boot and install the replacement with the same orientation, ensuring the boot is evenly seated in its grooves.
• Retaining rings or springs may be under tension; use care during removal and installation and protect hands from sharp cabinet edges.
• After installation, rotate the drum by hand to check that it does not rub the boot, then perform a controlled water check for leakage before returning the washer to normal use.

Verified Compatible Models

41741100000, 41741101000, 41741102000, 41744130000, 41744131000, 41744132000, EIFLS55IIW0, EIFLS55IIW1, EIFLS55IMB0, EIFLS55IMB1, EIFLS55IRR0, EIFLS55QT0, EIFLS60JIW0, EIFLS60JIW1, EIFLS60JMB0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
