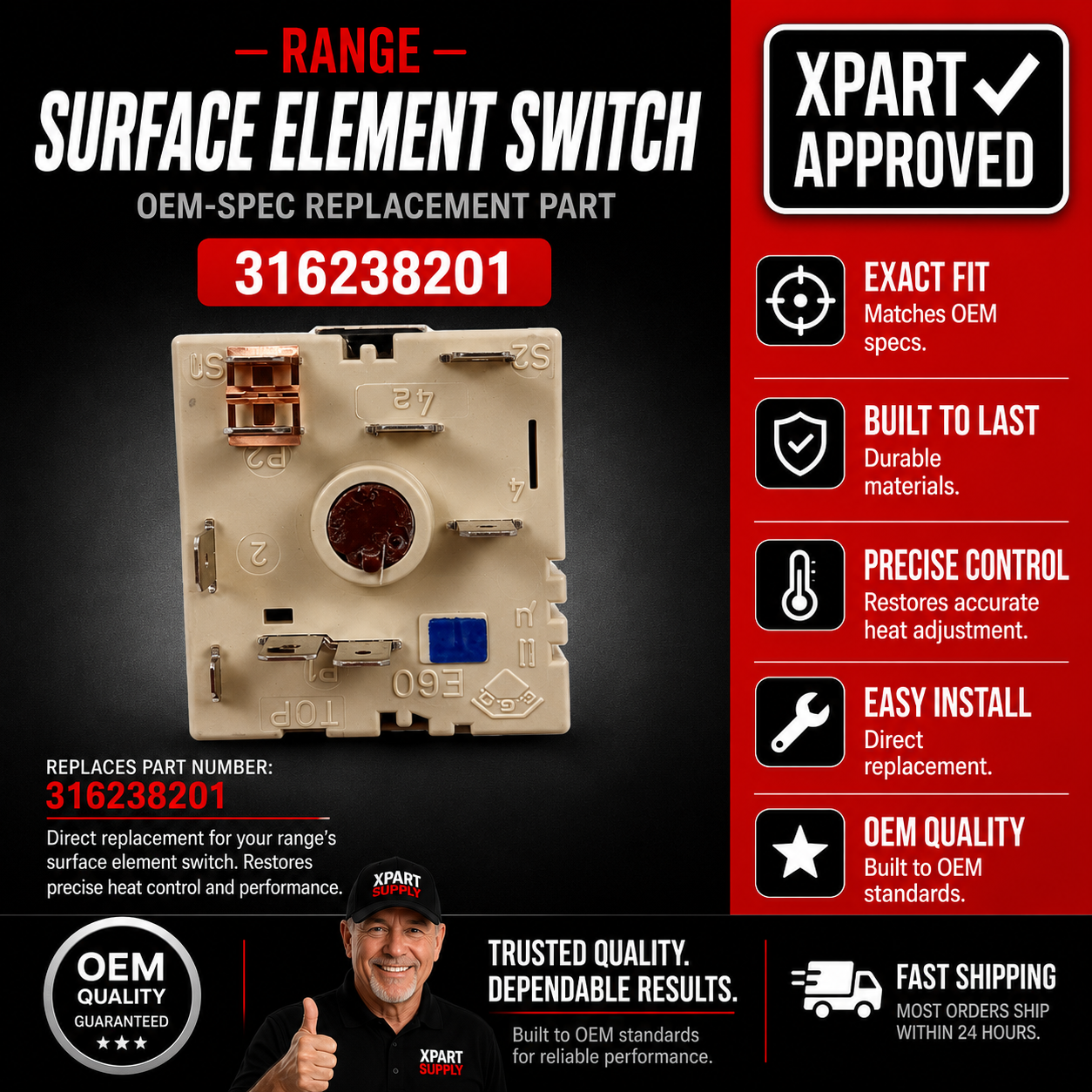

Frigidaire Range Dual surface element switch 316238201

Genuine OEM dual surface element control switch for an electric range. It controls a dual stovetop surface element, including on/off operation and heat level.

Is This the Right Part?

Common Symptoms

• The element does not turn on.
• The element heats only on high or does not respond normally to the control setting.
• Only the inner or outer section of the dual element operates.
• The element continues heating or does not turn off normally.

Check Before Replacing

• With the range disconnected from power, compare the affected dual element's wiring and terminals with the range wiring diagram.
• Inspect the switch and its terminals for visible overheating, looseness, discoloration, or damaged connectors after power has been disconnected.
• If the element itself is accessible, check the element and wiring separately before condemning the switch; a failed element or wiring fault can produce similar symptoms.
• For electrical continuity or voltage tests, use the appliance service documentation and appropriate electrical safety procedures; do not test energized circuits unless qualified.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire OEM dual surface element switch.
• Designed for electric ranges.
• Controls a dual surface burner and its heat level.
• Rated 13 amps, 240 volts according to an established appliance-parts distributor.
• Push-to-turn control with a D-shaped shaft, according to a technical parts retailer.

Installation Notes

• Disconnect electrical power to the range at the plug or circuit breaker before installation.
• Verify the replacement against the appliance model and the removed switch before transferring wires.
• Record wire locations before disconnecting the old switch and reconnect each wire to the corresponding terminal.
• Do not rely on terminal appearance alone; use the appliance wiring diagram if terminal positions or markings differ.
• Restore power only after the switch, wiring, and control panel have been secured.

Verified Compatible Models

FFEF3013LBF, FFEF3013LBG, FFEF3013LMF, FFEF3013LMG, FFEF3013LWF, FFEF3013LWG, FFEF3013XWA, FFEF3018LBE, FFEF3018LBF, FFEF3018LBG, FFEF3018LMF, FFEF3018LMG, FFEF3018LMH, FFEF3018LQE, FFEF3018LQF

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
