Frigidaire Range Oven Not Heating or Showing F-Codes? 316525610 Wire Harness — Fix Electrical Faults Fast

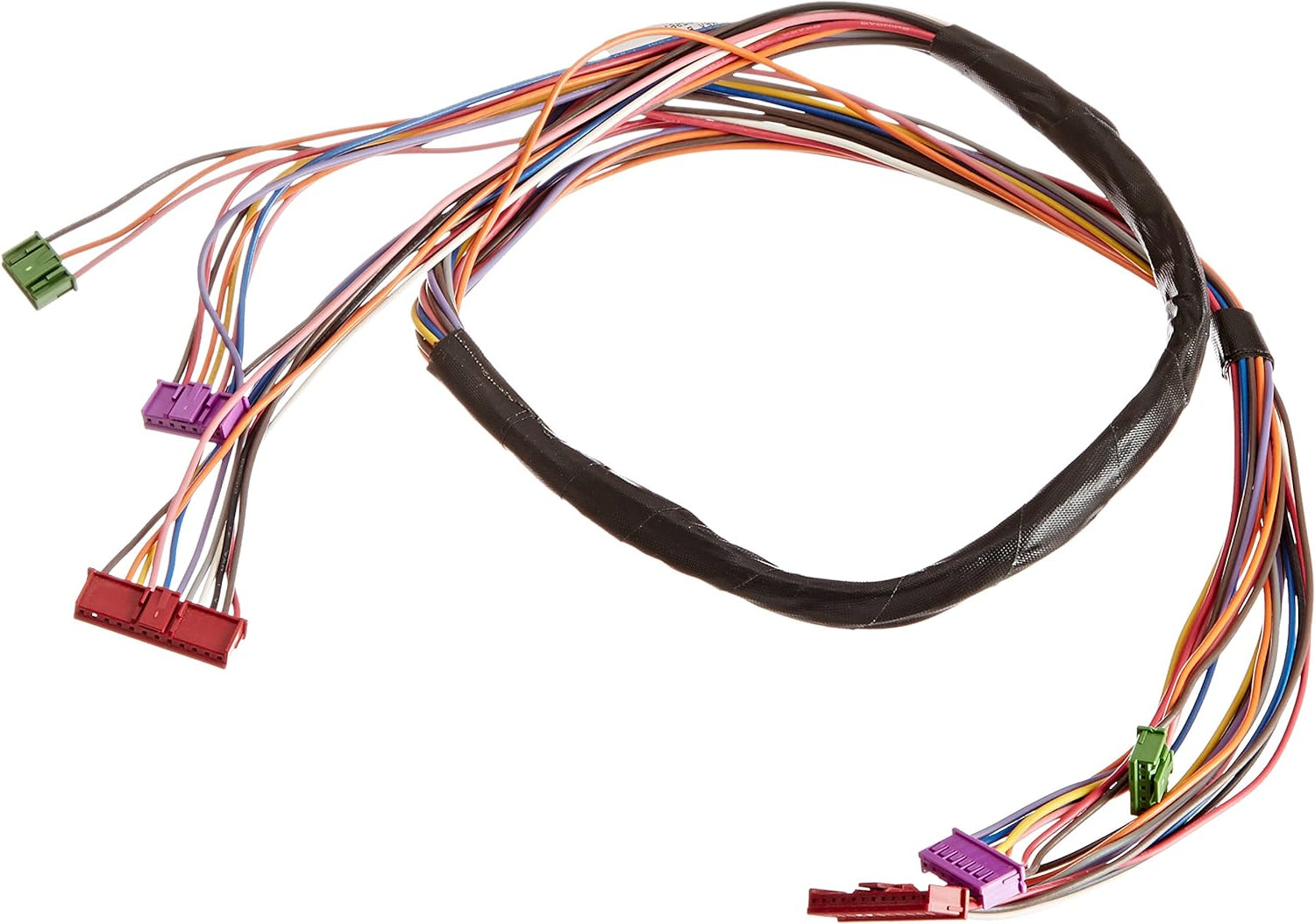

When your Frigidaire or Electrolux range shows persistent F-codes, has a dead oven element, or loses function on one or more controls, a failed wire harness is the most common root cause. In FGEF, FGIF, and EI30EF series ranges, the wire harness carries power and signal between the control board and the heating elements, sensors, and surface burner components. When the harness burns, cracks at a connector, or loses continuity, the control board loses communication with key components and triggers fault codes or dead zones. ⚡ Common failure point in Frigidaire and Electrolux ranges after heat-related connector damage. Part 316525610 is the genuine OEM wire harness that restores full electrical continuity and clears the fault at its source.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range powers on — display and controls respond
- ✔ Control board has been confirmed functional (no burn marks or failed relays)
- ✔ Heating elements have been tested and confirmed intact
- ✔ Power supply to the range is confirmed at 240V
- ✔ ONLY problem is persistent F-codes, dead heating zones, or intermittent control failures
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Oven or surface element will not heat — most common complaint
- Persistent F-codes or error codes on the display that won’t clear after reset
- Control board appears unresponsive or behaves intermittently
- Visible burn marks, melted insulation, or broken connectors on wiring
- Range powers on but one or more functions are completely non-operational
- Intermittent heating — oven works sometimes but cuts out mid-cycle
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing the wire harness restores full electrical continuity and clears fault codes immediately.
📦 Part Details
- Part Number: 316525610
- Type: Range wire harness — control board to elements and sensors, Frigidaire/Electrolux OEM
- Replaces: OEM direct-fit wire harness (no modification required)
- Brands: Frigidaire, Electrolux
⚠️ Recommended While Repairing:
Inspect all element receptacles and connector terminals for arcing, pitting, or corrosion while the harness is out — heat-damaged connectors at the bake or broil element terminals are the most common cause of harness failure and will damage a new harness if not replaced at the same visit.
Inspect all element receptacles and connector terminals for arcing, pitting, or corrosion while the harness is out — heat-damaged connectors at the bake or broil element terminals are the most common cause of harness failure and will damage a new harness if not replaced at the same visit.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power at the circuit breaker before beginning — this is a 240V wiring repair. Photograph all connector positions before removal to ensure correct reassembly. Route the new harness in the same path as the original, reconnect all terminals firmly, and verify no wires are pinched before reassembling the range back panel. Restore power and test all functions.
💡 Pro Tip
Clear the F-Code First — Then Diagnose:
Before ordering any part, perform a hard reset: disconnect power for 5 minutes, then restore. If the F-code returns immediately on the same function, the harness or the component it serves is confirmed failed. If the code clears and doesn’t return, the fault may have been a transient spike — monitor before replacing parts. This 5-minute step eliminates the most common unnecessary harness replacement.
Before ordering any part, perform a hard reset: disconnect power for 5 minutes, then restore. If the F-code returns immediately on the same function, the harness or the component it serves is confirmed failed. If the code clears and doesn’t return, the fault may have been a transient spike — monitor before replacing parts. This 5-minute step eliminates the most common unnecessary harness replacement.
Model hub pages: FGEF3055MFA, FGEF3055MFB, FGEF3055MFC, FGEF3059TFA, FGEF3059TFB, FGIF3061NFA, FGIF3061NFB, FGIF3061NFC, EI30EF45QSA, EI30EF45QSB, EI30EF45QSC, EI30EF55GSA, EI30EF55GSB
