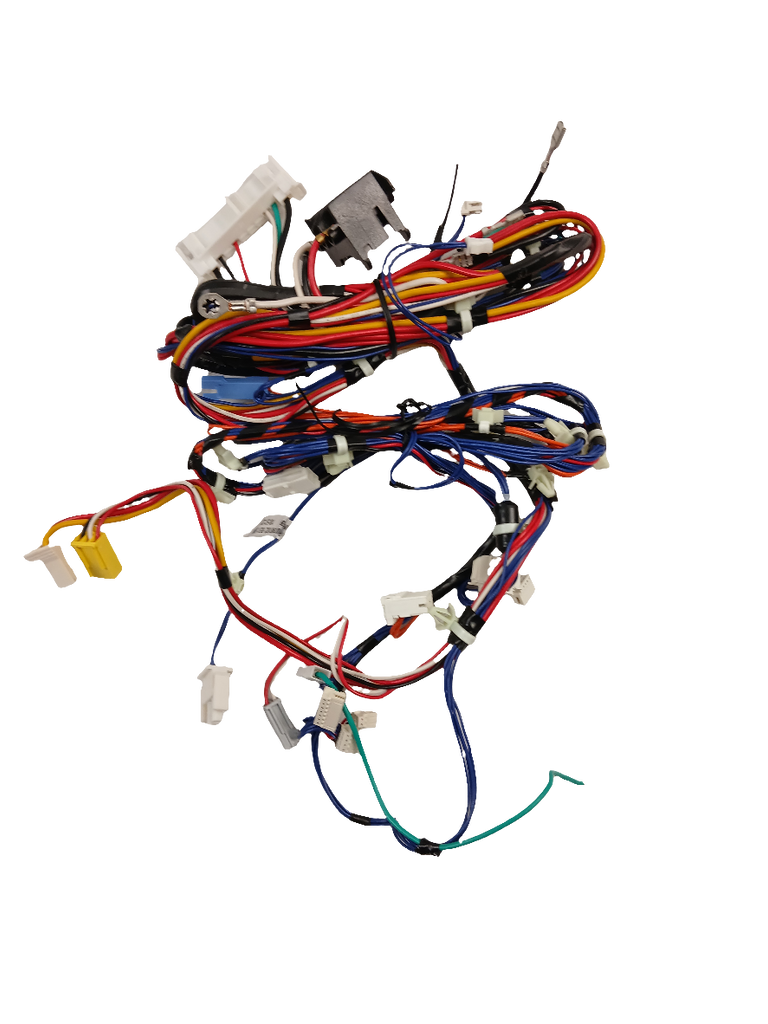

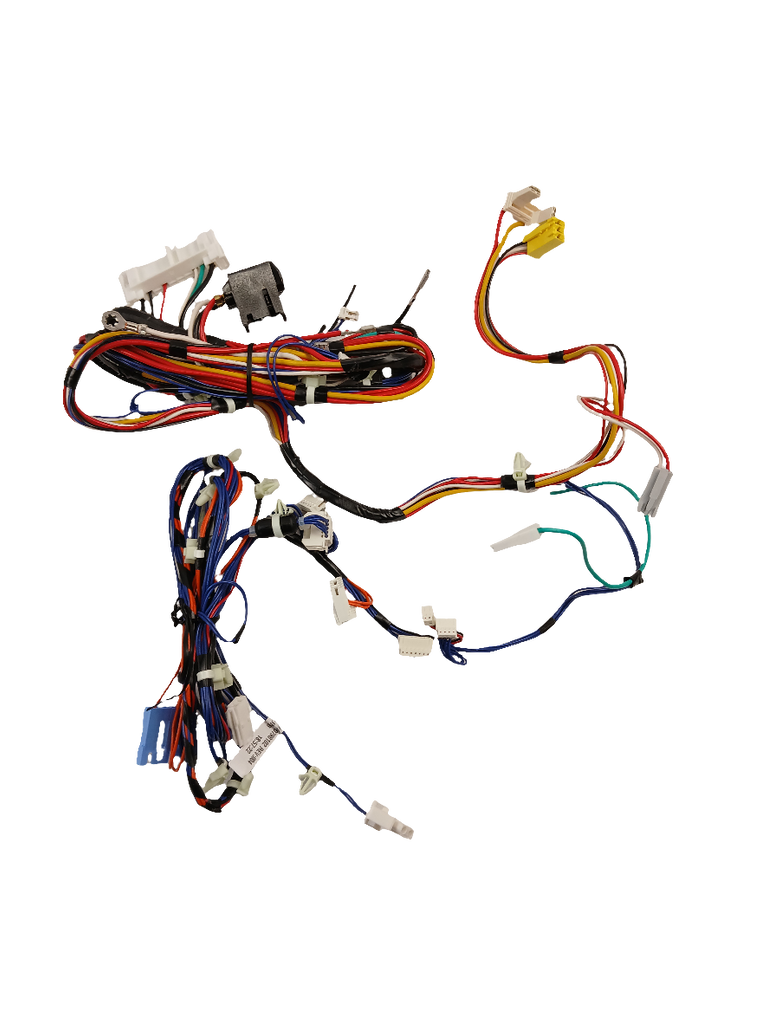

Frigidaire / Electrolux Dryer Main wiring harness 5304521235, Replaces 5304513588

Genuine OEM main wiring harness that supplies power and connects electrical components in select Frigidaire and Electrolux dryers.

Is This the Right Part?

Common Symptoms

• Dryer does not power on or powers off intermittently.
• Some dryer functions operate while other connected functions do not.
• Intermittent control or component operation caused by a poor harness connection.
• Visible wire, terminal, or connector damage may accompany the electrical symptom.

Check Before Replacing

• Disconnect electrical power before inspection.
• With power disconnected, visually inspect the harness for pinched, chafed, melted, or disconnected wires and connectors.
• Check that harness connectors are fully seated and that terminals are not visibly backed out, corroded, or heat-damaged.
• Compare harness routing and connector locations with the appliance wiring diagram or service documentation for the exact dryer model.
• If qualified and equipped with the correct wiring diagram, perform continuity checks on individual harness circuits with power disconnected; do not use continuity results alone to condemn the harness.

Pro Tip

Part Details

Key Features

• Genuine OEM Frigidaire/Electrolux main wiring harness.
• Designed for select Frigidaire and Electrolux dryers.
• Provides electrical connectivity between major dryer components.
• Replaces previous OEM part number 5304513588.

Installation Notes

• Disconnect and unplug the dryer before installation.
• Wear work gloves because cabinet edges and harness components may be sharp.
• Transfer and reconnect each connector to the corresponding location, following the exact model wiring diagram.
• Route the replacement harness as the original was routed and keep wires clear of moving parts, sharp edges, and heat sources.
• Do not force connectors or alter the harness; stop if connector locations or wire routing do not match the exact appliance documentation.

Verified Compatible Models

EFME527UIW0, EFME527UIW1, EFME527UIW2, EFME527UTT0, EFME527UTT1, EFME527UTT2, EFME627UIW0, EFME627UIW1, EFME627UIW2, EFME627UTT0, EFME627UTT1, EFME627UTT2, EFME628WTT00, ELFE7537AT0, ELFE7537AW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
