Speed Queen Washer Hub and Lip Seal Kit 766P3A, Replaces 200512, 766P3

⚠ Important — Companion Part Required: Alliance Laundry Systems specifies that drive-bell kit 39508P must be ordered with 766P3A. The 39508P drive-bell kit is not included in this listing. Confirm whether approved sealant 200996P is also required for your service procedure before ordering.

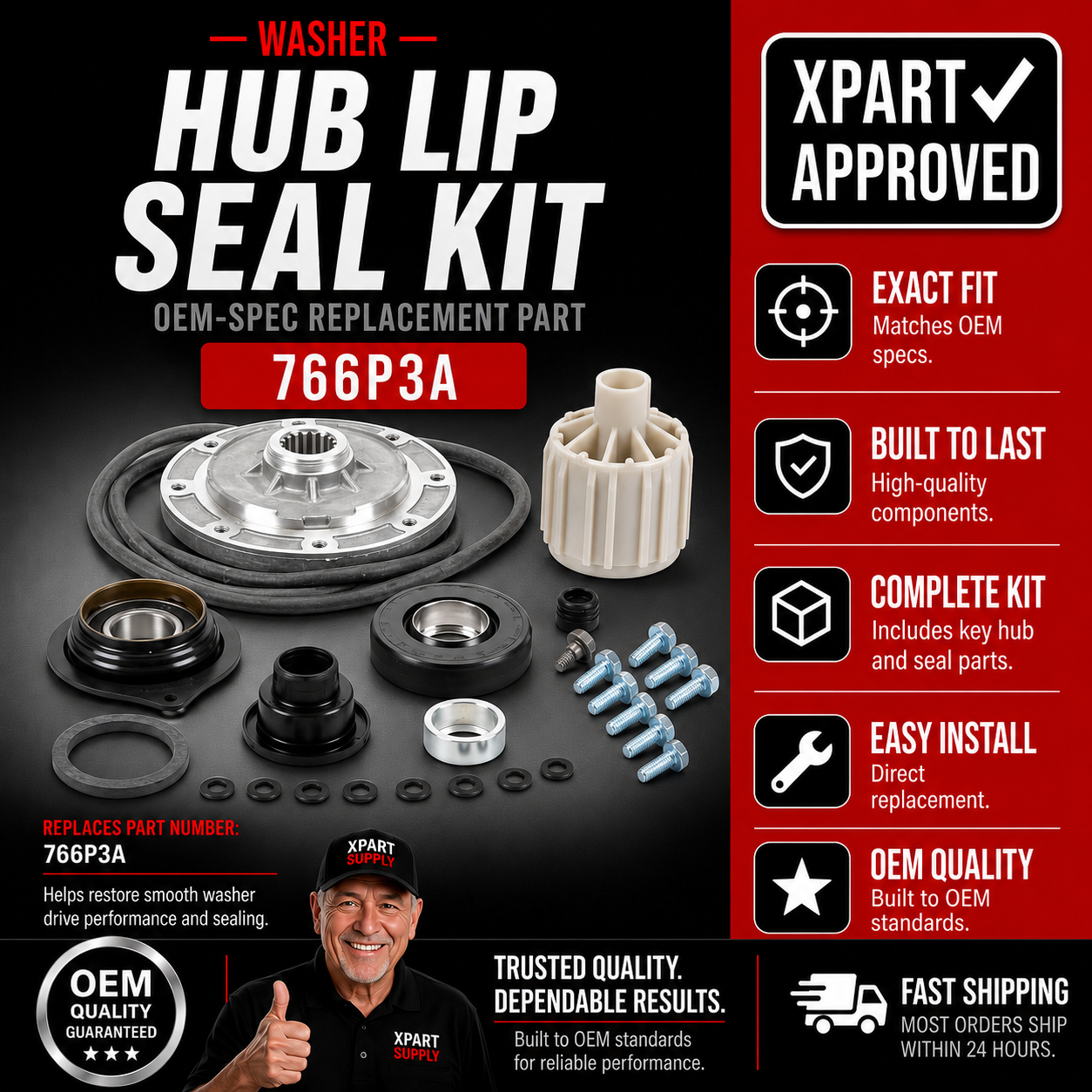

The Speed Queen 766P3A Hub and Lip Seal Kit is a genuine Alliance Laundry Systems OEM part. It seals the area between the washer drive shaft and wash tub to help prevent water from leaking into the drive and transmission area. It replaces discontinued part numbers 200512 and 766P3 when fitment is confirmed by the complete appliance model number.

Is This the Right Part?

Confirm the complete model and serial number before ordering. Similar parts may use different shaft dimensions, seal profiles, or mounting configurations. This kit fits select Alliance-manufactured top-load washers — not all Speed Queen models.

Common Symptoms

• Water leaking beneath the washer during or after the wash cycle
• Moisture or water pooling around the transmission or drive shaft area
• Grinding, squealing, or unusual noise during the spin cycle
• Tub movement, wobble, or alignment problems
• Poor washing or spin performance linked to drive-area wear

Check Before Replacing

• Inspect the drive bell (39508P) — Alliance requires it be replaced with this kit
• Check the tub bearing and transmission shaft for corrosion or wear
• Inspect the outer tub and hub mounting surfaces for cracks or damage
• Verify the drain system is not the source of the leak before disassembly

Part Details

Installation Notes

1. Disconnect electrical power and shut off the water supply before disassembly.
2. Photograph wiring, hoses, clamps, and mounting positions before removal.
3. Major tub and drive-system disassembly is required — professional installation may be appropriate.
4. Compare the new part with the original before installation.
5. Order drive-bell kit 39508P before beginning the repair — Alliance specifies both parts must be replaced together.
6. Confirm whether sealant 200996P is required per the applicable Alliance service procedure.
7. Test the appliance and check for leaks, unusual sounds, or error codes after reassembly.

Gas parts should be installed by a licensed technician. Major tub and drive-system disassembly may be required — professional installation may be appropriate for this repair.

Verified Compatible Models

AWN311SP111TW01, AWN312SP303LW22, AWN402PP111TW01, AWN412SP111TW01, AWN432SP111TW01, AWN542SP111TW01, LWN432SP113TW04

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering. This kit fits select Alliance-manufactured top-load washers — confirm your model and serial number. Used on select Speed Queen, Alliance, Huebsch and related top-load washer platforms.
