LG Washer Drain Hose Assembly AEM73732901, Replaces 5215EA1001A, AEM73653001, AEM73653101, AEM73693401, AEM73732903, AEM74053001, AEM74073301, MEJ62685201

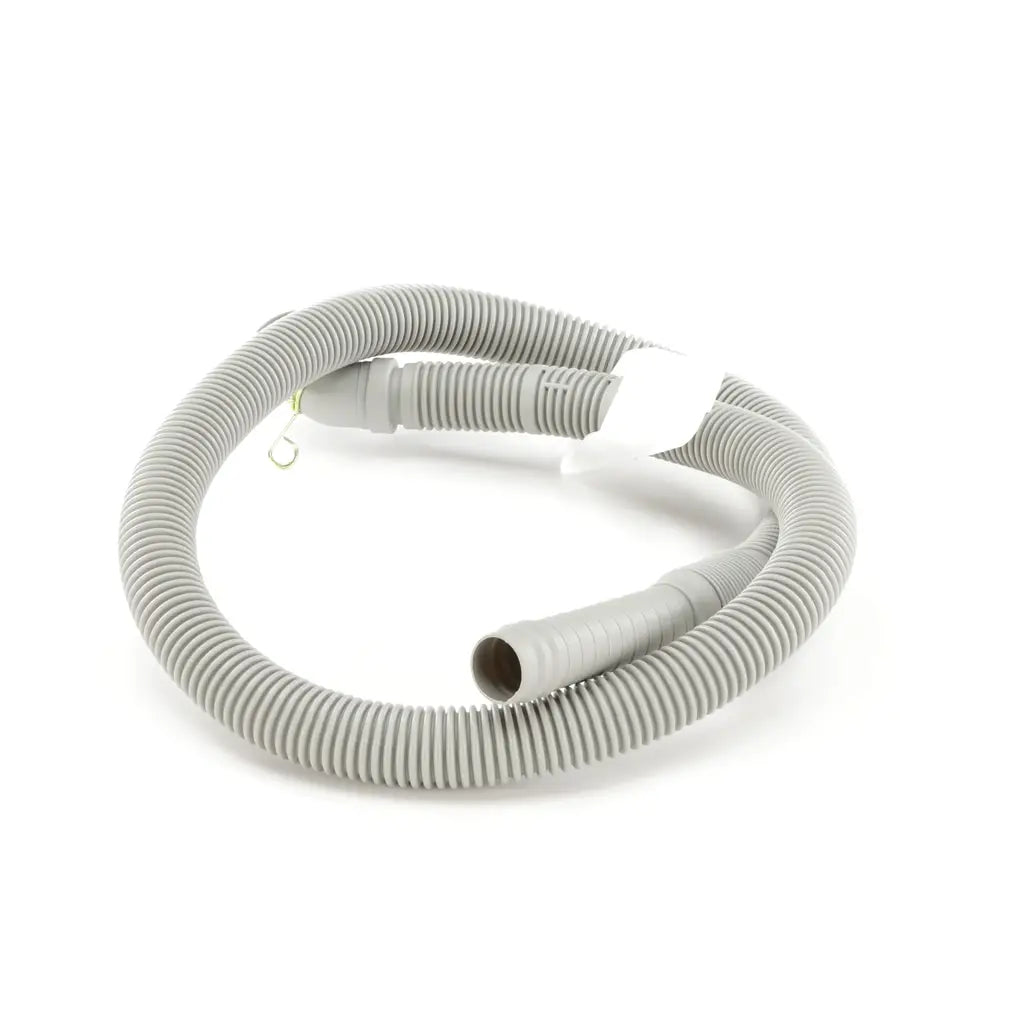

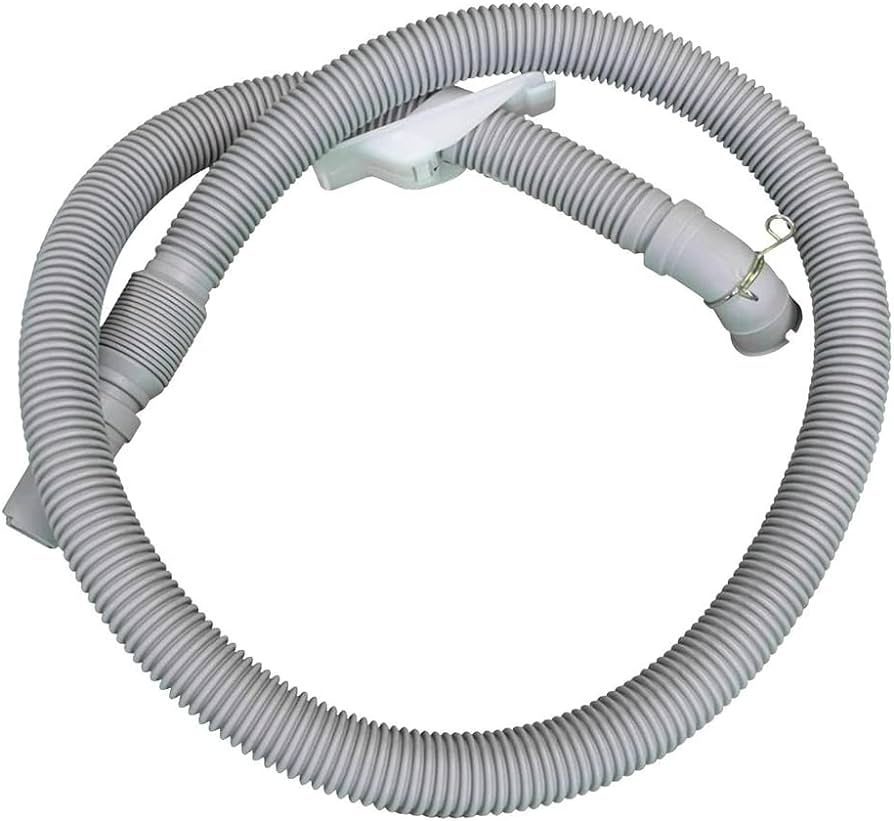

Genuine LG washer drain hose assembly that carries used water from the washer to the household drain.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer leaks during draining
• Water drains slowly or does not drain because the hose is kinked, crushed, or clogged
• Drain hose or connection has visible cracks, splits, or holes
• Water overflows at the household standpipe because of a restricted drain path

Check Before Replacing

• Unplug the washer before inspecting the hose.
• Visually inspect the entire hose for cracks, splits, holes, kinks, crushing, or pinching.
• Check that the hose connections and mounting points are secure and not leaking.
• Confirm that the household standpipe or drain accepts water without backing up; do not assume a washer drain-hose fault if the standpipe overflows.
• After service, observe a drain cycle for leaks while keeping hands clear of moving parts and electrical connections.

Pro Tip

Part Details

Key Features

• Genuine LG washer drain hose assembly
• LG identifies the part as a washer drain hose
• Approximate length: 1.7 m
• Includes the hose-and-connector assembly used for routing washer discharge water
• LG specifies that the elbow bracket should be connected within 4 inches (10 cm) of the hose end

Installation Notes

• Disconnect washer power before installation and follow the model-specific service or owner’s manual.
• Shut off the water supply before servicing the washer.
• Route the hose without stretching, pinching, crushing, twisting, or kinking it.
• Clip the hose end into the elbow bracket and keep the bracket within 4 inches (10 cm) of the hose end, as specified by LG.
• Insert the hose end into the standpipe and secure it so it cannot come loose during draining.
• Check all hose connections for leaks after installation.

Verified Compatible Models

25667, 31512, 31522, 31552, 31622, 42652115, 79631433710, 79631552610, 79631553610, T1309ADFH, T1309ADFH6, T1309ADFN, WT901CF, WT901CW, WT1001CW, WT1101CW, WT1150CW, WT1201CV, WT1201CW, WT1301CW, WT1501CW, WT1701CV, WT1701CW, WT1801HVA, WT1901CK, WT1901CW, WT4801CW, WT4870CW, WT4970CW, WT5001CW, WT5070CW, WT5075CW, WT5101HV, WT5101HW, WT5170HV, WT5170HW, WT5170WH, WT5270CW, WT5480CW, WT5680HVA, WT5680HVA/01, WT5680HWA, WT7200CW, WT7300CV, WT7300CW, WT7500CW, WT7600HKA, WT7600HWA, WT7700HVA, WT7700HWA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
