AUTOMOTIVE PART

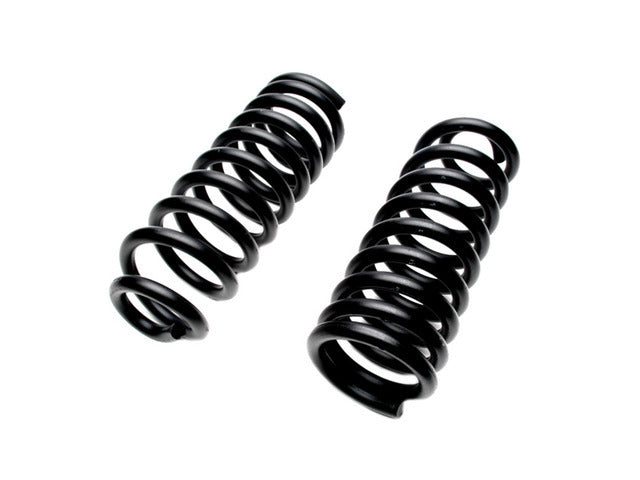

Moog Coil Spring Set CC840
Coil Spring Set, Variable Rate
Part CC840MoogCoil Spring Set
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part NumberCC840
ManufacturerMoog
Part TypeCoil Spring Set
Part Details
Part Specifications
| Bar Diameter - Inches | 0.65 |
|---|---|
| Bar Diameter - MM | 16.70 |
| Free Height - Inches | 13.75 |
| Free Height - MM | 349.30 |
| Front Spring Compressed Length | 10.50 IN |
| Front Spring Outside Diameter | 4.800 IN |
| Front Spring Relaxed Length | 13.75 IN |
| Installation Height - Inches | 10.50 |
| Installation Height - MM | 266.70 |
| ID - Inches | 3.50 |
| ID - MM | 88.90 |
| Load - lbs | 1323.00 |
| Spring Color | Black |
| Spring Rate - lbs per inch | 377.00 |
| Spring Type | Variable Rate |
| Wire Diameter | 16.70 MM |
Verified Vehicle Fitment
Make: Ford, Mazda
Model: 4 verified models — see exact combinations below.
Years: 1983–1997 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (115 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 1985 | Ford | Ranger | Front | Body Type: Cab & Chassis; Drive Type: RWD; Engine: 2.8 V6; Heavy Duty, Variable Rate |
| 1986 | Ford | Ranger | Front | Body Type: Cab & Chassis; Drive Type: RWD; Engine: 2.9 V6; Heavy Duty, Variable Rate |
| 1989, 1992 | Ford | Ranger | Front | Body Type: Extended Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Heavy Duty, Variable Rate |
| 1986–1988 | Ford | Ranger | Front | Body Type: Extended Cab Pickup; Engine: 2.3 L4; Heavy Duty, Variable Rate |
| 1986–1987 | Ford | Ranger | Front | Body Type: Extended Cab Pickup; Fuel Type: Diesel; Heavy Duty, Variable Rate |
| 1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Doors: 2; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: XL; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Doors: 2; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: XLT; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Doors: 2; Drive Type: RWD; Engine: 2.3 L4; Sub Model: Splash; Heavy Duty, Variable Rate |
| 1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Doors: 2; Drive Type: RWD; Engine: 2.3 L4; Sub Model: Sport; Heavy Duty, Variable Rate |
| 1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Doors: 2; Drive Type: RWD; Engine: 2.3 L4; Sub Model: XL; Heavy Duty, Variable Rate |
| 1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Doors: 2; Drive Type: RWD; Engine: 2.3 L4; Sub Model: XLT; Heavy Duty, Variable Rate |
| 1994–1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: Splash; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1993 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: Sport; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: XL Sport; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1993–1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: XL; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1993–1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: XLT; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1985 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Transmission: Automatic; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1996 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.9 V6; Sub Model: Custom; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.9 V6; Sub Model: STX; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.9 V6; Sub Model: XLT; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1986–1987 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.9 V6; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1986–1987 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Fuel Type: Diesel; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Sub Model: Custom; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Sub Model: STX; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Sub Model: XLT; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1986–1987 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Sub Model: Custom; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1994 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Sub Model: Splash; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Sub Model: STX; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1994 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Sub Model: XL; Heavy Duty, Variable Rate |
| 1994 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Sub Model: XLT; Heavy Duty, Variable Rate |
| 1995–1996 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: Custom; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: Custom; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: STX; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: STX; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: XLT; Heavy Duty, Variable Rate |
| 1987 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Heavy Duty, Variable Rate |
| 1986–1987 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Fuel Type: Diesel; Heavy Duty, Variable Rate |
| 1992 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 2.3 L4; Sub Model: Custom; Heavy Duty, Variable Rate |
| 1992 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 2.3 L4; Sub Model: Sport; Heavy Duty, Variable Rate |
| 1992 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 2.3 L4; Sub Model: STX; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 2.3 L4; Sub Model: XLT; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1992 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 2.3 L4; Sub Model: XLT; Heavy Duty, Variable Rate |
| 1985 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 2.8 V6; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 2.9 V6; Sub Model: XLT; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1985 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Fuel Type: Diesel; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Drive Type: 4WD; Engine: 2.9 V6; Sub Model: S; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Drive Type: 4WD; Sub Model: S; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1993 | Ford | Ranger | Front | Drive Type: RWD; Engine: 2.3 L4; Sub Model: Sport; Heavy Duty, Variable Rate |
| 1993 | Ford | Ranger | Front | Drive Type: RWD; Engine: 2.3 L4; Sub Model: STX; Heavy Duty, Variable Rate |
| 1993 | Ford | Ranger | Front | Drive Type: RWD; Engine: 2.3 L4; Sub Model: XL; Heavy Duty, Variable Rate |
| 1993 | Ford | Ranger | Front | Drive Type: RWD; Engine: 2.3 L4; Sub Model: XLT; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Drive Type: RWD; Engine: 2.9 V6; Sub Model: S; Heavy Duty, Variable Rate |
| 1983 | Ford | Ranger | Front | Engine: 2.0 L4; Heavy Duty, Variable Rate |
| 1983 | Ford | Ranger | Front | Engine: 2.2 L4; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Engine: 2.3 L4; Sub Model: S; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1992 | Ford | Ranger | Front | Engine: 2.3 L4; Sub Model: S; Heavy Duty, Variable Rate |
| 1993 | Ford | Ranger | Front | Engine: 2.3 L4; Sub Model: Splash; Heavy Duty, Variable Rate |
| 1983, 1990–1991 | Ford | Ranger | Front | Engine: 2.3 L4; Heavy Duty, Variable Rate |
| 1984 | Ford | Ranger | Front | Engine: 2.8 V6; Transmission: Automatic; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Engine: 2.9 V6; Sub Model: S; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1989 | Ford | Ranger | Front | Sub Model: GT; Wheel Base: 108.0; Heavy Duty, Variable Rate |
| 1988 | Ford | Ranger | Front | Sub Model: GT; Heavy Duty, Variable Rate |
| 1994–1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: Splash; Wheel Base: 108.0; Heavy Duty, with Air Conditioning, Variable Rate |
| 1993 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: Sport; Wheel Base: 108.0; Heavy Duty, with Air Conditioning, Variable Rate |
| 1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: XL Sport; Wheel Base: 108.0; Heavy Duty, with Air Conditioning, Variable Rate |
| 1993–1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: XL; Wheel Base: 108.0; Heavy Duty, with Air Conditioning, Variable Rate |
| 1993–1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Sub Model: XLT; Wheel Base: 108.0; Heavy Duty, with Air Conditioning, Variable Rate |
| 1996–1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 2.3 L4; Wheel Base: 108.0; Heavy Duty, with Air Conditioning, Variable Rate |
| 1984 | Ford | Ranger | Front | Engine: 2.8 V6; Transmission: Manual; Heavy Duty, with Air Conditioning, Variable Rate |
| 1994 | Ford | Ranger | Front | Body Type: Extended Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Sub Model: Splash; Heavy Duty, without Air Conditioning, Variable Rate |
| 1994 | Ford | Ranger | Front | Body Type: Extended Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Sub Model: XL; Heavy Duty, without Air Conditioning, Variable Rate |
| 1994 | Ford | Ranger | Front | Body Type: Extended Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Sub Model: XLT; Heavy Duty, without Air Conditioning, Variable Rate |
| 1995–1997 | Ford | Ranger | Front | Body Type: Extended Cab Pickup; Drive Type: RWD; Engine: 2.3 L4; Heavy Duty, without Air Conditioning, Variable Rate |
| 1994–1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 4.0 V6; Sub Model: Splash; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1993, 1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 4.0 V6; Sub Model: Sport; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 4.0 V6; Sub Model: XL Sport; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1993–1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 4.0 V6; Sub Model: XL; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1993–1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Engine: 4.0 V6; Sub Model: XLT; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1990–1991 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: Custom; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1990 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: S Plus; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1991 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: Sport; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1990–1991 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: STX; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1990–1991 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Sub Model: XLT; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1992 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 3.0 V6; Sub Model: Custom; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1992 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 3.0 V6; Sub Model: Sport; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1992–1993 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 3.0 V6; Sub Model: STX; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1993 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 3.0 V6; Sub Model: XL; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1992 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 3.0 V6; Sub Model: XLT; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1994–1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 3.0 V6; Sub Model: Splash; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1993, 1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 3.0 V6; Sub Model: Sport; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1995 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 3.0 V6; Sub Model: XL Sport; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1994–1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 3.0 V6; Sub Model: XL; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1993–1997 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Engine: 3.0 V6; Sub Model: XLT; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1992 | Ford | Ranger | Front | Drive Type: RWD; Engine: 3.0 V6; Sub Model: S; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1990–1991 | Ford | Ranger | Front | Engine: 2.9 V6; Sub Model: S; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1993 | Ford | Ranger | Front | Engine: 3.0 V6; Sub Model: Splash; Heavy Duty, without Air Conditioning, Variable Rate |
| 1986 | Ford | Ranger | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Engine: 2.9 V6; Variable Rate |
| 1995–1996 | Mazda | B2300 | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Wheel Base: 114.0; Heavy Duty, Variable Rate |
| 1995–1996 | Mazda | B2300 | Front | Body Type: Standard Cab Pickup; Drive Type: RWD; Sub Model: Base; Heavy Duty, Variable Rate |
| 1994 | Mazda | B2300 | Front | Body Type: Standard Cab Pickup; Sub Model: Base; Heavy Duty, Variable Rate |
| 1995–1997 | Mazda | B2300 | Front | Body Type: Standard Cab Pickup; Sub Model: SE; Heavy Duty, Variable Rate |
| 1997 | Mazda | B2300 | Front | Sub Model: Base; Heavy Duty, Variable Rate |
| 1994 | Mazda | B2300 | Front | Sub Model: SE; Heavy Duty, Variable Rate |
| 1995–1996 | Mazda | B2300 | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Wheel Base: 108.0; Heavy Duty, with Air Conditioning, Variable Rate |
| 1995–1996 | Mazda | B2300 | Front | Body Type: Extended Cab Pickup; Drive Type: RWD; Sub Model: Base; Heavy Duty, without Air Conditioning, Variable Rate |
| 1995–1996 | Mazda | B2300 | Front | Body Type: Extended Cab Pickup; Sub Model: SE; Heavy Duty, without Air Conditioning, Variable Rate |
| 1994, 1997 | Mazda | B2300 | Front | Body Type: Extended Cab Pickup; Heavy Duty, without Air Conditioning, Variable Rate |
| 1994 | Mazda | B3000 | Front | Body Type: Standard Cab Pickup; Wheel Base: 108.0; Standard Duty, Variable Rate |
| 1995 | Mazda | B3000 | Front | Body Type: Standard Cab Pickup; Standard Duty, Variable Rate |
| 1997 | Mazda | B3000 | Front | Wheel Base: 108.0; Standard Duty, Variable Rate |
| 1994 | Mazda | B4000 | Front | Body Type: Standard Cab Pickup; Drive Type: 4WD; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
| 1995–1997 | Mazda | B4000 | Front | Body Type: Standard Cab Pickup; Wheel Base: 108.0; Heavy Duty, without Air Conditioning, Variable Rate |
Source: supplier-verified applications for Moog CC840. A vehicle not listed is not confirmed compatible.
