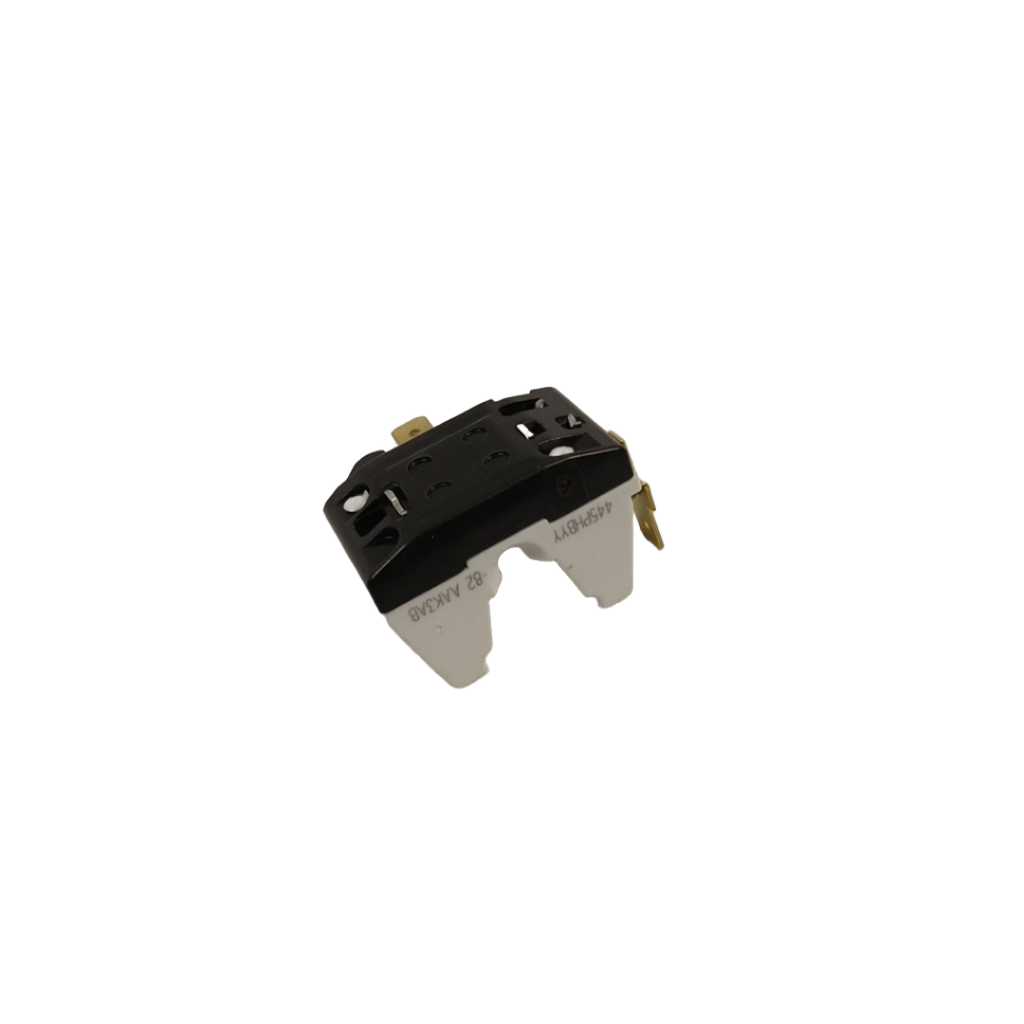

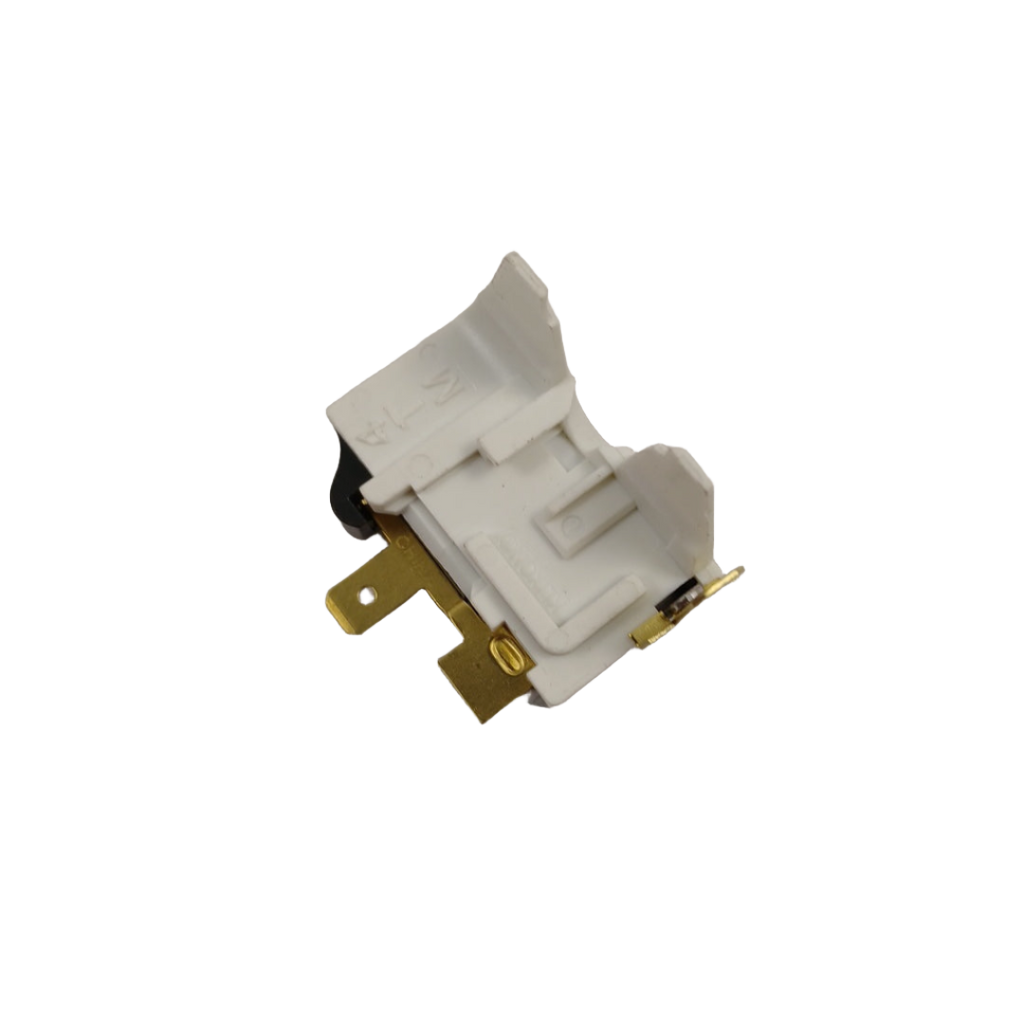

Samsung Refrigerator Relay Protector O/L (compressor overload protector/overload relay) DA34-00004D, Fixes Compressor fails to start or repeatedly shuts off, with little or no cooling
Genuine Samsung compressor relay/overload protector. It disconnects the refrigerator compressor when excessive current is drawn, helping protect the compressor from overload damage.
Is This the Right Part?
✅ Cross Reference Information
Common Symptoms
- Refrigerator and freezer sections warming because the compressor does not sustain operation
- Compressor starts briefly, clicks, and shuts off as the overload trips
- Compressor area becomes unusually hot
- Fans may operate while the compressor does not run consistently
Check Before Replacing
- Unplug the refrigerator before accessing or testing the compressor-area component.
- With power disconnected and the protector at room temperature, check continuity across its terminals; an open circuit can indicate a failed overload protector.
- Observe whether the compressor starts and then stops while fans continue running; this can indicate a compressor-start or overload-related issue but does not by itself confirm this part is defective.
- Check the refrigerator's stored diagnostic codes according to the appliance service documentation before replacing the protector.
- Do not bypass the overload protector; verify the compressor, start relay, inverter, wiring, and control system as applicable.
Pro Tip
Part Details
Installation Notes
- Disconnect electrical power before servicing.
- Access the compressor compartment and identify the protector's original orientation and terminal connections before removal.
- Install the replacement on the compressor terminals in the same orientation and reconnect the wiring securely.
- Do not bypass, defeat, or modify the overload protector.
- After reassembly, restore power and confirm that the compressor starts and continues operating; compressor or sealed-system repairs may require a qualified technician.
Verified Compatible Models
RF22K9381SG/AA, RF22K9381SR/AA, RF22K9581SG/AA, RF22K9581SR/AA, RF22KREDBSG/AA, RF22KREDBSR/AA, RF23HSESBSR/AA, RF23J9011SG/AA, RF23J9018SR/AA, RF24J9960S4/AA, RF28HDEDBSR/AA, RF28HDEDPBC/AA, RF28HDEDPWW/AA, RF28HDEDTSR/AA, RF28HFEDBBC/AA, RF28HFEDBSR/AA, RF28HMEDBBC/AA, RF28HMEDBSR/AA, RF28HMEDBWW/AA, RF28JBEDBSG/AA, RF28JBEDBSR/AA, RF28K9070SG/AA, RF28K9070SR/AA, RF28K9380SG/AA, RF28K9380SR/AA, RF28K9580SG/AA, RF28K9580SR/AA, RF30HBEDBSR/AA, RF30KMEDBSR/AA, RF261BEAESR/AA, RF263BEAESR/AA, RF263TEAESR/AA, RF263TEAEWW/AA, RF267AERS/XAA, RF267AEWP/XAA, RF268ACRS/XAA, RF323TEDBBC/AA, RF323TEDBSR/AA, RF4267HARS/XAA, RF4287HARS/XAA, RF4287HARS/XAC, RFG29PHDWP/XAA, RFG297HDBP/XAA, RFG298HDWP/XAA, RS22HDHPNSR/AA, RS265TDRS/XAA, RS265TDWP/XAA, RS267TDRS/XAA, RSG257AARS/XAA, RSG307AARS/XAA
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
