Washer Drum Not Spinning? Samsung Flange Shaft Assembly DC97-16509C – Fix Drum Failure Fast
If your Samsung front-load washer drum has stopped spinning or is making a grinding noise, the flange shaft assembly is the most common cause. In most Samsung front-load washers, the flange shaft assembly connects the drum to the drive system. When it fails, the drum may spin erratically, make loud grinding or scraping sounds, or stop rotating entirely — leaving clothes soaking wet. ⚡ Common failure point in Samsung-built front-load washers. Part DC97-16509C is the genuine OEM replacement that restores full drum rotation and eliminates bearing-related noise.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ QUALIFIER 1 — Washer powers on and control panel responds normally
- ✔ QUALIFIER 2 — Water fills and drains correctly
- ✔ QUALIFIER 3 — Drive motor and belt confirmed functional
- ✔ ONLY problem is drum not spinning, grinding noise, or drum wobble
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Drum does not spin during wash or spin cycle
- Loud grinding, scraping, or rumbling noise during operation
- Drum wobbles or feels loose when rotated by hand
- Clothes remain soaking wet after spin cycle completes
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing the flange shaft assembly restores normal drum operation immediately.
📦 Part Details

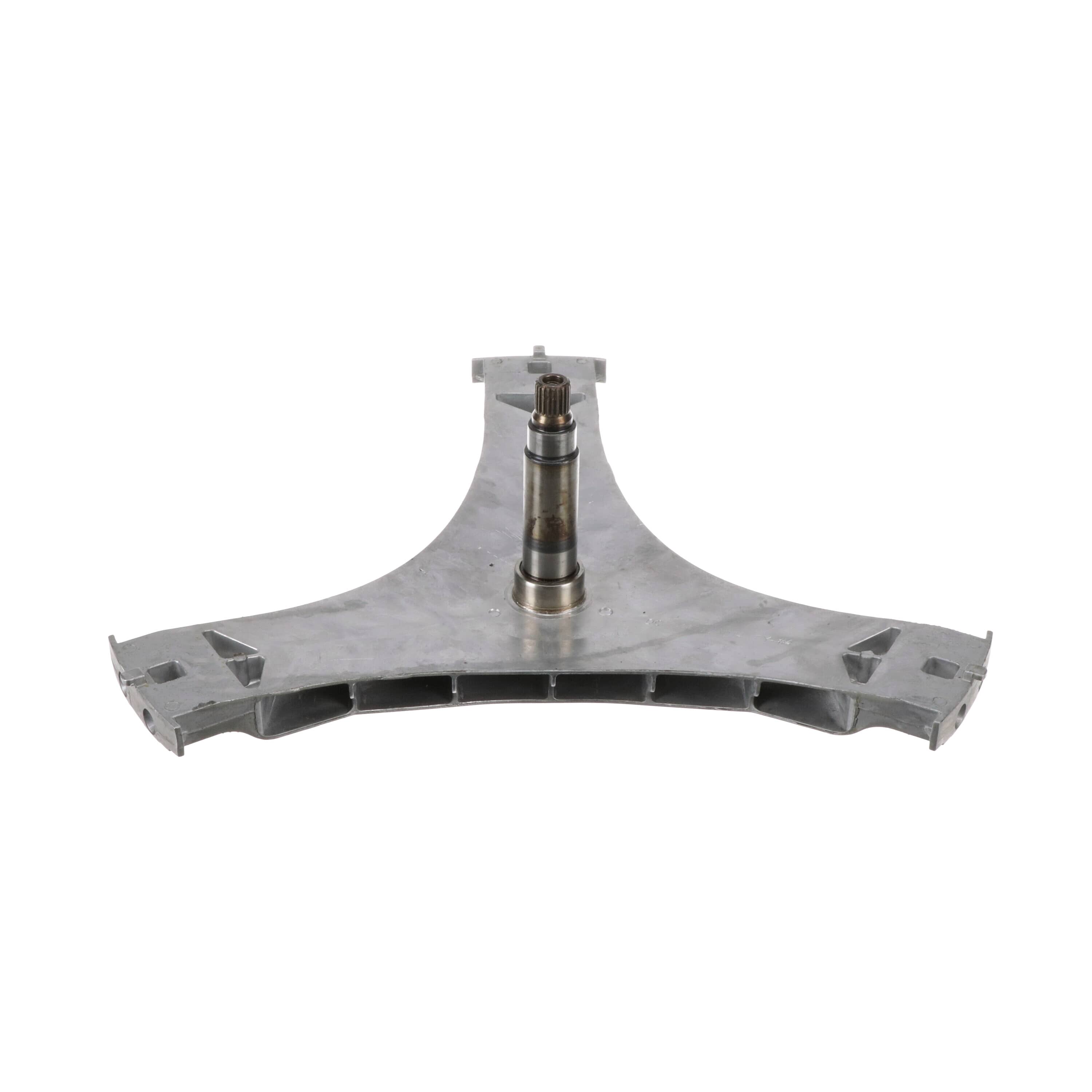

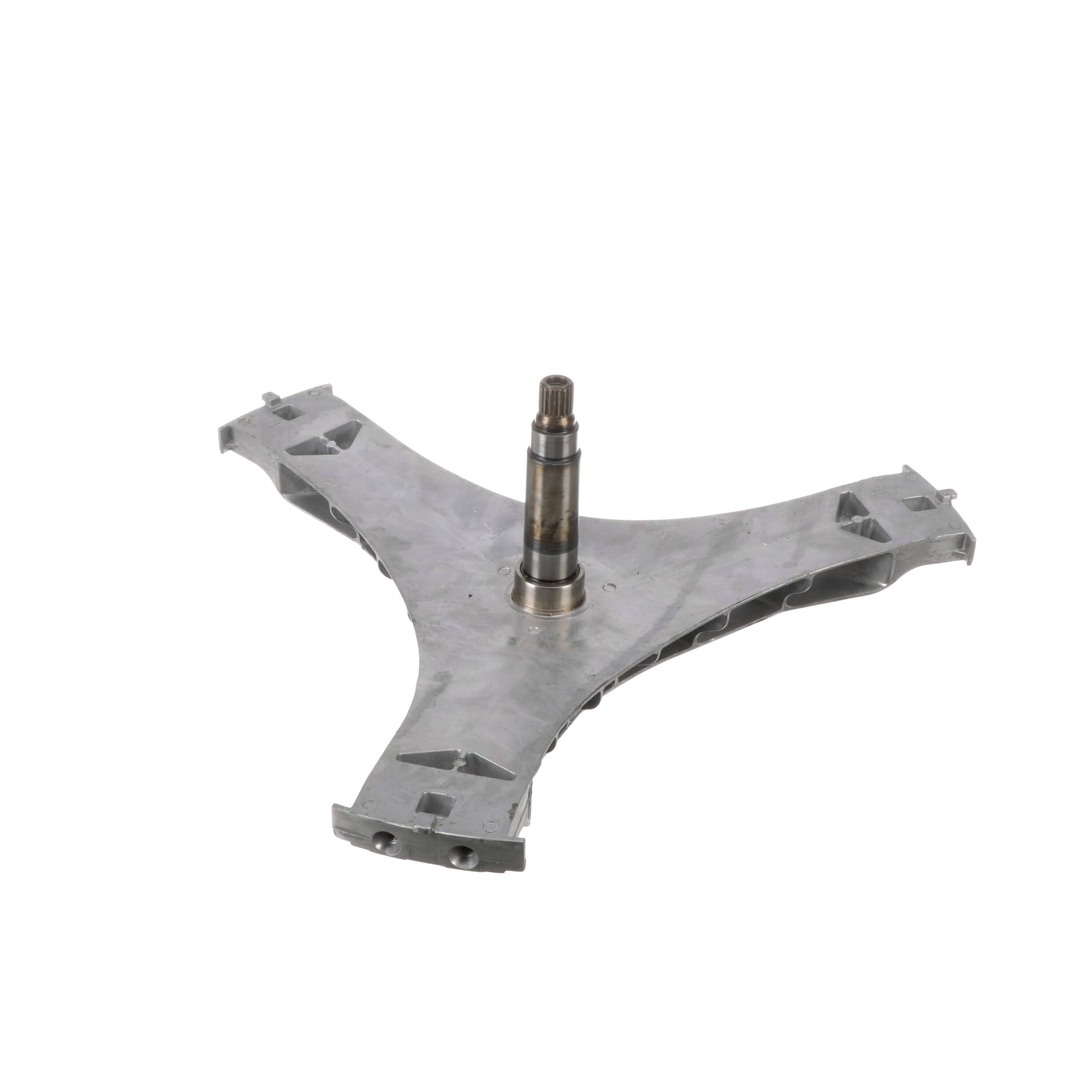

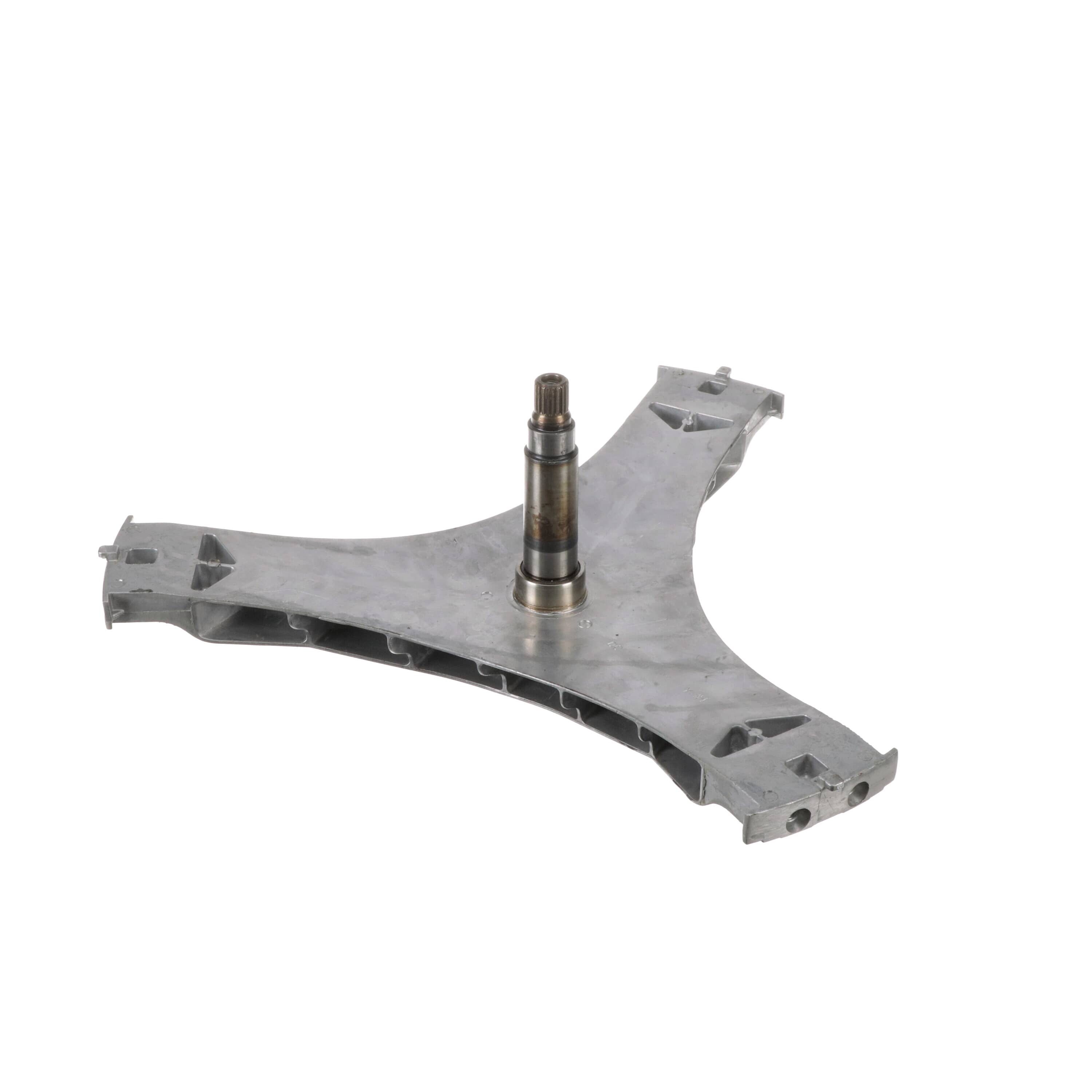

- Part Number: DC97-16509C
- Type: Washer Drum Flange Shaft Assembly — connects drum to drive system
- Replaces: DC97-16509C (OEM direct replacement)
- Brands: Samsung
While the drum is disassembled, inspect the drum bearing and spider arm for wear or cracking — these components often fail together. Replacing them at the same time avoids a repeat repair within months.
⚙️ Installation
Skill Level: ADVANCED — 60–90 minutes. Disconnect power before servicing. This repair requires full drum disassembly: remove the front panel, door boot seal, and drum assembly to access the flange shaft. Reassemble in reverse order and run a test spin cycle before closing the machine.
✓ Compatible Models
Confirmed compatible with WF457ARGSG, WF42H5200AP/A2, WF45K6200AW/A2, WF45M5500AP/A5, WF45M5500AZ/A5, WV55M9600AW/A5, WF45K6500AW/A2, WF45K6500AV/A2, WF45N5300AV/US, WV55M9600AV/A5, WF45N5300AW/US, WF45M5500AW/A5, WF455ARGSWR/A2, WF45H6300AW/A2, WF435ATGJRA/A2, WF45H6300AG/A2, WF45H6100AP/A2, WF45K6200AZ/A2 plus additional Samsung front-load models. Contact us to verify your model number before ordering.
💡 Pro Tip
The drum bearing sits directly behind the flange shaft and wears at the same rate. If you're already doing this repair, adding the bearing kit takes only 15 extra minutes and eliminates the most common reason customers call back. Ask us about the bearing kit for your model.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
