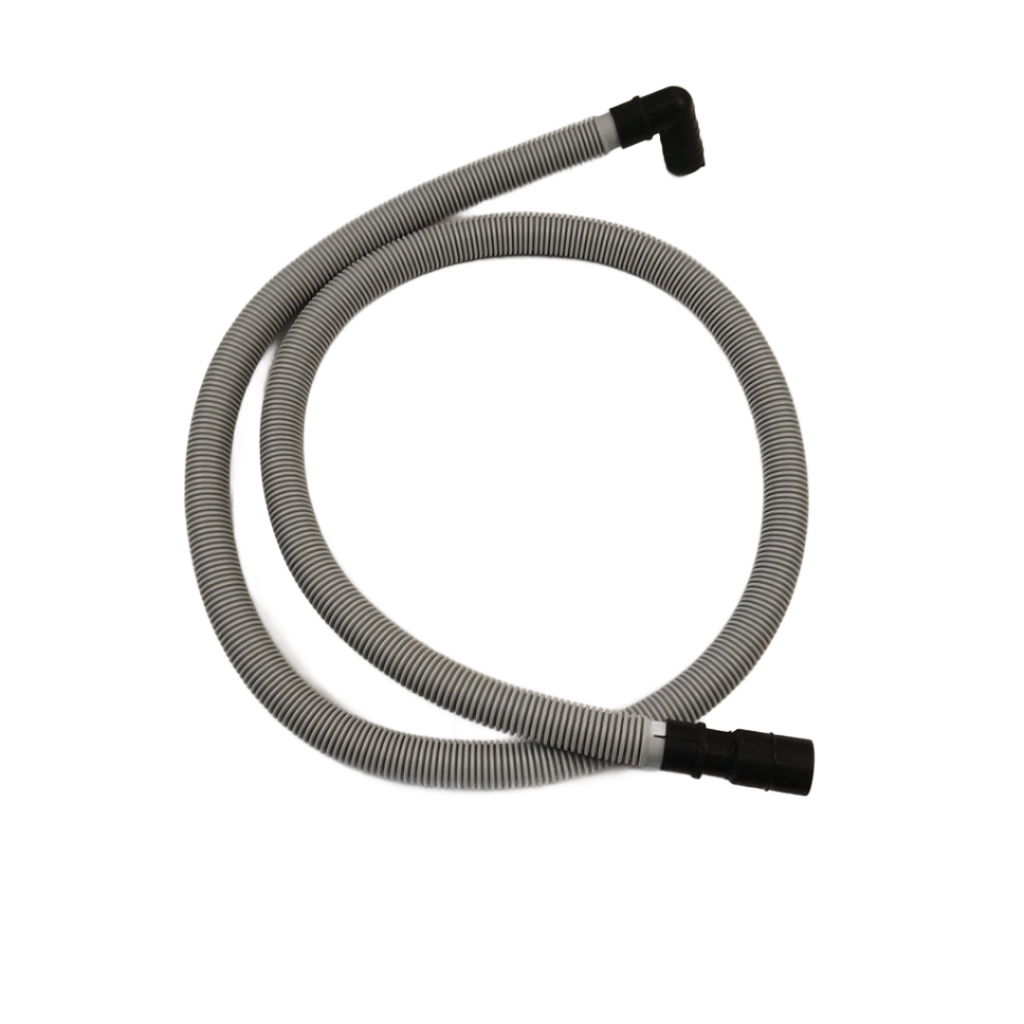

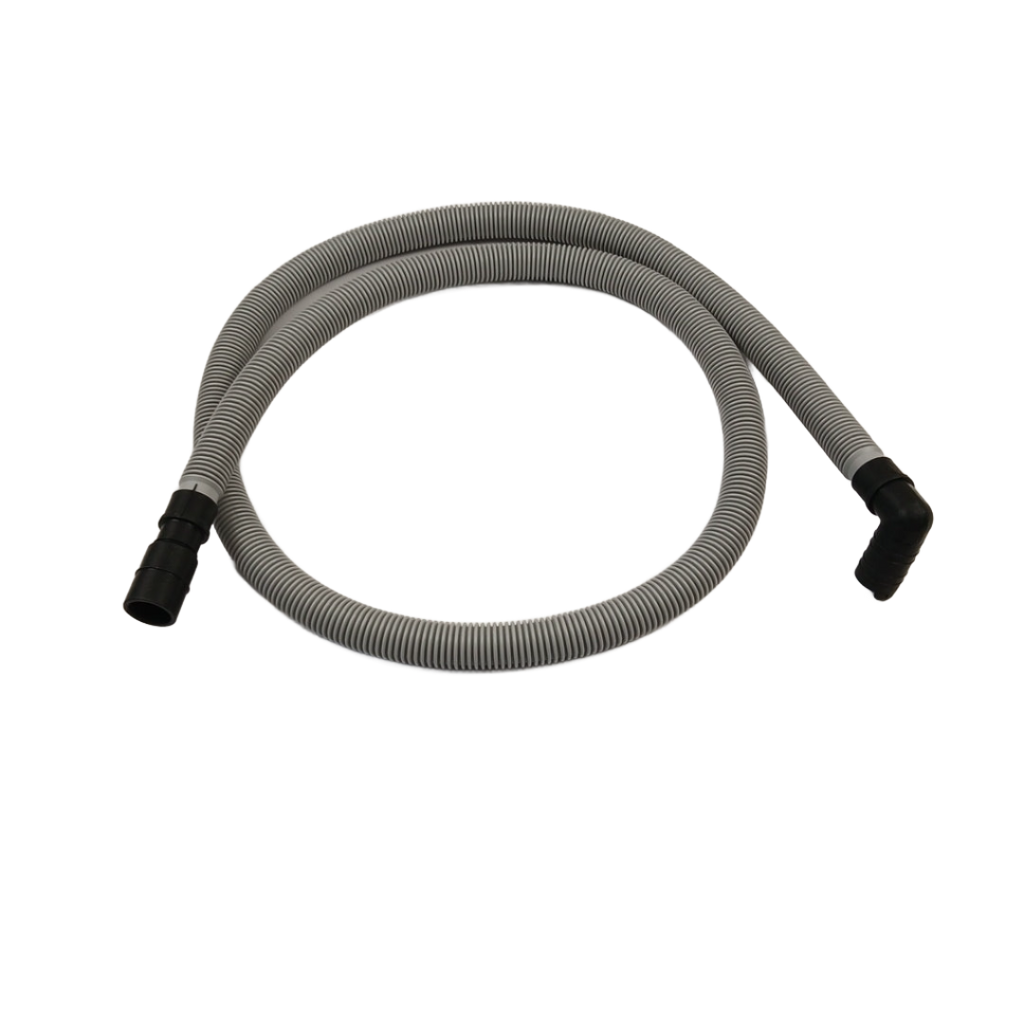

Samsung Dishwasher Drain Hose Assembly DD97-00403E, Replaces DD97-00403A

OEM drain hose assembly that carries wastewater from a Samsung dishwasher to the household drain. The part is used to restore drainage and address leaking or damaged-hose conditions.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Water leakage during or after a cycle
• Dishwasher not draining when the hose is kinked, obstructed, or clogged
• Water backup associated with a restricted drain-hose connection

Check Before Replacing

• With power disconnected, visually inspect the hose for cracks, splits, flattened sections, or kinks.
• Check both hose connections and nearby surfaces for water or residue indicating a possible leak.
• Inspect the hose connection at the sink drain or garbage-disposer branch for visible blockage or debris.
• Confirm that the hose follows the original routing and is not pinched or obstructed.
• If the hose appears intact, also check the dishwasher filter, drain pump, and household drain before attributing the symptom to this hose.

Pro Tip

Part Details

Key Features

• Samsung OEM dishwasher drain hose assembly
• Designed to carry dishwasher wastewater to the household drain
• Full-length black rubber hose assembly
• May be cut to size where permitted by the model-specific installation guidance
• Exact part number: DD97-00403E

Installation Notes

• Disconnect electrical power before servicing the dishwasher and follow the model-specific service or installation documentation.
• Shut off the water supply before beginning work, as recommended by the supplier’s installation guidance.
• Disconnect the old hose from the dishwasher and household drain connections, then install the replacement using the original routing and connection points.
• Ensure the hose is seated securely at each connection and is free of kinks or pinch points.
• After installation, inspect for leaks during a controlled test cycle before returning the dishwasher to normal use.

Verified Compatible Models

DW80J9945US/AC-0002, DW80M9550UG/AA-0000, DW80M9550US/AA-0000, DW80M9960UG/AA-0000, DW80M9960US/AA-0000, DDW24G9000APDA, DDW24M999UM, DDW24M999US, DDW24T999BB, DW60M9990AP, DW80B6060UG, DW80B6060UG/AA, DW80B6060US, DW80B6060US/AA, DW80B6061UG, DW80B6061US, DW80B6061US/AA, DW80B7070AP, DW80B7070AP/AA, DW80B7070UG

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
