Samsung Oven Not Heating? Bake Element DG47-00038B – Fix No-Heat & Uneven Baking Fast

If your Samsung electric range oven won't heat, bakes unevenly, or takes far too long to preheat, a failed bake element is the most common cause — and this is the exact part to fix it. In most Samsung NE59-series electric ranges, the bake element sits at the bottom of the oven cavity and provides the primary heat source for every bake and broil cycle. When it fails — due to a visible break, internal open circuit, or burn spot — the oven may heat partially, not at all, or produce hot and cold spots that ruin baking results. ⚡ One of the most common failure points in Samsung electric ranges. Part DG47-00038B is the genuine OEM replacement (and our premium XPart aftermarket alternative) that restores full, even oven heat immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Range powers on — clock, display, and surface burners work normally
• ✔ Broil element (top) heats correctly — only the bake (bottom) is the issue
• ✔ No error codes on the display related to the control board or temperature sensor
• ✔ ONLY problem is oven not heating, heating slowly, or baking unevenly from the bottom

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Oven not heating or heating very slowly
• Element not glowing red when the oven is on
• Uneven baking — food burns on top but is raw on the bottom
• Visible cracks, burn holes, or blistering on the element surface

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this bake element restores full, even oven heat immediately.

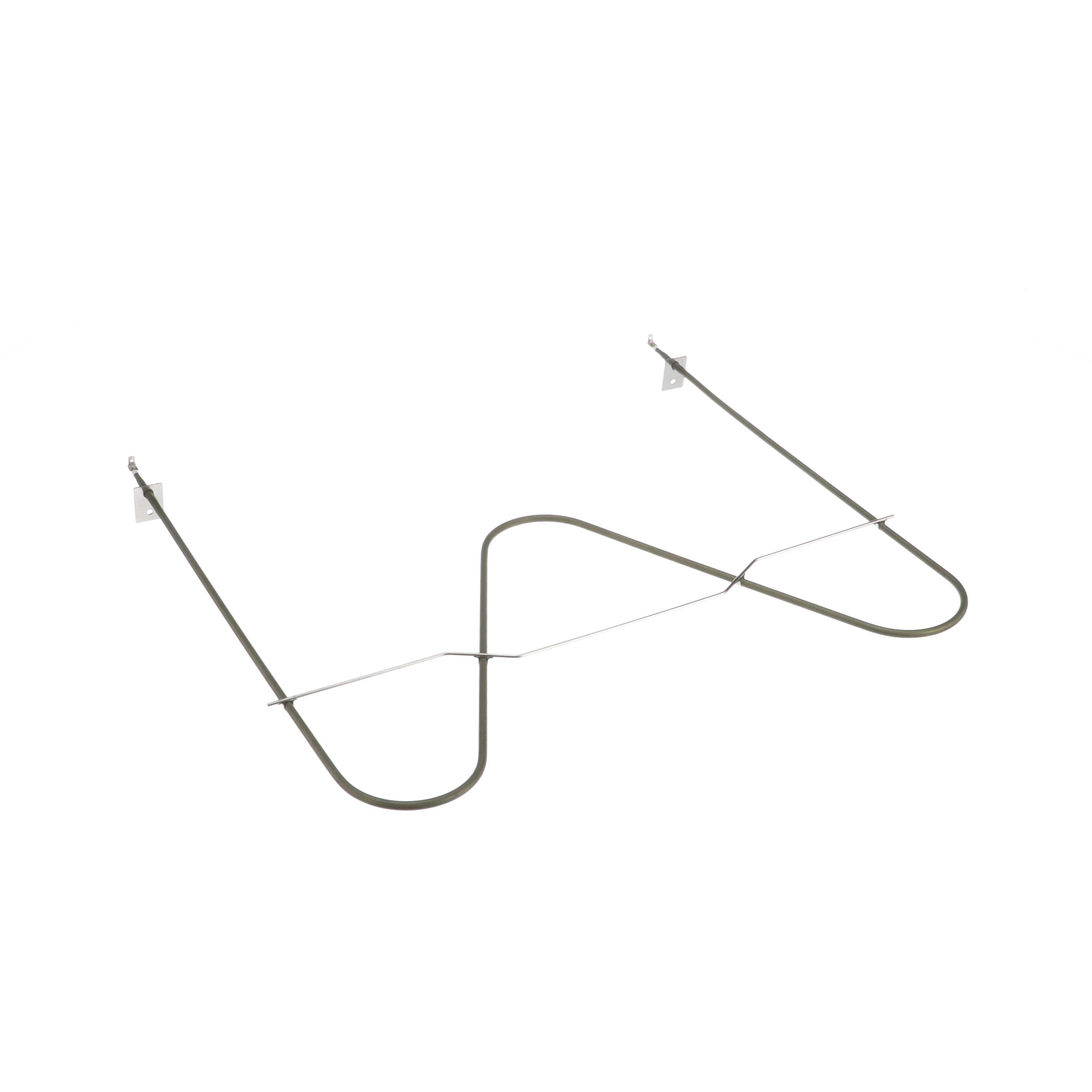

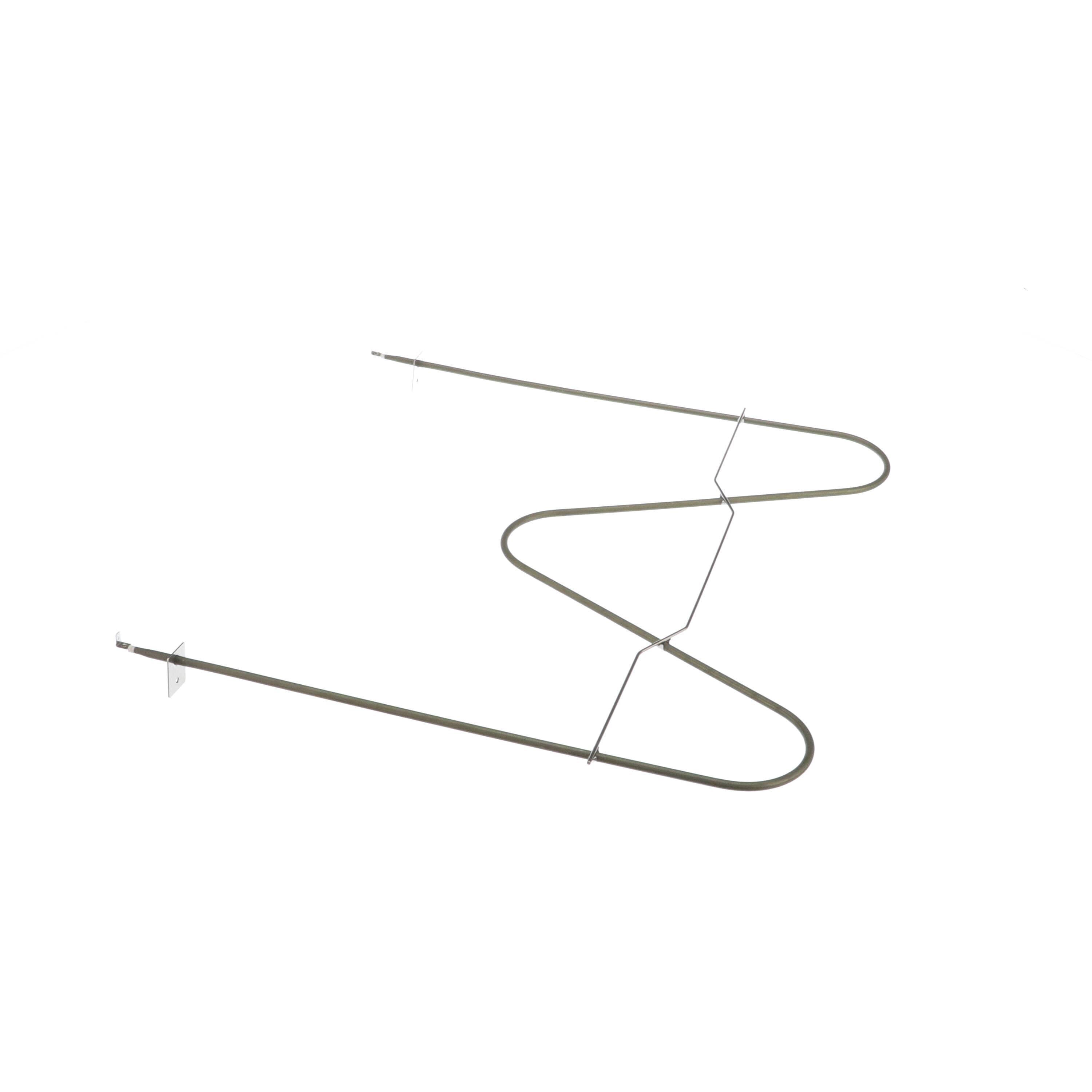

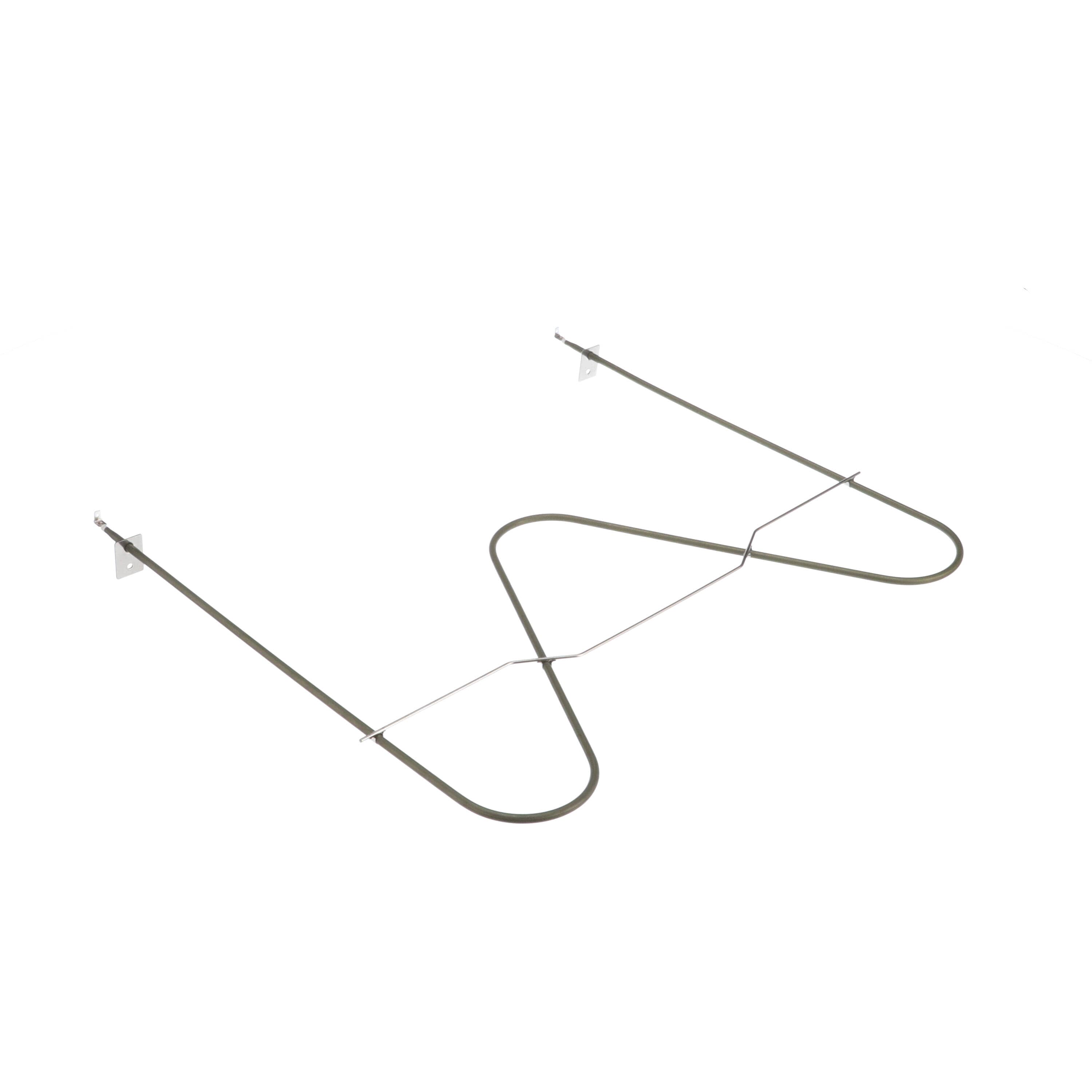

📦 Part Details

• Part Number: DG47-00038B
• Type: Oven Bake Element — 2,400W / 240V, bottom-of-cavity primary heat source for baking and broiling cycles
• Replaces: DG47-00038A, CH00038B
• Brands: Samsung

🛠 Buying Options

• OEM / New: Original Samsung factory part — guaranteed fit, form, and function. Same part installed at the factory.
• XPart / New: Our premium aftermarket alternative — built to meet or exceed OEM specs at a lower price. Not affiliated with or endorsed by Samsung.
• Used (OEM or XPart): Pulls from working appliances, inspected before listing. Ideal for temporary repairs or when new stock is unavailable.

⚙️ Installation

Skill Level: EASY — 15–20 minutes. Disconnect power at the breaker (240V) before beginning — this is a high-voltage component. Allow the element to cool completely. Remove the two mounting screws at the rear of the element, pull it gently forward, and disconnect the two terminal wires — note or photograph wire positions before disconnecting. Reconnect terminals firmly to the new element, push it back into position, reinstall screws, restore power, and run a bake cycle to confirm the repair.

✓ Compatible Models

Confirmed compatible with NE594R0ABSR, NE595R0ABSR, NE595R0ABWW, NE597R0ABSR, NE59J3420SB, NE59J3420SS, NE59J3420SW, NE59J3421SS, NE59K3321SS, NE59M4310SB, NE59M4310SS, NE59M4310SW, NE59M4320SB, NE59M4320SG, NE59M4320SS, NE59M4320SW, NE59R4321SG, NE59R4321SS, NE59T4311SG, NE59T4311SS, NE59T4321SW, NE59T7511SG, FER300SB plus additional Samsung NE59-series electric range models. Contact us to verify your model number before ordering.
