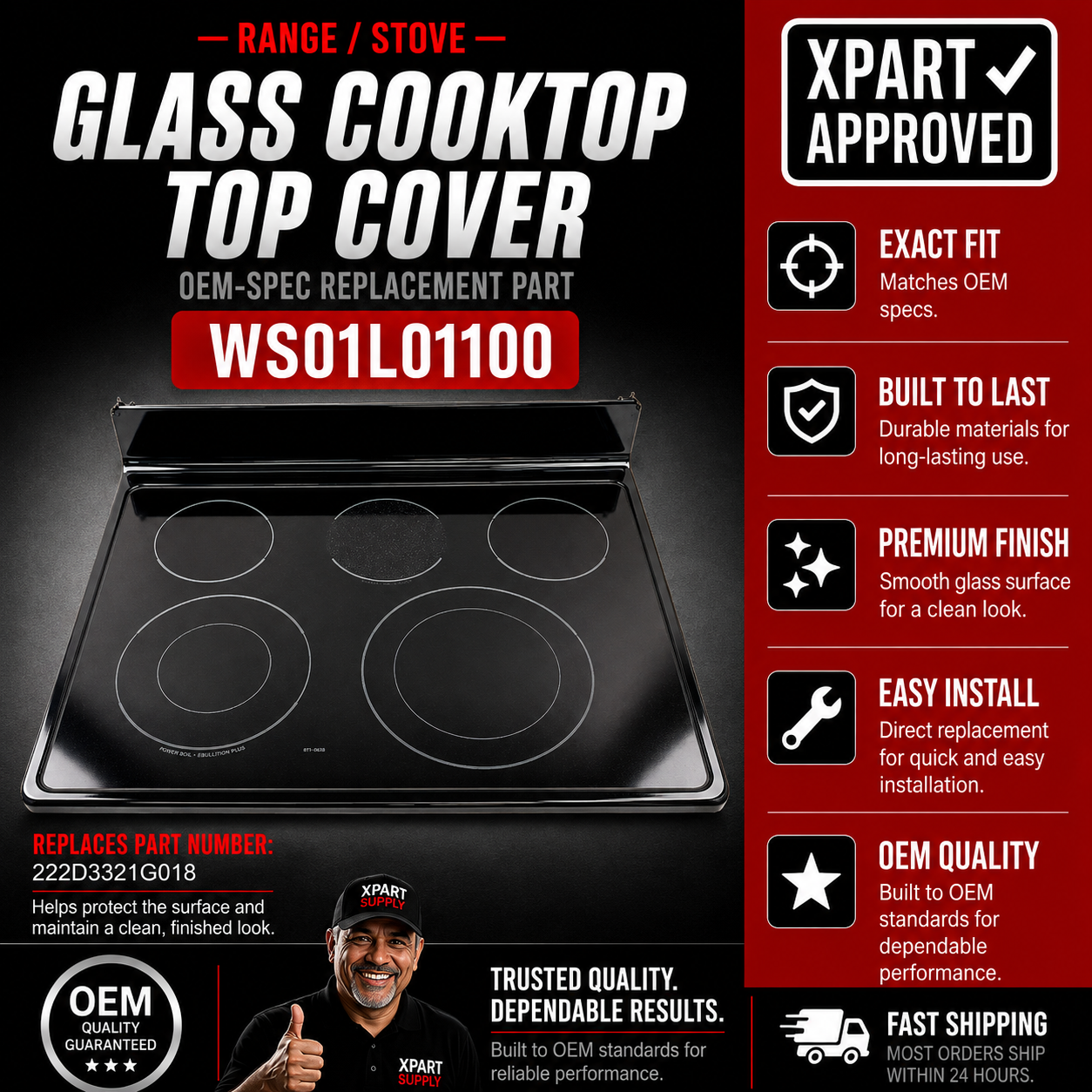

GE Range Cover Top and Glass Assembly WS01L01100, Replaces WB62M497

The GE WS01L01100 Range Cover Top and Glass Assembly provides the finished cooking surface above the radiant elements on compatible GE and Mabe electric ranges. It replaces discontinued GE service number WB62M497. The factory engineering number associated with this assembly is 222D3321G018 — this is an engineering production reference and is not a discontinued retail predecessor.

Replacement may be appropriate when the original glass is cracked, chipped, shattered, heat damaged or no longer securely attached to its frame. This assembly does not correct a failed surface element, burner switch, temperature limiter, wiring problem or electronic-control failure. Jenn-Air compatibility was not independently verified and is not claimed.

Radiant elements, infinite switches, wiring harnesses, insulation, brackets and mounting hardware are separate components and should not be assumed included unless specifically confirmed from the physical product or manufacturer packaging.

Is This the Right Part?

Confirm the complete range model, colour, dimensions, cooking-zone layout and mounting arrangement before ordering. Similar-looking GE glass tops are not automatically interchangeable across all models.

Common Symptoms

• Glass cooktop surface cracked, chipped or shattered
• Deep chips or cracks near a cooking zone that create a safety hazard
• Glass surface no longer sitting flush or securely on the range frame
• Severe heat discolouration or damage to the glass surface
• Broken or distorted metal frame that prevents secure mounting

Check Before Replacing

• Confirm the damage is to the glass or frame assembly — a surface element that does not heat, a burner stuck on high or an inaccurate temperature limiter are separate component failures not corrected by replacing the glass top
• Verify the complete range model, colour and cooking-zone layout match the verified compatibility list — similar GE glass tops may differ in element cutout positions, dimensions or mounting points
• Confirm whether radiant elements, brackets or mounting hardware need to be transferred from the old assembly or ordered separately
• Inspect the range frame and element wiring for damage before installing the new assembly

Part Details

Installation Notes

1. Disconnect the range from its electrical supply before beginning any service.
2. Photograph the existing assembly from above and below, including all mounting points and element positions.
3. Compare the new assembly with the original — verify dimensions, element cutouts, colour and mounting tab positions.
4. Transfer any elements, brackets or hardware from the old assembly as required.
5. Inspect the range frame and element wiring for damage before installing.
6. Restore power and test all cooking zones before completing the repair.

Because this assembly is large, fragile and installed on a high-voltage appliance, professional installation is recommended. Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

EML830NXF0A, EML830NXF0B, EML835NXF0A, EML835NXF0B, EML835NXF0C, EML835NXF0D, JCB820S, JCB830SF1SS, JCB830SF3SS, JCB830SIF1SS, JCB830SIF2SS, JCB835SIL1SS, JCB835SIL2SS, JCB835SIL3SS, JCB835SIL4SS, JCB840EF1ES, JCB840EF2ES, JCB840EJ1ES, JCB840EK1ES, JCB840EK2ES, JCB840EK3ES, JCB840EK4ES, JCB840SF1SS, JCB840SF2SS, JCB840SF3SS, JCB840SJ1SS, JCB840SK1SS, JCB840SK2SS, JCB840SK3SS, JCB840SK4SS, JCBP690ST1SS, JCBP780DT1BB, JCBP780DT2BB, JCBP780ST1SS, JCBP780ST2SS, JCBP800DT1BB, JCBP800ST1SS, JCBP810ST1SS, JCBP820S

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering. Confirm colour, dimensions and cooking-zone layout — similar GE glass tops are not automatically interchangeable.
