Oven Not Heating or Baking Unevenly? Bake Element WS01F02420 — Fix No Heat Fast
A failed bake element is the most common reason a GE or Hotpoint range oven stops heating, bakes unevenly, or won't reach temperature. In most GE-built ranges, the bake element is the lower heating coil that provides the primary heat source for baking and broiling. When it fails, the oven either produces no heat at all, heats only from the top, or cycles on and off erratically — leaving food undercooked or burnt on one side. ⚡ Common failure point in GE and Hotpoint freestanding and slide-in ranges. Part WS01F02420 is the genuine OEM replacement that restores full lower-element heating and returns your oven to factory baking performance.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range powers on and burners work normally
- ✔ Broil element (upper) heats correctly
- ✔ Oven temperature sensor has been confirmed functional
- ✔ ONLY problem is the oven not heating from the bottom, baking unevenly, or visible damage/burn marks on the lower element
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Oven doesn't heat at all — no warmth after preheating
- Oven heats from the top only — food burns on top, raw on the bottom
- Visible burn marks, blistering, or a break in the bake element coil
- Oven takes much longer than normal to reach set temperature
✔ If these symptoms match, the bake element is the most likely failed component in the system.
✔ In most cases, replacing the WS01F02420 bake element restores full oven heating immediately.

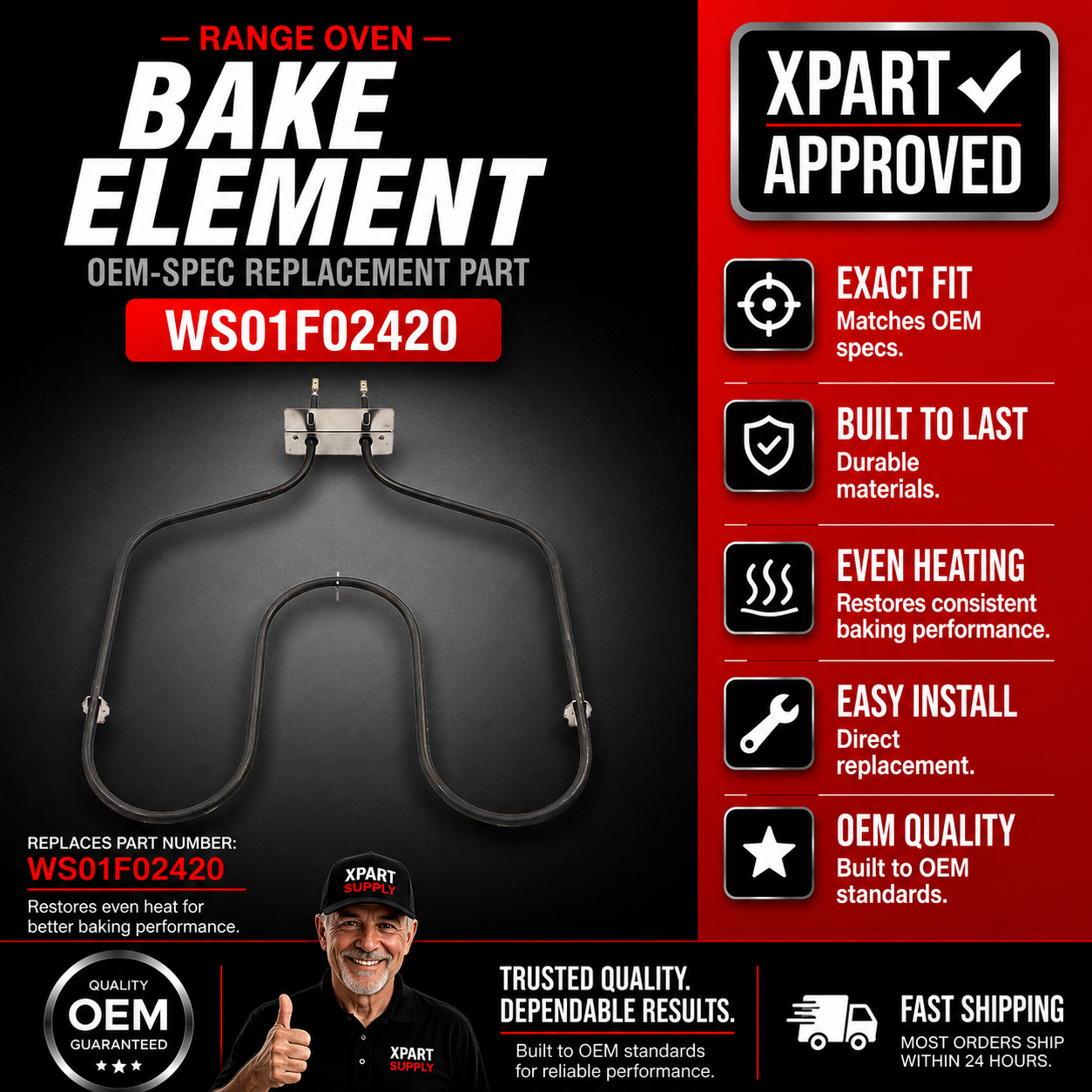

📦 Part Details
- Part Number: WS01F02420
- Type: Range Oven Bake Element — lower heating coil, primary heat source for baking
- Replaces: WB44K10019, WB44M174, CH44K10019
- Brands: GE, Hotpoint, RCA
While the bake element is out, inspect the oven temperature sensor (RTD probe) mounted at the back of the oven cavity — a failed sensor causes the same no-heat or uneven-heat symptoms and will cause the new element to cycle incorrectly if left in place. Contact us for the compatible temperature sensor part number for your model.
⚙️ Installation
Skill Level: EASY — 15–20 minutes. Disconnect power before servicing. Remove the two screws securing the bake element to the back wall of the oven cavity, gently pull the element forward to expose the wire terminals, and disconnect the wires. Connect the wires to the new WS01F02420, push the element back into position, and reinstall the screws. Restore power and run a short preheat cycle to confirm normal operation.
✓ Compatible Models
Confirmed compatible with JAS02SN1SS, JAS02SN4SS, RA720K1CT, RA720K1WH, RA720K2CT, RA720K2WH, RA720K3CT, RA720K3WH, RA720K4CT, RA720K4WH, RA720K5CT, RA720K5WH, RA720K6WH, RA724K1WH, RA724K2WH, RA724K3WH, RA724K4WH, RA724K5WH, RA820DD1WW, RA824DD1WW, RA824DD2WW plus additional GE and Hotpoint range models. Contact us to verify your model number before ordering.
💡 Pro Tip
A no-heat oven is frequently misdiagnosed as a control board or relay failure — an expensive repair. Always visually inspect and test the bake element first. A visible break, burn mark, or blister on the coil confirms element failure. At a fraction of the cost of a board, the WS01F02420 resolves the majority of no-heat complaints on GE-platform ranges and avoids an unnecessary service call.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
