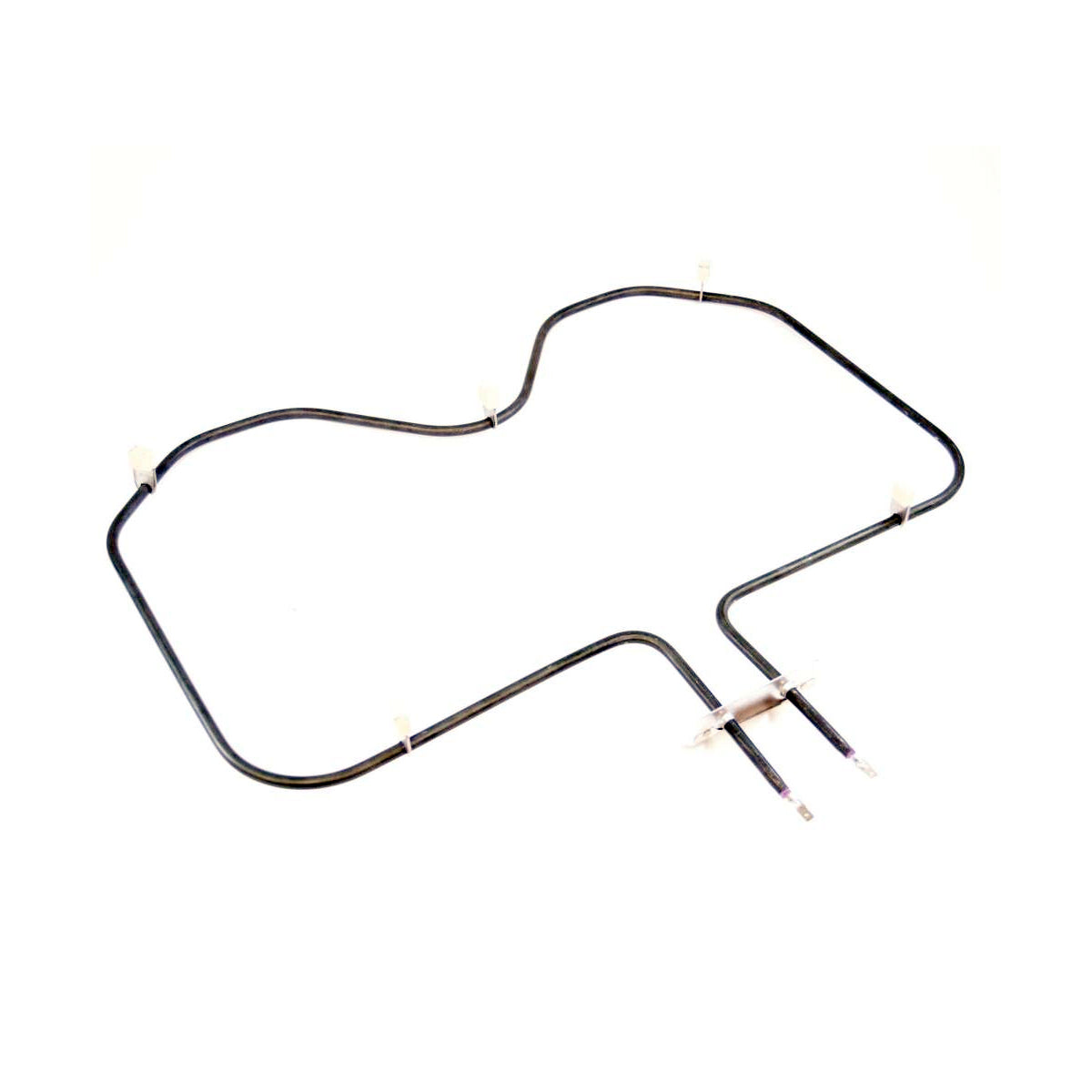

The PJ010004 is the genuine OEM bake element for Viking professional-grade ranges and wall ovens. The bake element is the lower heating element in your oven cavity — when it fails, the oven won't heat from the bottom, baking results become uneven, or the oven fails to reach temperature entirely. Available in both OEM/New and premium XPart aftermarket options.

✓ Model-Specific Repair Pages

Don't see your model? Contact us and we'll confirm compatibility.

The bake element in Viking professional ranges operates at high wattage to deliver the precise bottom heat required for baking, roasting, and broiling from below. On VDSC and VEDO series ranges, the element is a direct plug-in replacement accessible from inside the oven cavity. Failure is typically caused by a visible break or burn spot on the element coil, or confirmed by the oven heating only from the top (broil element) while the bottom remains cold.

✓ Common Symptoms Fixed

Replacing PJ010004 resolves: oven not heating from the bottom, uneven baking with undercooked bottoms, oven failing to reach set temperature, visible burn or break on the lower element, and error codes related to bake element circuit failure.

✓ Key Features & Specifications

OEM Viking part number PJ010004. Replaces superseded part number VKPJ010004. Genuine factory replacement — same element installed at time of manufacture. Compatible with VDSC, CVDSC, SVDSC, EVDSC, RVDR, VEDO, DEDO, EVEDO, VESC, VESO, DESO, EVESC, EVESO series Viking ranges and wall ovens. Sold individually. Ships from XPart Supply's Canadian warehouse.

✓ Buying Options

OEM/New — The original Viking factory part. Full manufacturer specifications, exact fit, no modifications required. Out-of-stock orders accepted — ships when stock is replenished.

XPart/New — A premium aftermarket bake element engineered to the same specifications as the OEM part. Ideal for cost-conscious repairs without sacrificing fit or function. aftermarket replacement parts are not affiliated with, sponsored by, or endorsed by Viking Range or any OEM manufacturer.

✓ Replacement Part Numbers

PJ010004 replaces: VKPJ010004

XPart cross-reference: PJ010004XP (aftermarket cross-reference)

✓ Installation Tips

Disconnect power to the range or wall oven before beginning any repair. The bake element is accessed from inside the oven cavity — remove the two mounting screws at the back of the element, pull it forward gently, and disconnect the two wire terminals. Connect the new element to the terminals, slide it into position, and secure the mounting screws. Restore power and run a bake cycle to confirm proper operation.

✓ Compatible Models

CVDSC305AFTER12-01-06, CVDSC307AFTER12-08-06, CVDSC485-4GAFTER08-11-06, CVDSC485-4GQAFTER08-11-06, CVDSC485-6G, CVDSC485-6QAFTER8-16-06, DEDO200002, DEDO200003, DEDO201003, DEDO201004, DEDO205001, DEDO205005, DEDO205006, DESO100002, DESO101002, DESO105001, DESO105005, EVDSC305005, EVEDO205001, EVEDO205004, EVEDO205005, EVESC305005, EVESO105001, EVESO105003, RVDR3305B005, SVDSC305AFTER12-01-06006, VDSC305 AFTER 12-01-06006, VDSC305007, VDSC307 AFTER 12-08-06005, VDSC307003, VDSC485007, VDSC485-4G AFTER 08-11-06007, VDSC485-4GQ AFTER 08-11-06008, VDSC485-6G AFTER 08-11-06007, VDSC485-6Q AFTER 08-16-06007, VDSC485C-6G006, VDSC487002, VDSC487-4G AFTER 06-22-06007, VDSC487-4GQ AFTER 06-22-06008, VDSC487-4Q AFTER 07-24-06007, VDSC487-6G AFTER 06-14-06007, VDSC487-6Q AFTER 07-10-06007, VEDO205002, VEDO205003, VEDO207003, VEDO207C002, VEDO207C003, VESC305005, VESC306001, VESC306006, VESO105002, VESO107003, VESO107C002

✓ Frequently Asked Questions

How do I know if my bake element has failed?
Look for a visible break, burn mark, or blister on the element coil. If the oven heats from the top only (broil element working) but not the bottom, or fails to reach temperature, the bake element is the most likely cause. Visit your model hub page to browse all parts for your specific unit.

What is the difference between PJ010004 and VKPJ010004?
VKPJ010004 is a superseded part number. PJ010004 is the current OEM part number that directly replaces it. Both refer to the same bake element.

Is the XPart option a good alternative?
Yes — the XPart bake element is engineered to the same fit and wattage specifications as the OEM part and is a reliable, cost-effective alternative. It is not affiliated with or endorsed by Viking Range. Contact us if you have questions about which option is right for your repair.
