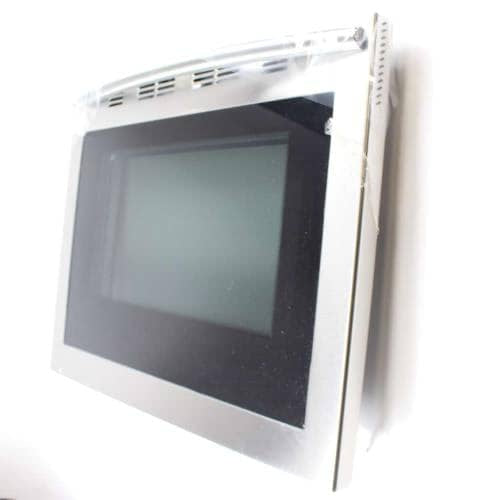

Samsung Range Oven Door Broken, Cracked, or Damaged? Full Door Assembly DG94-01116B – Complete Replacement for NE59J Series
If your Samsung NE59J series range oven door has cracked or shattered glass, a broken handle, a damaged outer panel, or the door no longer seals properly, the full door assembly DG94-01116B is the correct OEM replacement — everything ships as one complete, ready-to-install unit. In most Samsung NE59J electric ranges, door damage occurs from thermal shock (cold liquid on hot glass), impact, or hinge wear that causes the door to drop and stress the glass. When the door is damaged, the oven cannot maintain temperature, heat escapes from the compromised seal, and the range may be unsafe to operate. ⚡ A complete door assembly replacement eliminates the need to source and install the handle, outer panel, and inner glass separately. Part DG94-01116B is the genuine OEM complete door assembly that restores full oven door function, seal, and appearance immediately.

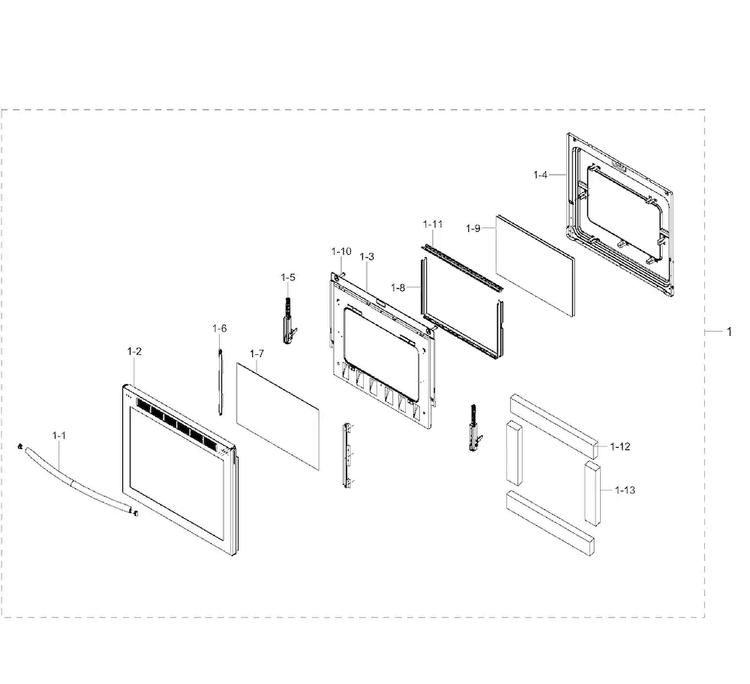

📦 What’s Included in This Assembly:
This is a complete door assembly. All parts are included:
This is a complete door assembly. All parts are included:
- Handle — DG94-00686B
- Outer Panel — DG94-01117A
- Inner Glass — DG64-00133A
❓ Is This the Right Part?
This is the correct fix if ANY of the following are true AND your model is NE59J7630SS, NE59J7650WS, NE59J7651WS, or NE59J7750WS:
- ✔ Oven door inner glass is cracked, shattered, or broken
- ✔ Outer door panel is cracked, dented, or damaged
- ✔ Door handle is broken, loose, or missing
- ✔ Door does not seal properly — heat escaping around the door perimeter
- ✔ Multiple door components are damaged and individual part replacement is not cost-effective
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Inner door glass cracked, shattered, or with visible impact damage
- Outer door panel cracked, dented, or cosmetically damaged
- Door handle broken, cracked, or detached
- Door sagging, not closing flush, or not latching properly
- Heat escaping around the door perimeter during baking or broiling
- Oven not reaching or maintaining set temperature — door seal compromised
✔ If these symptoms match and your model is in the NE59J series, this is the correct complete replacement.
✔ Replacing the complete assembly restores full door function, seal, and appearance in one installation.
📦 Part Details
- Part Number: DG94-01116B
- Type: Complete Range Oven Door Assembly — includes handle (DG94-00686B), outer panel (DG94-01117A), and inner glass (DG64-00133A)
- Replaces / Includes: DG94-00686B, DG94-01117A, DG64-00133A
- Brands: Samsung

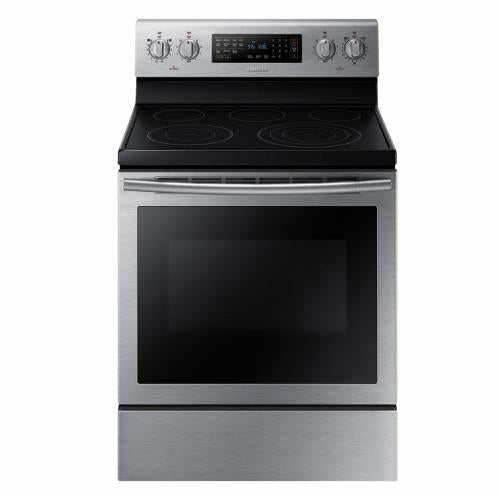

- Compatible Series: NE59J7630SS, NE59J7650WS, NE59J7651WS, NE59J7750WS
⚠️ Recommended While Repairing:
While the door is removed, inspect the door gasket / oven seal around the oven cavity opening. A damaged or hardened door gasket causes heat loss even after a door replacement — if the gasket is cracked, brittle, or no longer sealing flush, replace it at the same time. A new door on a failed gasket will still leak heat and affect cooking performance and energy efficiency.
While the door is removed, inspect the door gasket / oven seal around the oven cavity opening. A damaged or hardened door gasket causes heat loss even after a door replacement — if the gasket is cracked, brittle, or no longer sealing flush, replace it at the same time. A new door on a failed gasket will still leak heat and affect cooking performance and energy efficiency.
⚙️ Installation
Skill Level: MODERATE — 20–40 minutes. Disconnect power before servicing. Open the oven door fully and locate the hinge locks on both hinges — flip the locks to the unlocked position. Grip the door firmly on both sides, lift slightly, and pull the door straight toward you to disengage the hinges from the hinge slots in the oven frame. Set the old door aside. Align the new DG94-01116B door’s hinge arms with the hinge slots, slide them in firmly until fully seated, then flip the hinge locks back to the locked position. Close the door and verify it seals flush on all sides before restoring power.
✓ Compatible Models
Confirmed compatible with NE59J7630SS, NE59J7650WS, NE59J7651WS, NE59J7750WS. Contact us to verify your exact model suffix before ordering — door assemblies are model-specific and fit must be confirmed.
💡 Pro Tip
Never Place Cold Liquid on a Hot Oven Door Glass:
The most common cause of Samsung NE59J oven door glass shattering is thermal shock — cold water, a wet cloth, or a cold dish placed on or against the hot inner glass causes an instantaneous temperature differential that the tempered glass cannot absorb. The glass can shatter explosively, sometimes hours after the initial thermal event as internal stress builds. To prevent recurrence: never place anything cold on the glass while the oven is hot or cooling, allow the oven to cool fully before cleaning with any liquid, and avoid slamming the door — repeated impact stress is the second most common cause of inner glass failure on Samsung NE59J ranges.
The most common cause of Samsung NE59J oven door glass shattering is thermal shock — cold water, a wet cloth, or a cold dish placed on or against the hot inner glass causes an instantaneous temperature differential that the tempered glass cannot absorb. The glass can shatter explosively, sometimes hours after the initial thermal event as internal stress builds. To prevent recurrence: never place anything cold on the glass while the oven is hot or cooling, allow the oven to cool fully before cleaning with any liquid, and avoid slamming the door — repeated impact stress is the second most common cause of inner glass failure on Samsung NE59J ranges.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
