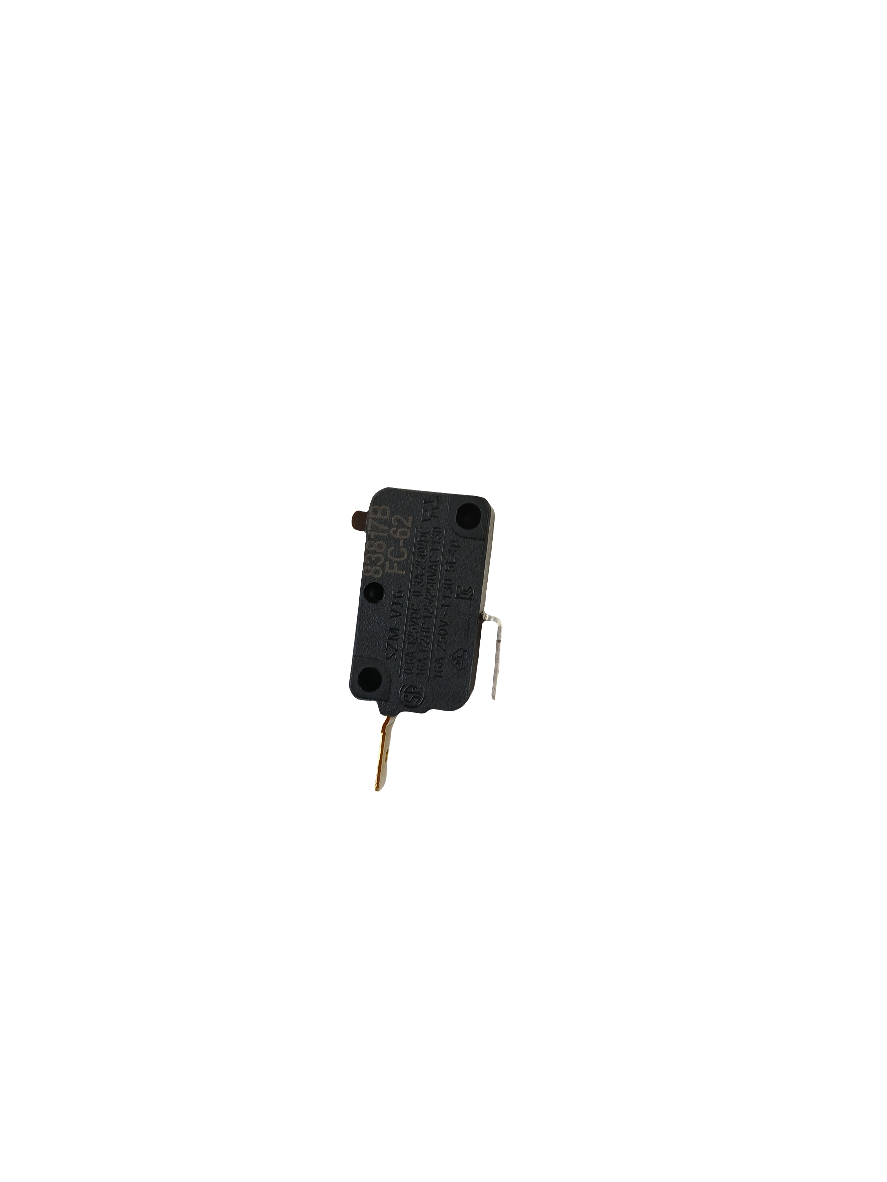

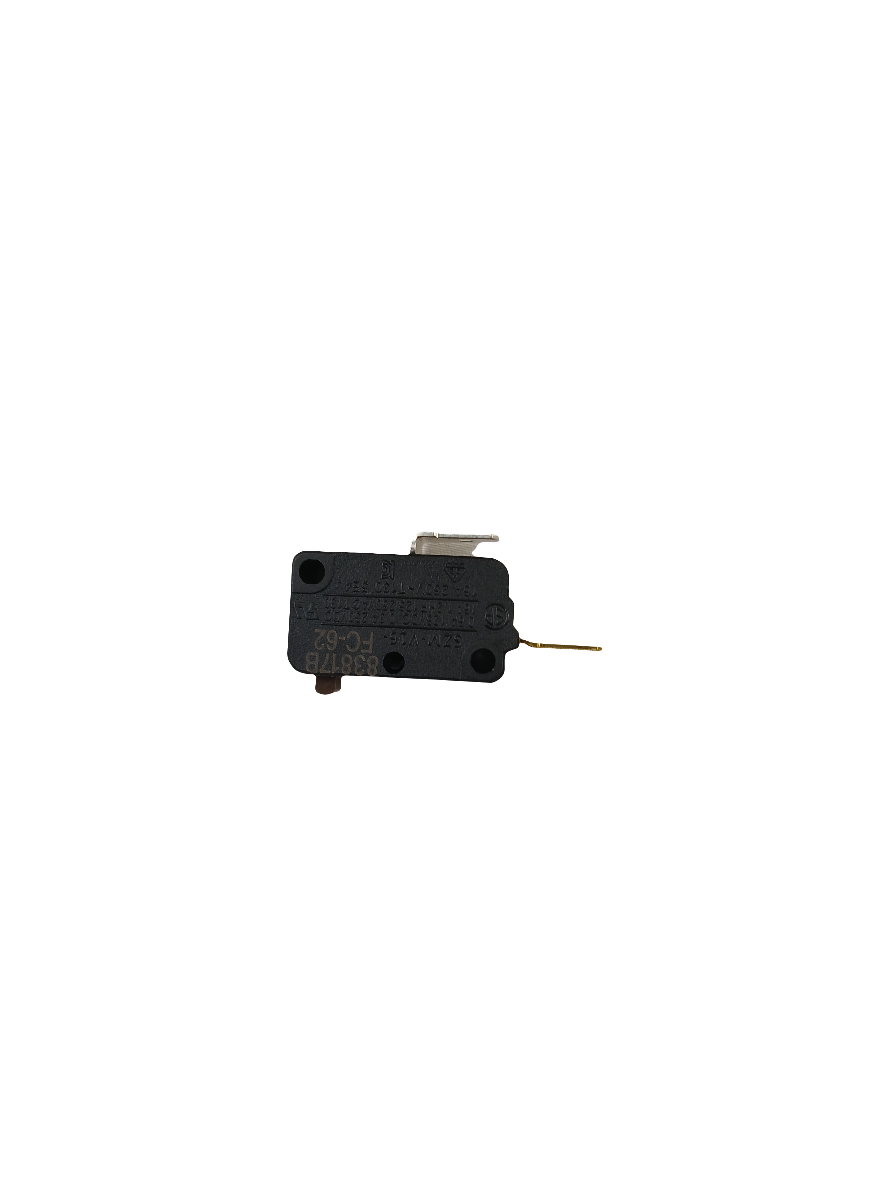

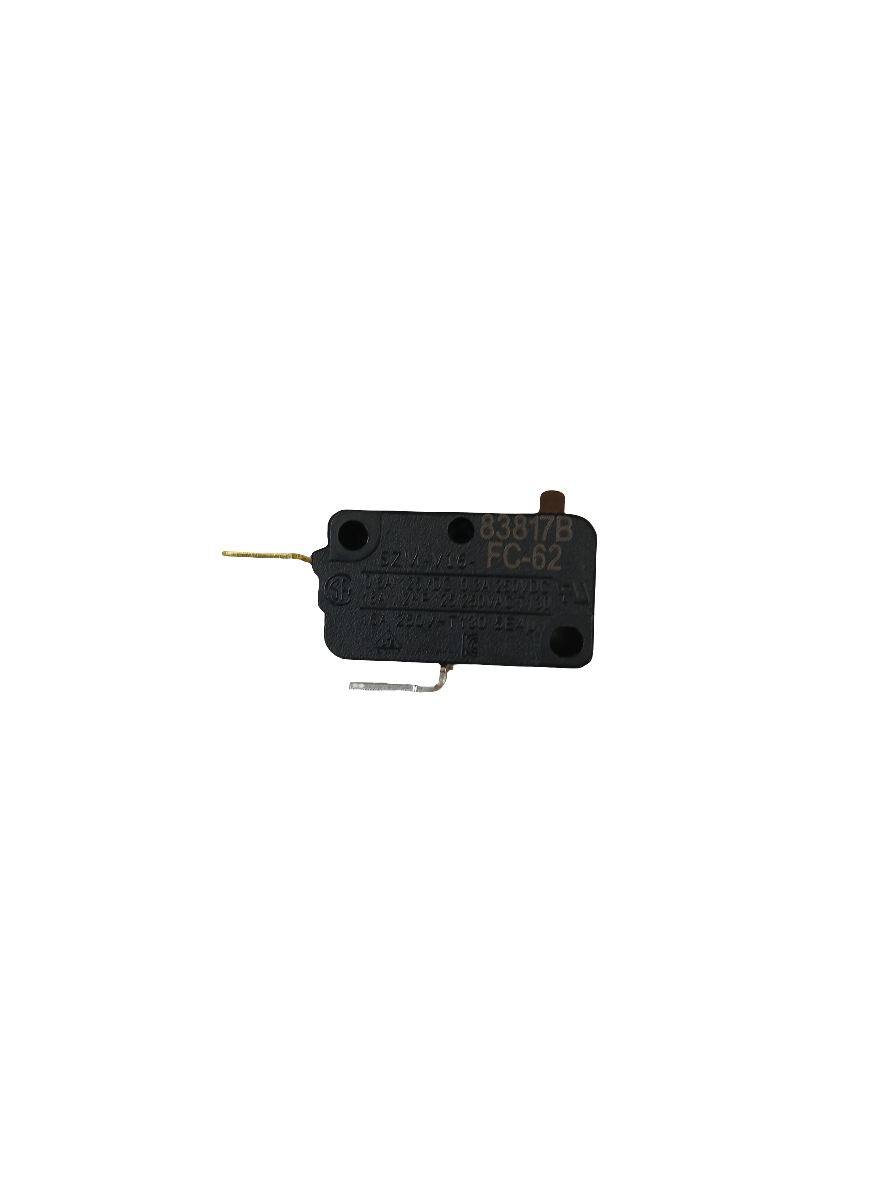

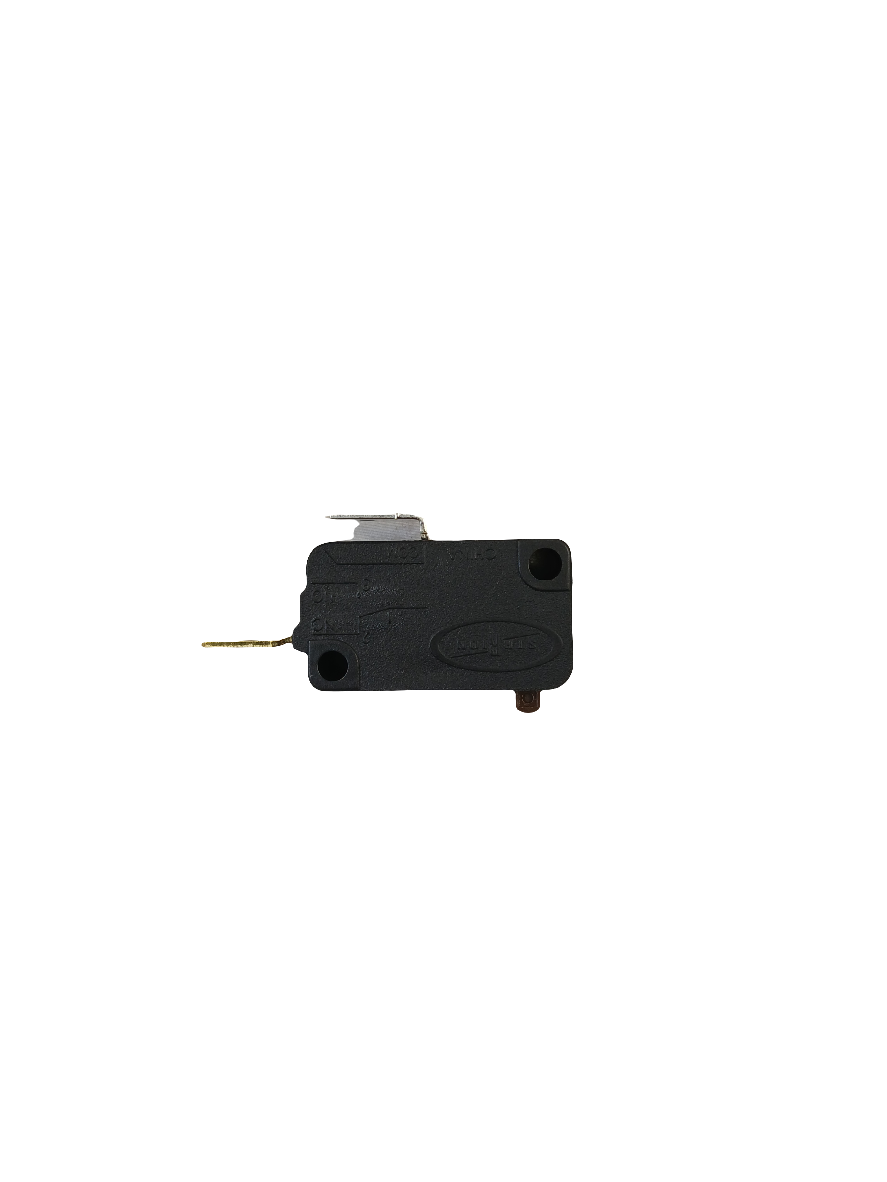

Whirlpool Microwave door interlock switch; two-terminal, normally closed W10269458, Replaces W10211973, 8206347, 4393598

Genuine Whirlpool OEM microwave door interlock switch. The switch prevents the microwave from operating when the door is open and is specified as a two-terminal, normally closed switch.

Is This the Right Part?

Common Symptoms

• Microwave displays a door-open or close-door message when the door is closed.
• Microwave starts intermittently or stops after a few seconds.
• Microwave may fail to heat when the door is closed.
• Door-related operation may be inconsistent, especially when the door is closed with insufficient latch engagement.

Check Before Replacing

• With the appliance unplugged, inspect the switch body, actuator, terminals, and surrounding latch or switch-holder area for visible damage or looseness.
• Confirm the door closes fully and that the latch engages the switch actuator without excessive movement or misalignment.
• If qualified to perform electrical testing, disconnect the switch wiring and check continuity against the appliance service documentation, comparing the switch behavior with its specified normally closed configuration.
• Do not operate the microwave with the door open; after any interlock repair, proper door alignment and interlock operation should be verified before use.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM microwave door interlock switch.
• Two wire terminals.
• Normally closed contact configuration.
• Used in the microwave door-latch/interlock system.
• Listed for Whirlpool-family microwave applications, including Whirlpool, Maytag, KitchenAid, Amana, JennAir, and related brands.

Installation Notes

• Unplug the microwave before accessing or replacing the door switch.
• Install the replacement in the same switch position and preserve the original wire orientation.
• Do not substitute a normally open or three-terminal switch for this specified two-terminal normally closed part.
• Because microwave door shielding and interlock operation must be checked after replacement, service-technician installation or post-repair verification is recommended.

Verified Compatible Models

UMV1160CS2, WMH2175XVQ2, WMH2175XVQ3, WMH53520AS0, WMH53520AS1, YAMV1160VAB1, YAMV1160VAB2, YAMV1160VAB3, YAMV1160VAB4, YAMV1160VAB5, YAMV1160VAB6, YKMHC319ES0, YKMHS120EB0, YMMV4205DW0, YWMH31017AS0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
