Whirlpool Dryer 4-Way Side Vent Kit W10470674

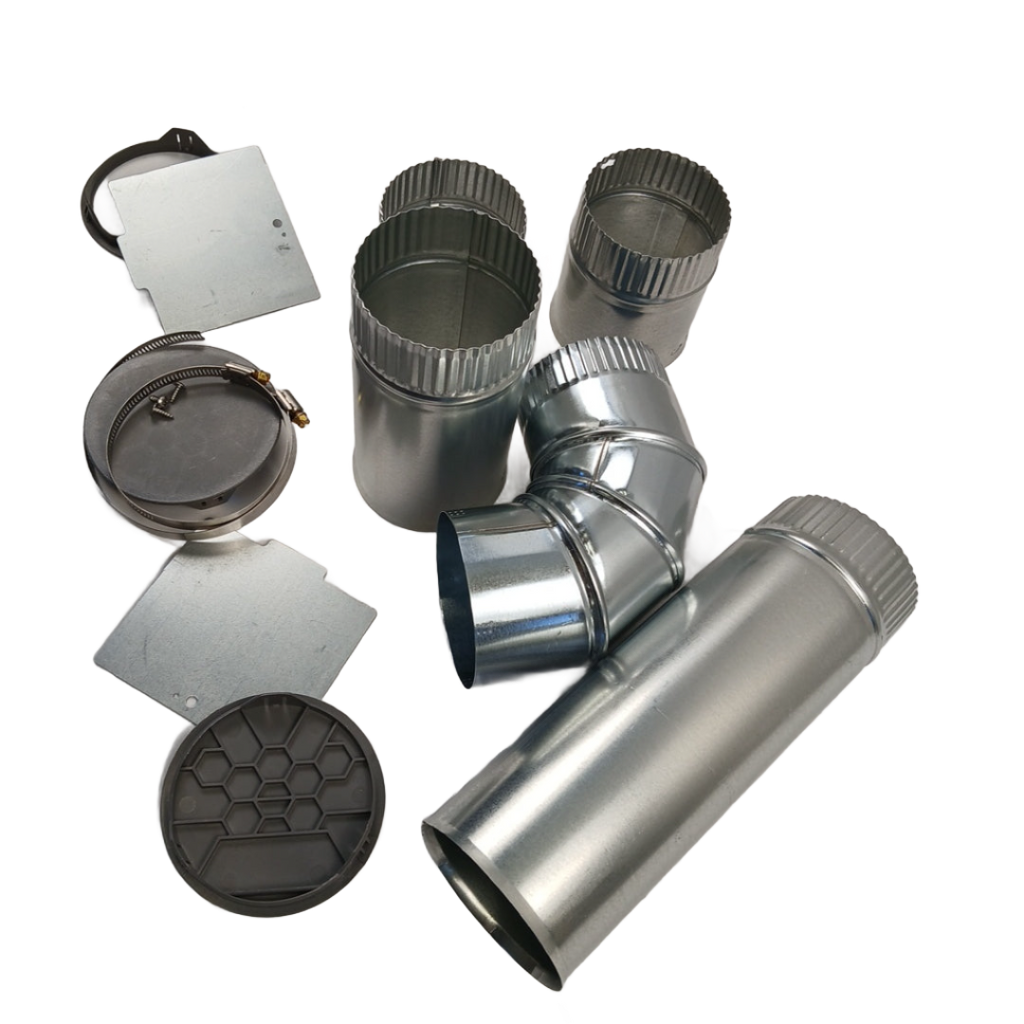

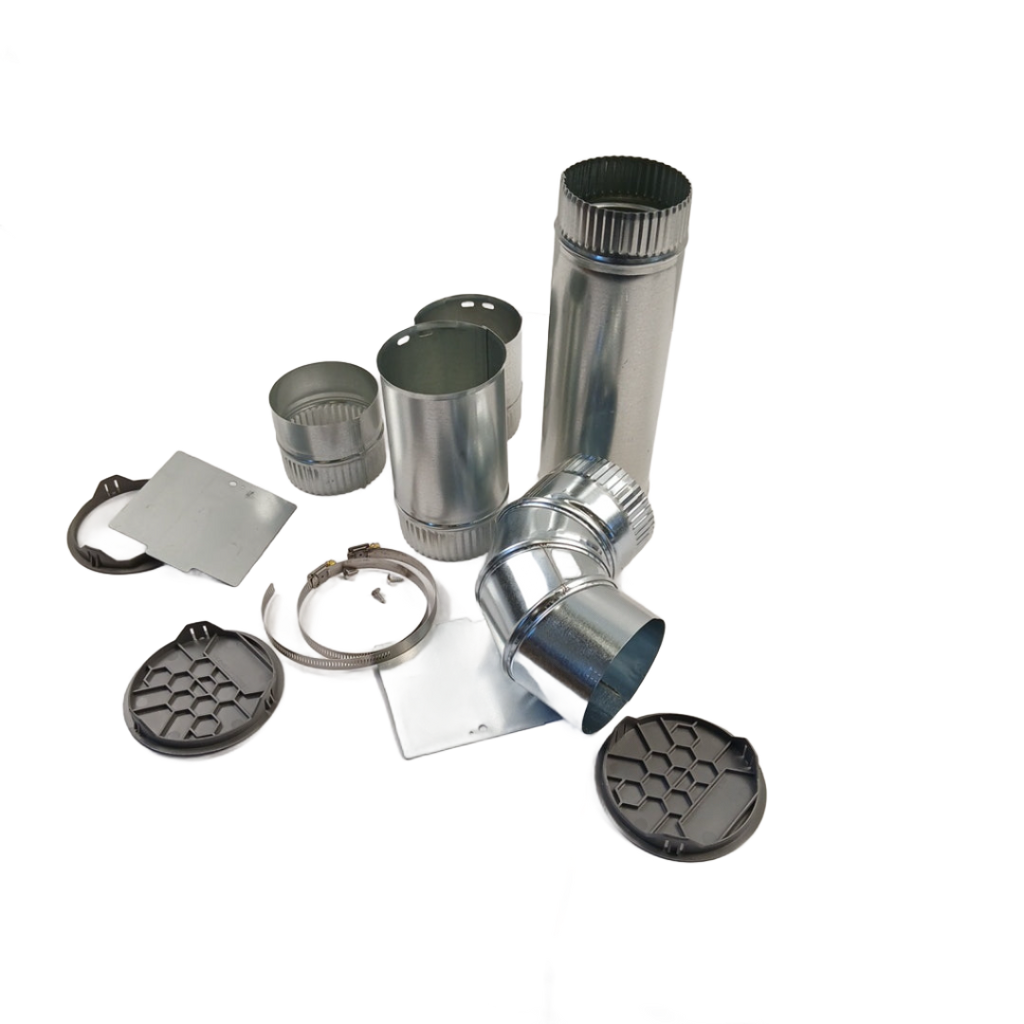

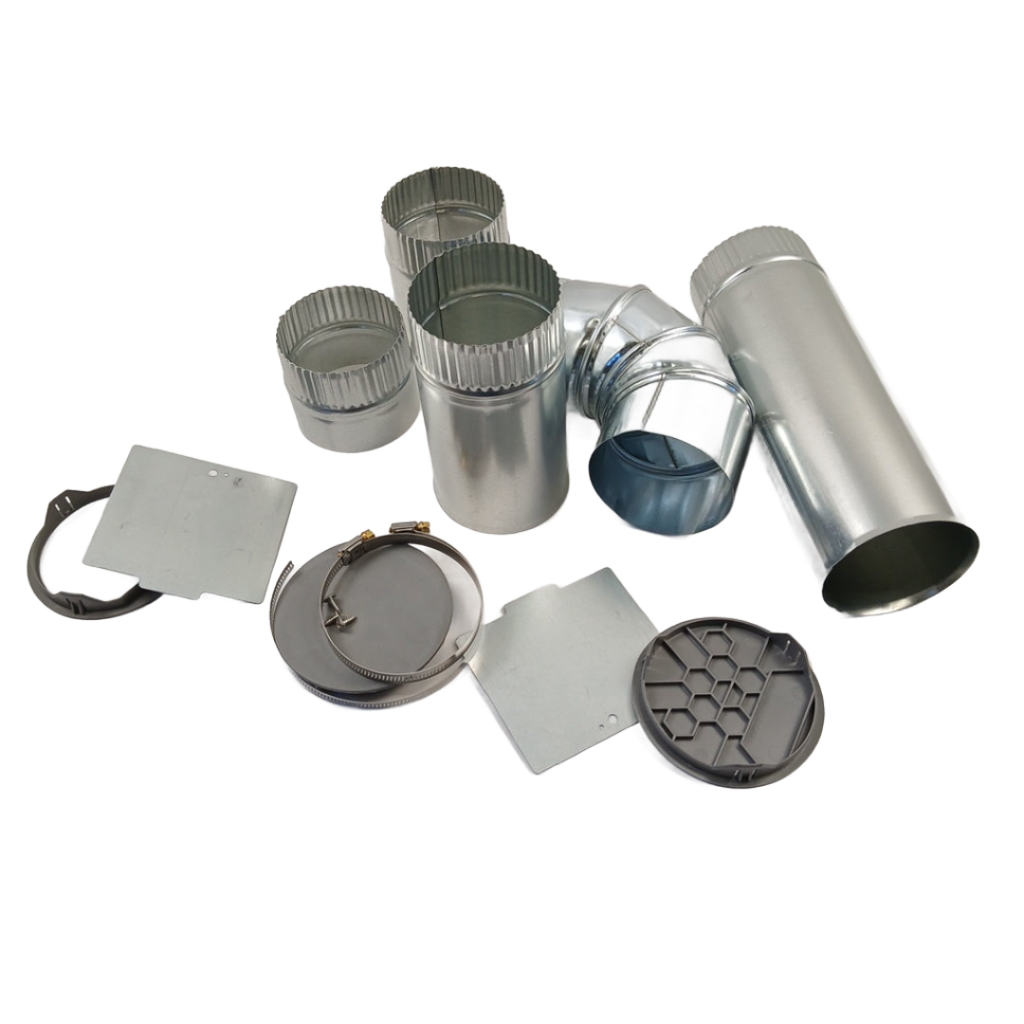

Factory Certified accessory kit that allows compatible dryers to exhaust through the left side, right side, or bottom instead of the rear. The kit includes vent components, elbow, cover plate, clips, screws, cabinet plugs, and installation instructions.

Is This the Right Part?

Common Symptoms

• Limited dryer placement because rear exhaust is not suitable for the installation
• Visible unused exhaust opening after a prior vent conversion
• Poor or improper exhaust routing caused by a damaged, loose, or incorrectly positioned vent-kit component

Check Before Replacing

• Verify the dryer has a front lint screen and that the appliance model documentation permits use of this kit.
• Visually inspect the kit’s vent sections, elbows, clamps, cover plates, plugs, and screws for damage or missing components.
• With the dryer not operating, visually confirm that the selected exhaust path is unobstructed and that unused rear or side openings are properly covered.
• Check that the exterior vent connection is secure and that the vent path is not visibly crushed, kinked, or disconnected.

Pro Tip

Part Details

Key Features

• Whirlpool Factory Certified Accessory
• Supports left-side, right-side, and bottom exhaust configurations
• Designed for compatible dryers with front lint screens
• Kit includes venting components and cabinet-cover hardware
• Metal vent construction for durability
• Whirlpool identifies a multi-bit screwdriver as a required tool on the product page

Installation Notes

• Disconnect electrical power before servicing; for gas dryers, shut off the gas supply as directed by the installation instructions.
• Follow the supplied instructions for the selected bottom, left-side, or right-side venting configuration.
• Install the included metal cover plate over the former exhaust opening and install cabinet plugs in unused side openings before operation.
• Reinstall all removed panels and reconnect wiring before operating the dryer.
• Confirm the selected model is compatible before beginning installation; the kit is not a universal fit for every dryer.

Verified Compatible Models

4GMEDC300YW0, 7EWED5550YW1, 7MWED5600BW0, 7MWGD8000EW0, 7MWGD8500EC0, AED4675YQ1, CED123SEW0, CED126SBW0, CED126SDW0, CED9150GW0, CGD8990XW2, CGD9050AW0, CGD9150GW0, MED6205RW0, MED6230HC0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
