Whirlpool Washer Console W10838672, Replaces W10607414, W11035001, W11095624

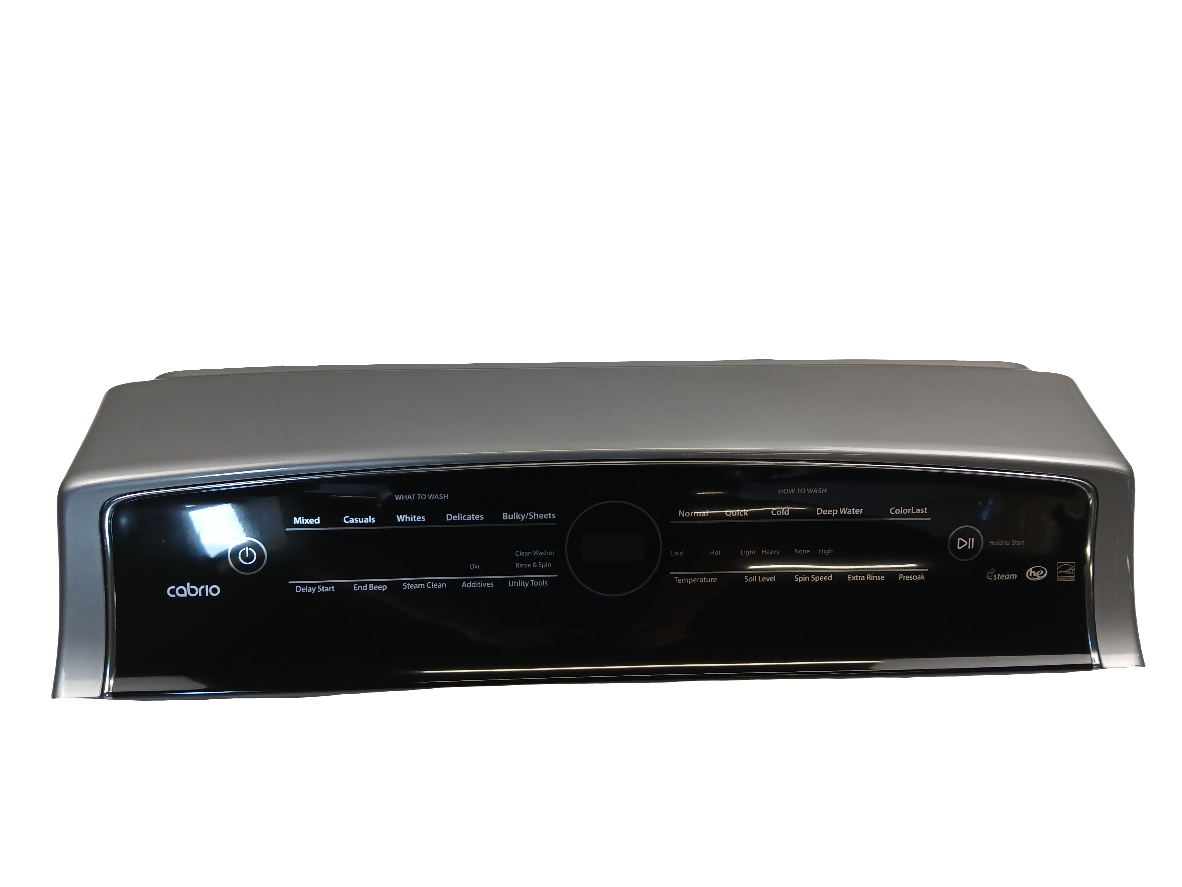

Whirlpool OEM washer console/control panel assembly, identified by one retailer as Chrome Shadow. The console houses the washer display and control-selection components.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Blank or dead user interface
• Buttons do not respond or cycles cannot be selected
• Display is blank, flickering, or shows incorrect information
• User-interface-related error codes
• Visible console cracking or moisture damage

Check Before Replacing

• Confirm the washer has power and that the main control’s status indicator, if accessible for the specific model, is operating before condemning the console.
• With power disconnected, inspect the console and its connector area for loose connections, visible damage, corrosion, or moisture intrusion.
• Verify that the symptom is limited to the display or user controls rather than a broader washer power or main-control problem.
• Use the washer’s model-specific service or diagnostic instructions to check whether button inputs are recognized; do not replace the console solely from a generic error code.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM washer console/control-panel assembly
• Chrome Shadow finish identified by an established appliance-parts retailer
• Integrates the washer display and control-selection interface
• Listed as replacing Whirlpool part numbers W10607414, W11035001, and W11095624
• Used on select Whirlpool-family top-load washer models; model verification remains necessary

Installation Notes

• Disconnect electrical power before accessing or replacing the console.
• Handle the console and its wiring connectors carefully; avoid pulling on wires or damaging connector-retaining features.
• The console may be retained by clips and/or screws depending on the specific washer model; follow the model-specific service documentation rather than assuming a universal procedure.
• After installation, reconnect the interface securely and verify display and button operation before fully reassembling the washer.
• Wear suitable hand protection when working around washer panels and edges.

Verified Compatible Models

7MWTW8500EC0, 7MWTW8500EC1, 7MWTW8500EC2, WTW8500DC0, WTW8500DC1, WTW8500DC2, WTW8500DC3, WTW8500DC4, WTW8500DC5, WTW8500DC6, WTW8500DR0, WTW8500DR1, WTW8500DR2, WTW8500DR3, WTW8500DR4

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
