ONE OR MORE GAS BURNERS DO NOT PRODUCE A USABLE IGNITION SPARK
Whirlpool Range spark module W10860916, Fixes One or more gas burners do not produce a usable ignition spark

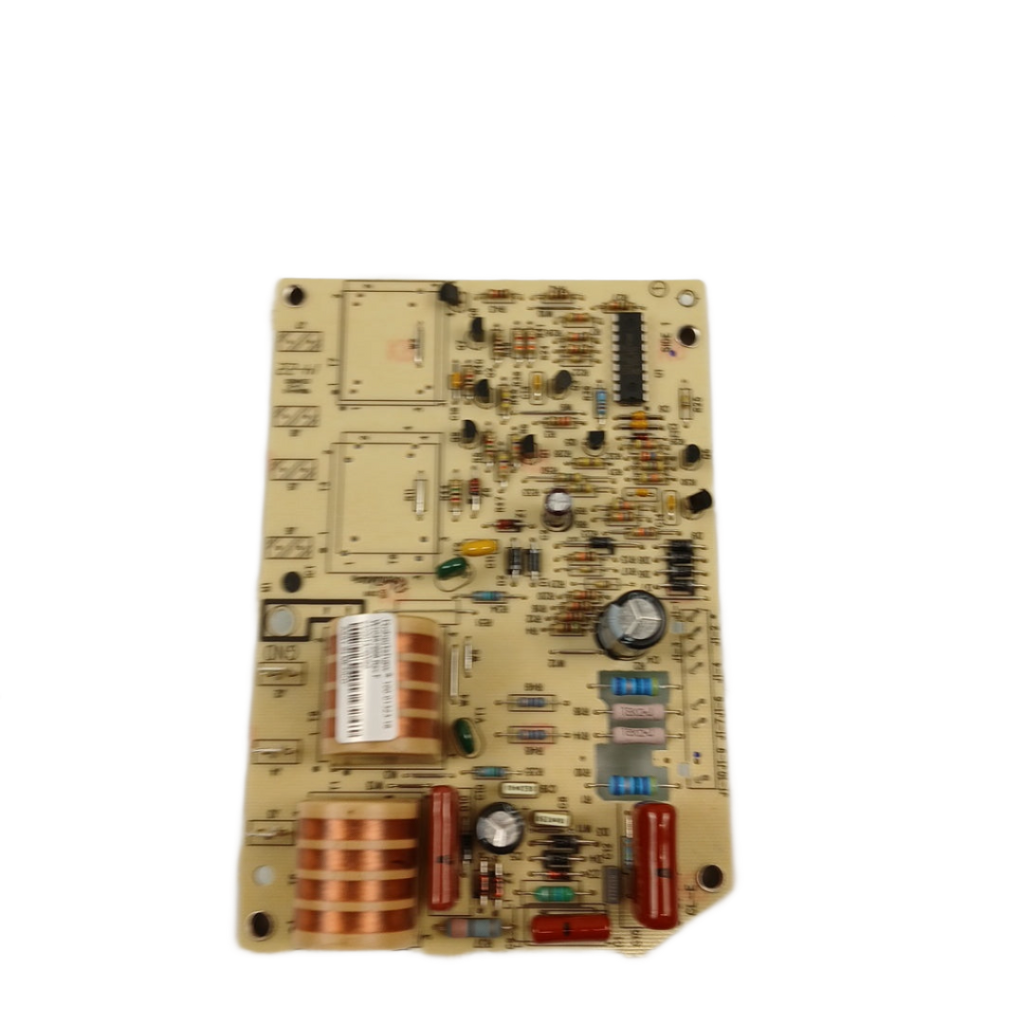

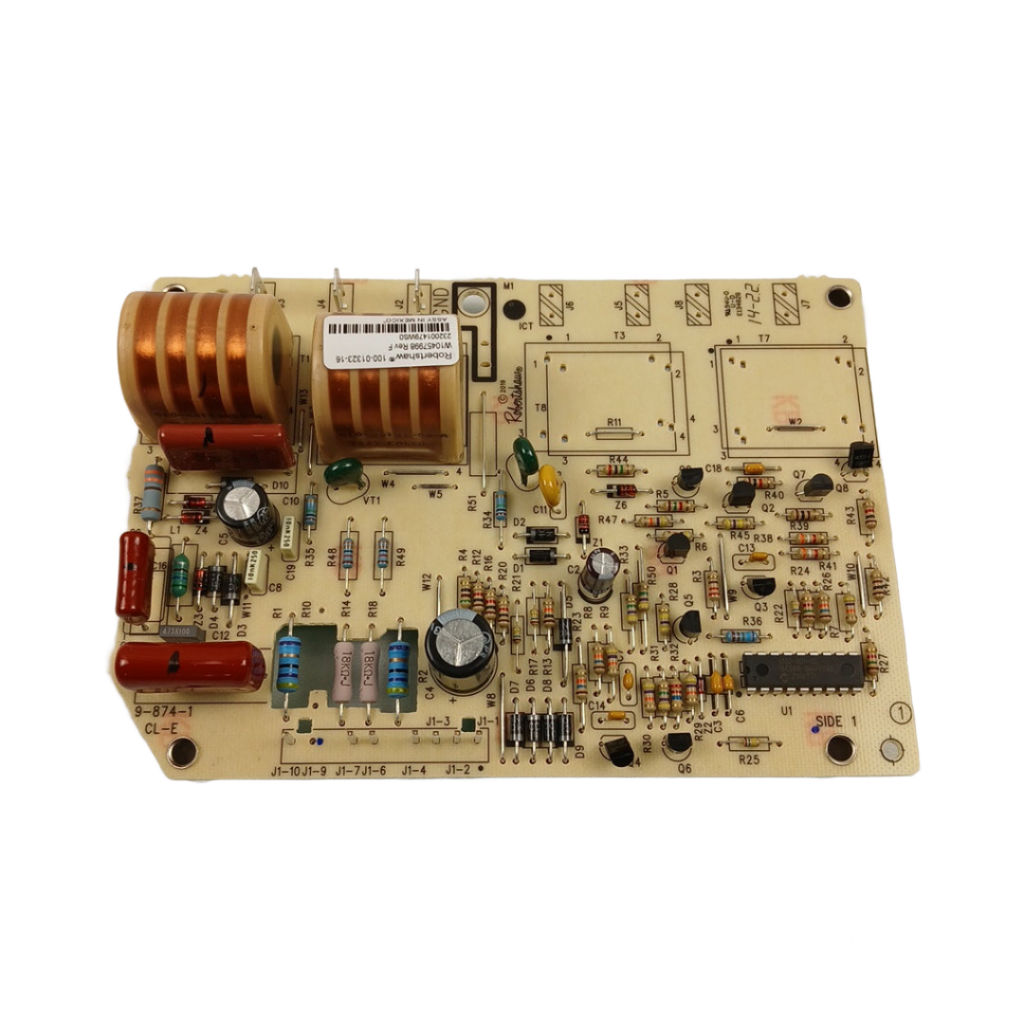

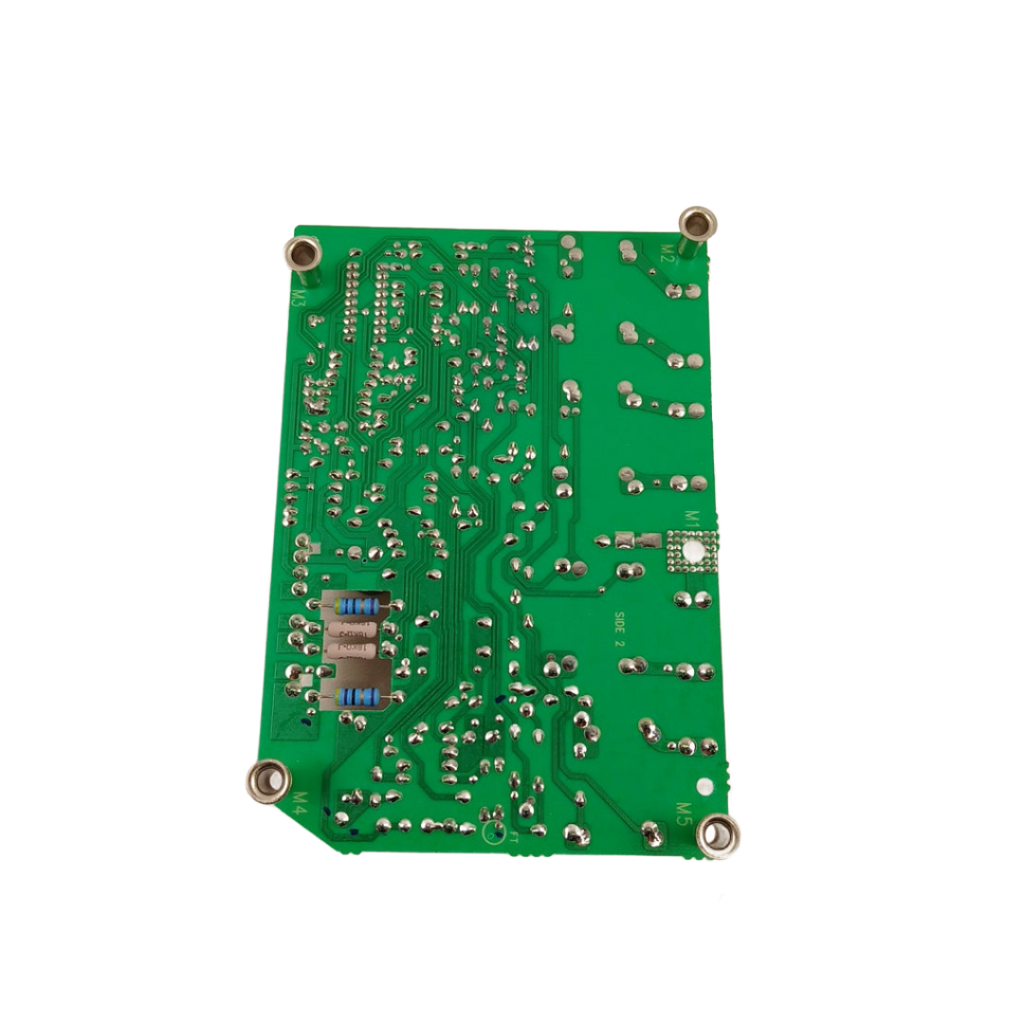

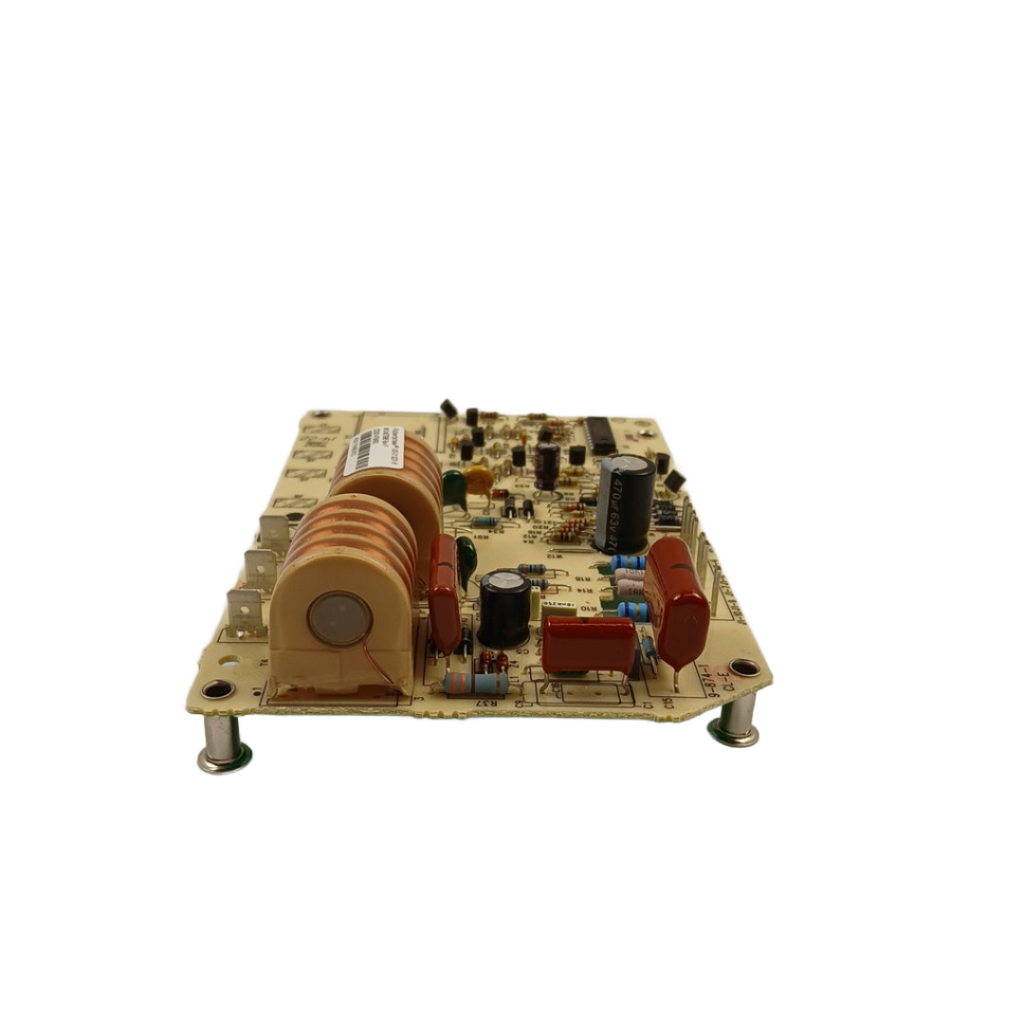

Genuine Whirlpool range spark module used to generate ignition spark for gas-range burners. Some retailer catalogs describe it as an oven burner spark module, while other catalogs identify it as a surface-burner spark module.
Part W10860916Replaces W10457998Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part NumberW10860916
ReplacesW10457998
ManufacturerWhirlpool
Appliance TypeRange
Part TypeRange spark module
✅ Cross Reference Information
Current Part NumberW10860916
ReplacesW10457998
Common Symptoms
- No spark or clicking from any affected burner
- Weak or intermittent spark that does not ignite gas reliably
- One burner fails to spark while other burners operate
- Continuous sparking after the control is turned off
- Oven bake or broil burner fails to ignite on models using this module
Check Before Replacing
- With the gas supply available and the burner control turned to Lite, observe whether the affected electrode produces a spark; do not place hands near the ignition area.
- If only one burner is affected, visually inspect that burner’s electrode and spark wire for visible cracking, looseness, contamination, or damage before attributing the problem to the module.
- If all connected burners lose spark simultaneously, check that the range is receiving electrical power and that the spark-module wiring connectors are seated; disconnect electrical power before inspecting connectors.
- Look for visible scorching, overheating, moisture contamination, or damaged wiring around the module. Do not energize the appliance with exposed wiring or a damaged board.
Pro Tip
If the electrode and spark wire appear intact, compare the affected burner with a normally operating burner; a common failure pattern is loss of spark on one output channel while other outputs continue working.
Part Details
Part NumberW10860916
Part TypeRange spark module
ManufacturerWhirlpool
Appliance TypeRange
Primary FunctionGenerates and distributes high-voltage ignition pulses to the range’s gas-burner spark electrodes.
Installation Notes
- Disconnect electrical power and shut off the gas supply before servicing or installing the module.
- Use the appliance’s model-specific service information to identify the module and connector locations; do not rely on a generic installation procedure.
- Label or photograph wiring connections before disconnecting them, then reconnect the replacement exactly as configured on the appliance.
- After installation, restore utilities and verify ignition operation from a safe position; stop if gas odor, arcing outside the intended ignition area, damaged wiring, or abnormal sparking is present.
Verified Compatible Models
IGL730CS0, JGS1450DB0, JGS1450DP0, JGS1450DS0, JGS1450DS1, JGS1450FB0, JGS1450FS0, JGS1450FS1, JGS1450ML0, JGS1450ML1, WEG745H0FE0, WEG745H0FH0, WEG745H0FS0, WEG750H0HV0, WEG750H0HZ0
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
