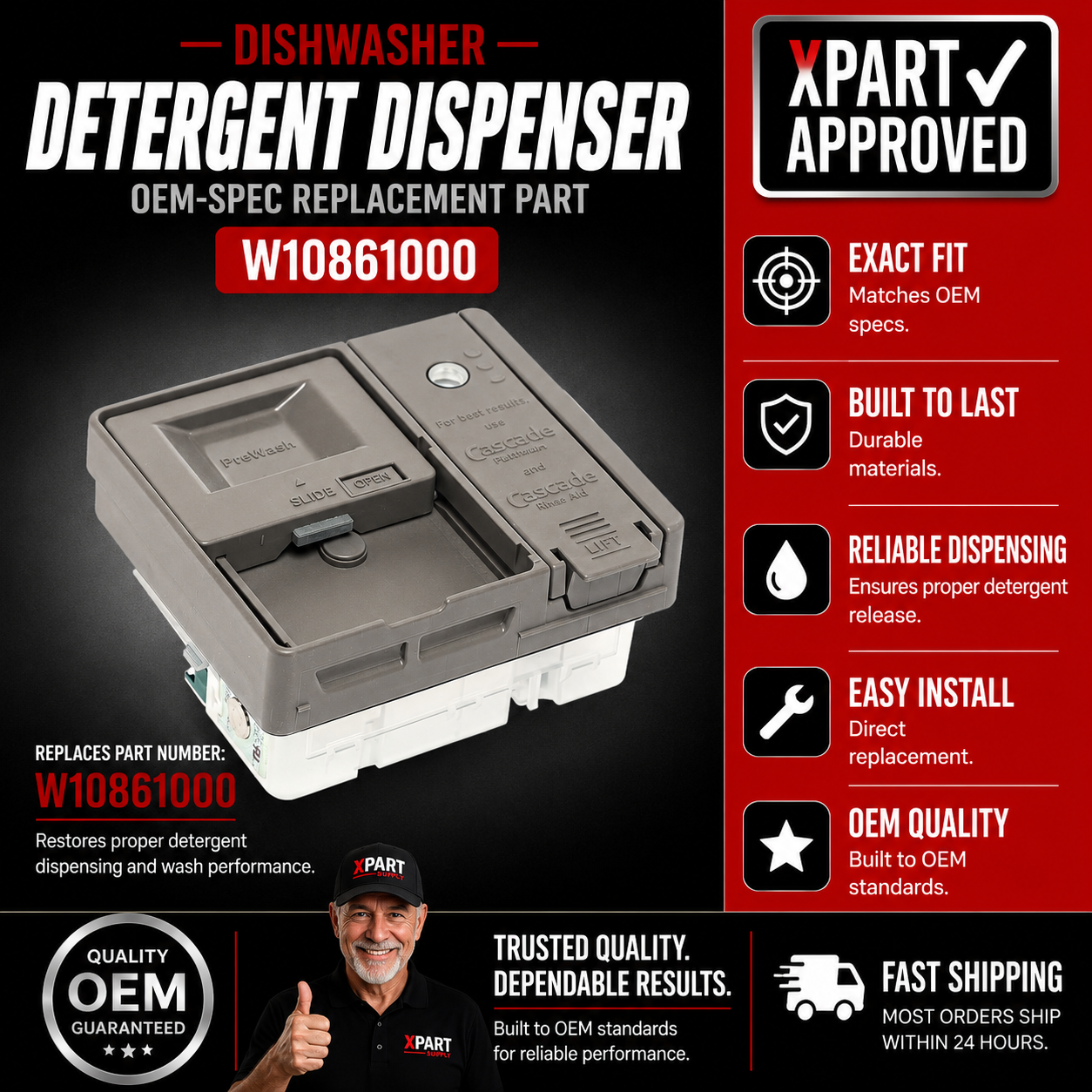

Whirlpool Dishwasher Detergent & Rinse Aid Dispenser Assembly W10861000, Replaces W10620297, W10876529

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Detergent is not dispensed
• Dispenser door or latch fails
• Detergent or rinse aid leaks from the dispenser
• Dishware remains poorly cleaned when the dispenser does not release detergent

Check Before Replacing

• Confirm the dispenser door is not blocked by tall cookware or dishware.
• Inspect the dispenser door, latch, and reservoir for visible cracking or damage.
• Check whether detergent remains in the closed compartment after a completed cycle.
• Verify the appliance model number before ordering because dispenser fitment is model-specific.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before servicing the dishwasher.
• Follow the appliance’s model-specific service instructions when removing the inner door panel and dispenser.
• Verify the replacement against the appliance model number and the original dispenser’s mounting and connector configuration.

Verified Compatible Models

ADB1700ADB3, ADB1700ADS4, JDB9200CWP2, JDB9200CWS2, KDFE104DSS5, KDFE104DWH2, KDFE104HPS1, KDFE104HWH0, KDFE204EBL2, KDFE204EWH4, KDFE304DBL2, KDTE104EBL2, KDTE104EBS1, KDTE104EBS2, KDTE104EBS3, KDTE104ESS1, KDTE104ESS2, KDTE104EWH1, KDTE204EBL1, KDTE204ESS3, KDTE204EWH3, KDTE234GPS0, KDTE254EBL3, KDTE254ESS3, KDTM354DSS4, KDTM354EBS2, KDTM384EBS2, KDTM384ESS0, KDTM384ESS3, KDTM404EBS1, KDTM404EBS3, KDTM404EWH2, KDTM704EBS0, KDTM804ESS1, MDB4949SDH3, MDB4949SDM3, MDB4949SHW0, MDB4949SHZ1, MDB5969SDM2, MDB7949SDM2, MDB7959SHK0, MDB7959SHZ0, MDB8959SFZ0, MDB8969SDE3, MDB8979SFZ1, WDF560SAFB0, WDF560SAFB1, WDF560SAFB2, WDF560SAFM0, WDF560SAFM1, WDF560SAFM2, WDF560SAFT1, WDF560SAFW1, WDF760SADW2, WDP540HAMW2, WDP560HAMW0, WDT540HAMZ1, WDT730HAMZ1, WDT920SADE2, WDT970SAHZ0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
