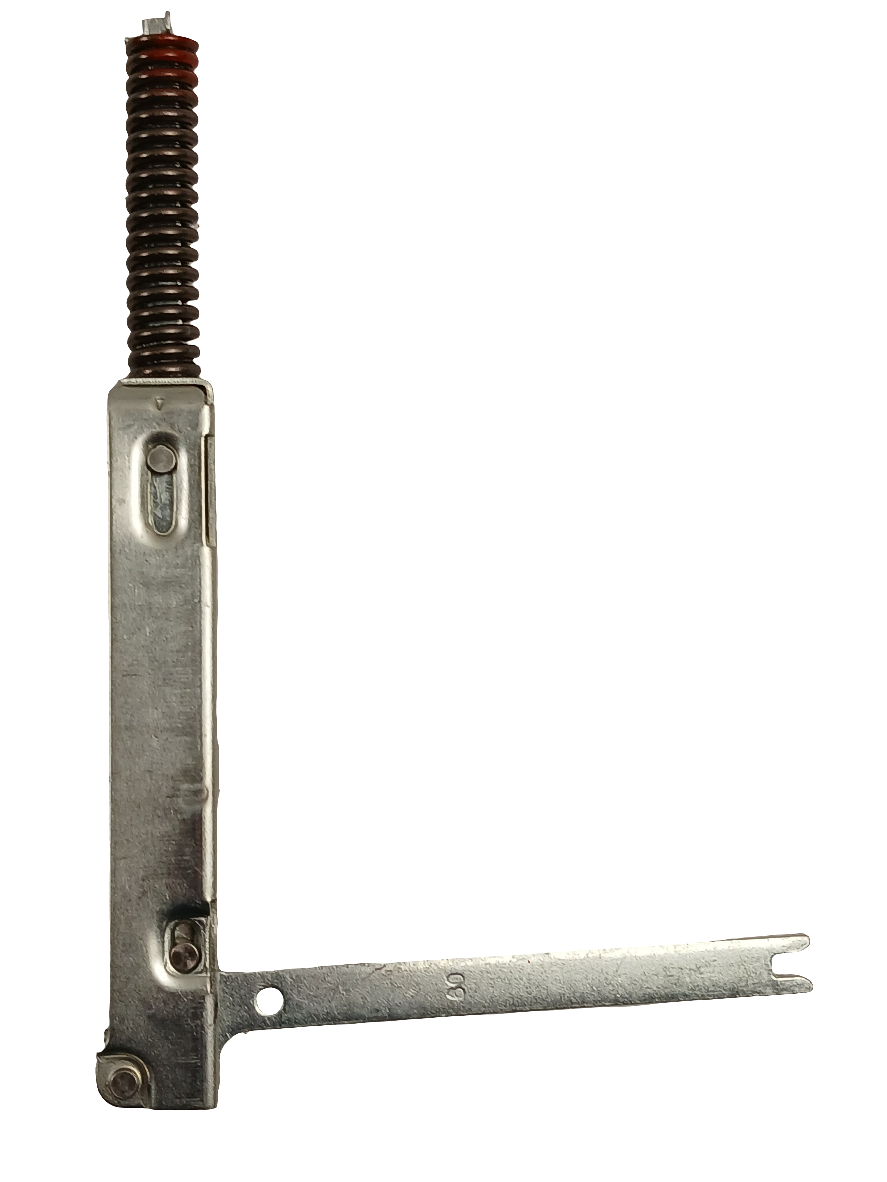

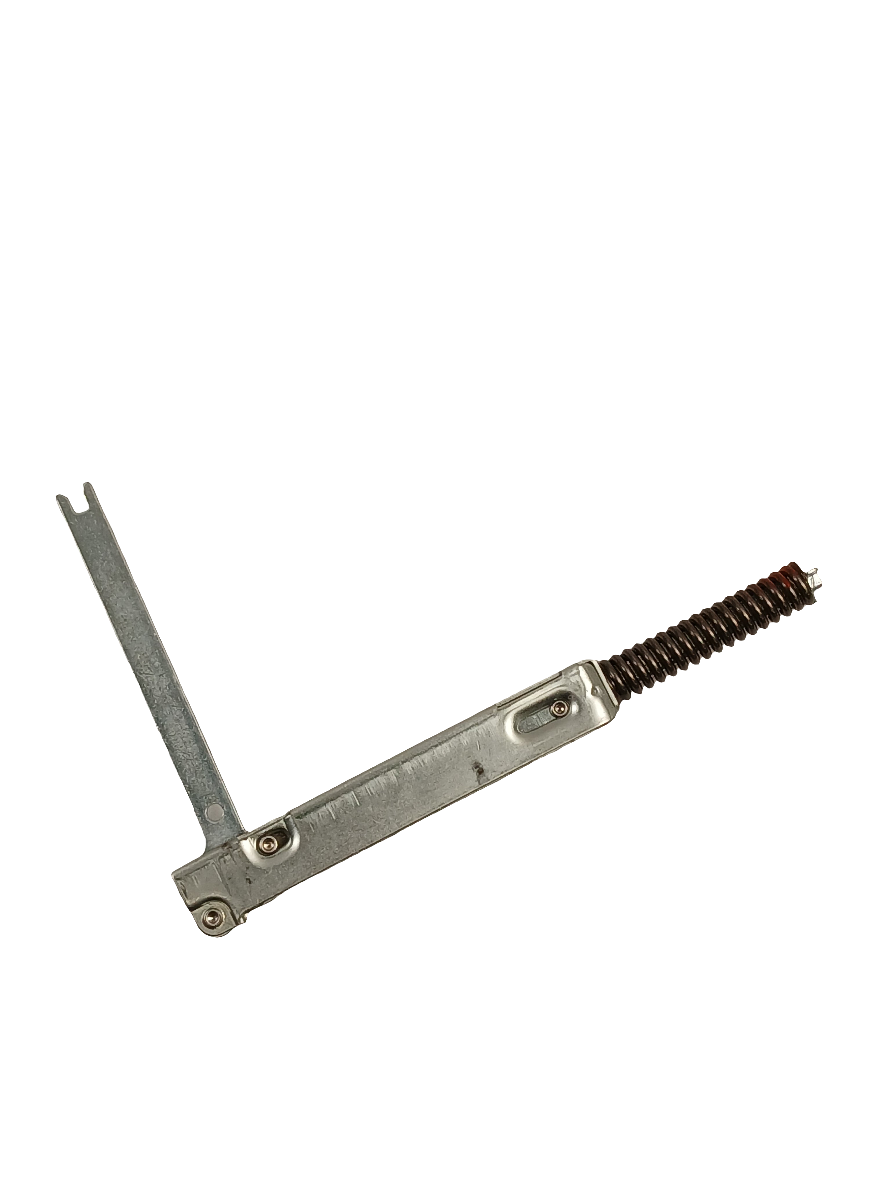

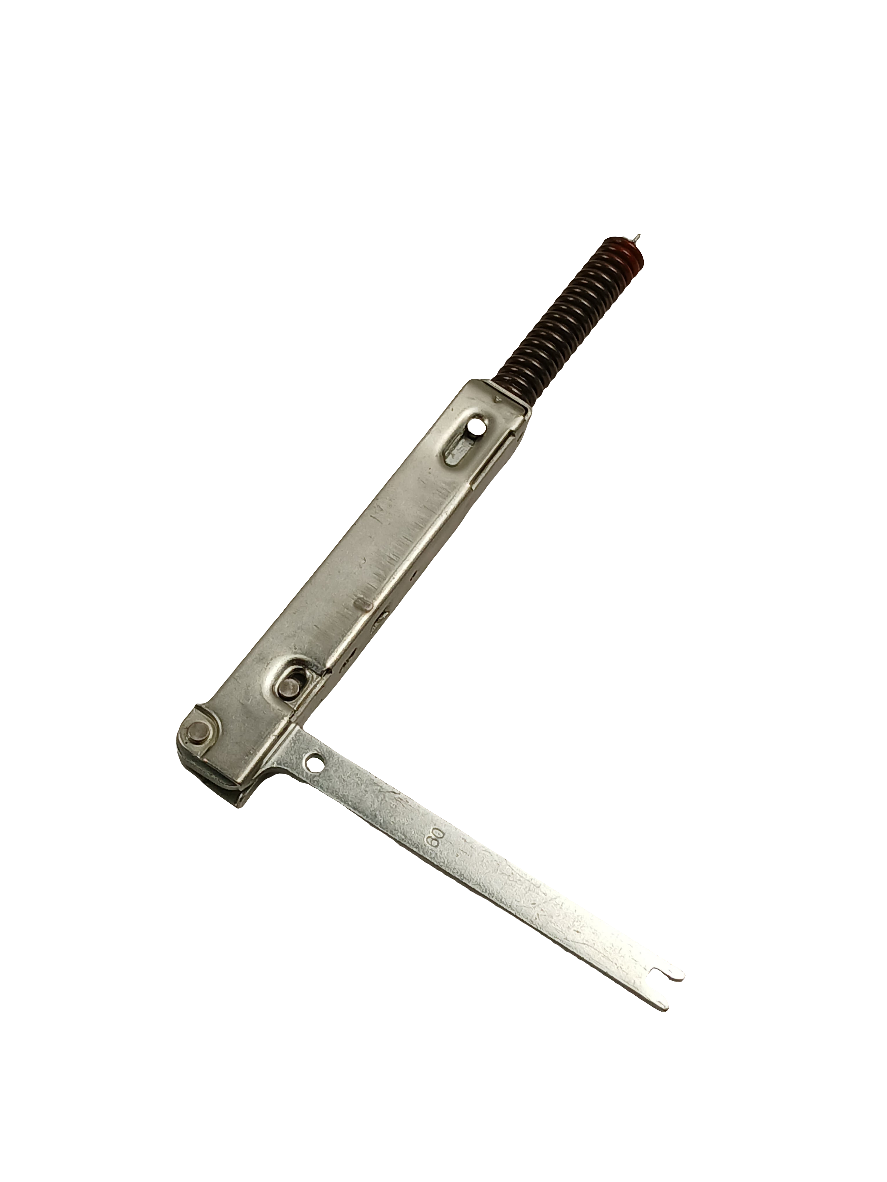

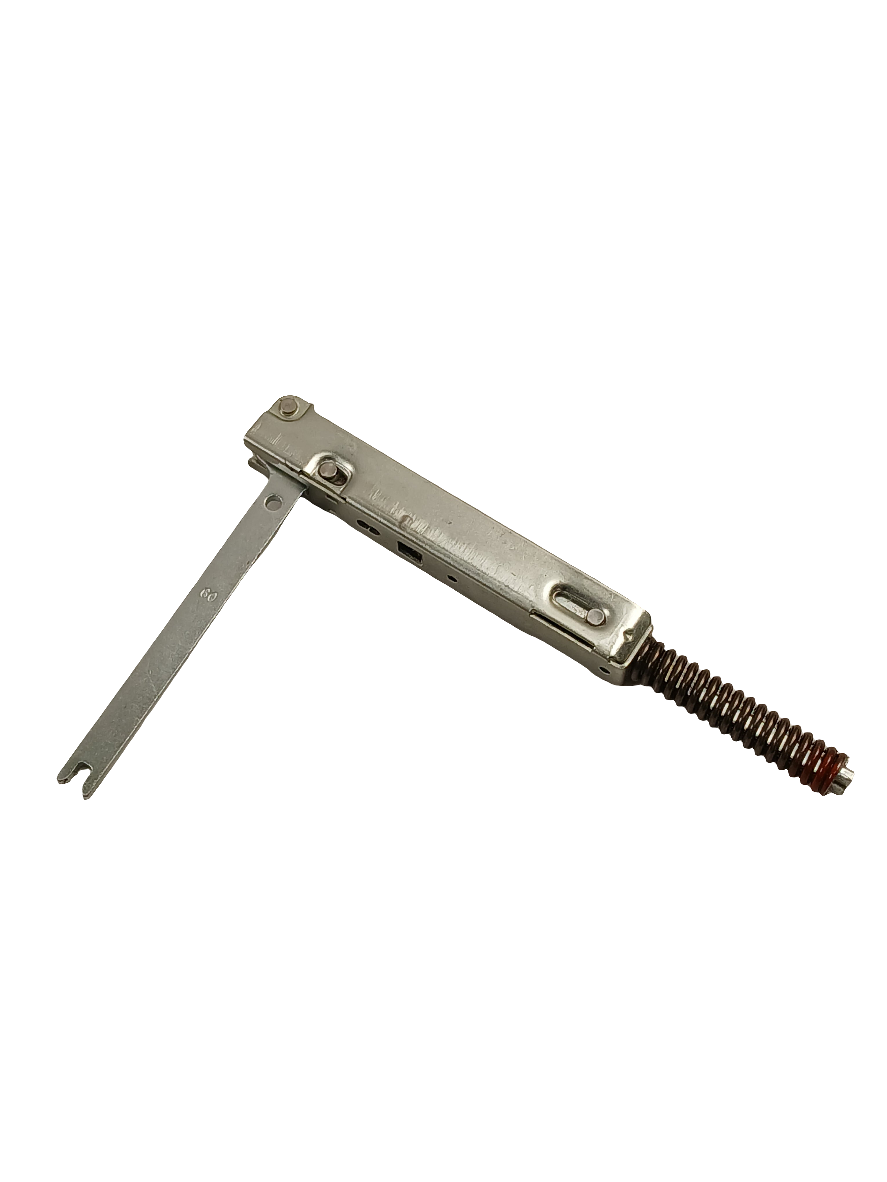

Whirlpool Microwave Door Hinge W10874474, Replaces 461968979601, W10120478, W10510097, W11256757, W11662213, WPW10510097

Genuine Whirlpool microwave door hinge for built-in microwaves and microwave oven combinations. It supports the microwave door and allows it to pivot open and closed.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Door sags or sits unevenly
• Door binds, sticks, or is difficult to open or close
• Door does not close fully
• Door alignment is uneven and the seal may not be consistent
• Hinge is visibly bent, loose, or damaged

Check Before Replacing

• With power disconnected, inspect the hinge and surrounding mounting area for visible bending, looseness, cracking, or displacement.
• Open and close the door slowly without forcing it; check for binding, sagging, unusual movement, or a door that does not sit evenly in the frame.
• Check whether the door closes fully and evenly around the perimeter; do not operate the microwave if the door, hinge, or shielding area is damaged.
• Before replacing the hinge, compare the suspected hinge position and orientation with the service information for the specific appliance model, since latch or interlock problems can produce similar door-related symptoms.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM door hinge
• Provides the door pivot point
• Helps maintain door alignment for consistent closure and sealing
• Used on select built-in microwaves and microwave/oven combinations
• Exact part number: W10874474

Installation Notes

• Disconnect electrical power before servicing.
• Support the microwave door during removal and installation to prevent damage or injury.
• Install the hinge in the same orientation and mounting position as the original part, following the appliance-specific service instructions.
• Because the microwave door contains shielding components, Whirlpool-related service information recommends installation by a qualified service technician.
• After installation, verify door alignment and full closure, and have the microwave checked for leakage from the shielding system before normal use.

Verified Compatible Models

JMC2127WB00, JMC2127WB01, JMC2127WS00, JMC2127WS01, JMC2127WS02, JMC2130WB00, JMC2130WB01, JMC2130WS00, JMC2130WS01, JMC2130WS02, JMC2427DS00, JMC2427DS01, JMC2427IL01, JMC2427IL02, JMC2427IM01, JMC2427IM02, JMC2430DB00, JMC2430DB01, JMC2430DB02, JMC2430DP00, JMC2430DP01, JMC2430DP02, JMC2430DS00, JMC2430DS01, JMC2430DS02, JMC2430IL01, JMC2430IL02, JMC2430IL15, JMC2430IM01, JMC2430IM02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
