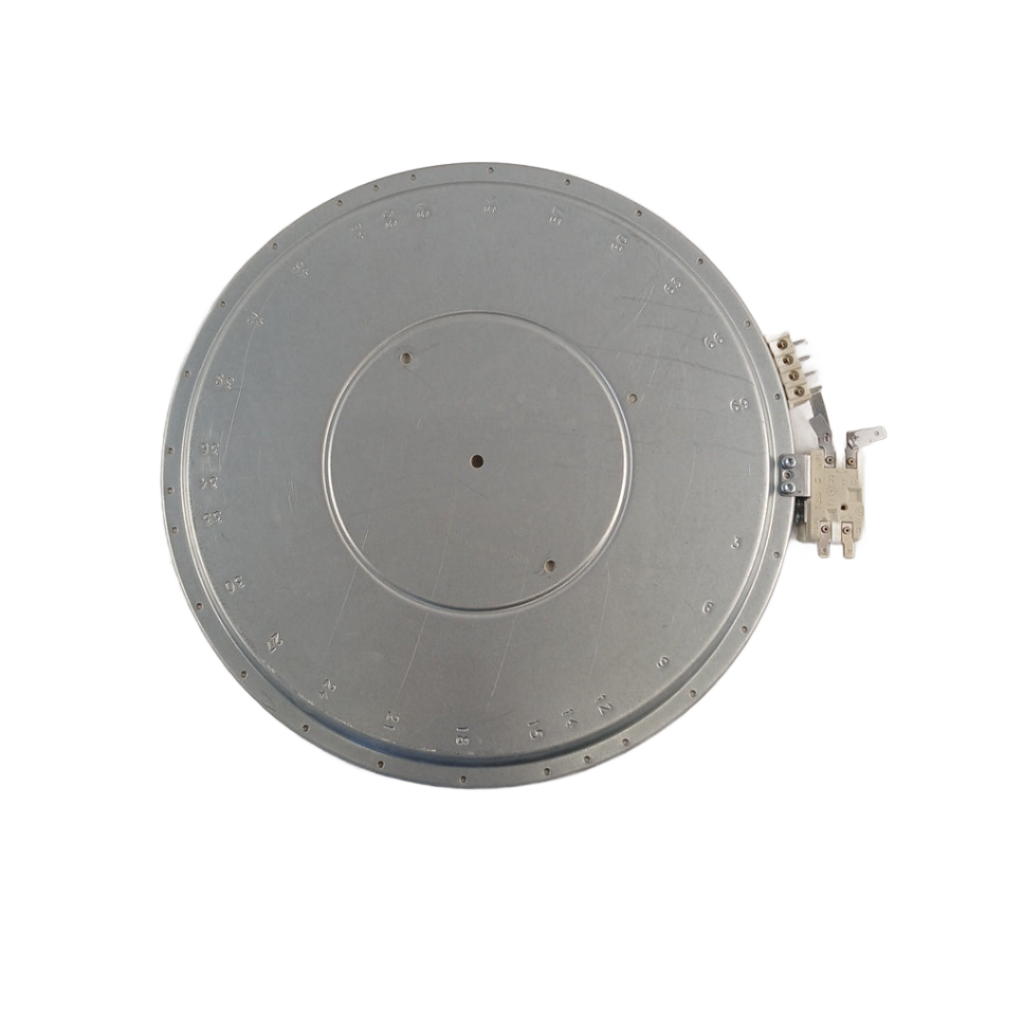

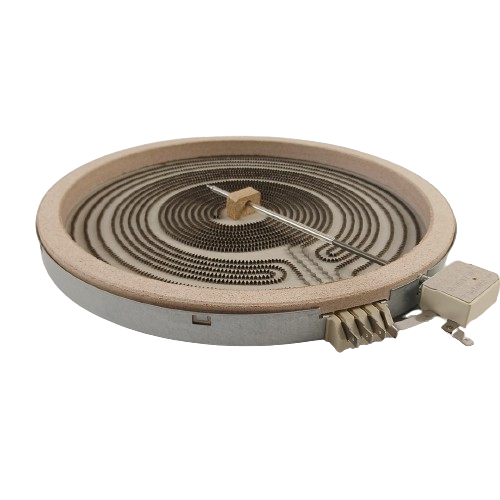

Whirlpool Range Radiant surface element, triple zone, 2700/1950/1050 watts W11101459, Replaces W10204682, W10259005, W10270587, W10670279, WPW10259005, WPW10270587

Genuine Whirlpool OEM radiant surface heating element for electric ranges and cooktops. The element supplies heat to a cooking area on the appliance surface.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• The cooking zone remains cold when activated.
• The element does not produce heat while other surface elements operate normally.
• The element heats only when a different zone or setting is selected, suggesting the selected heating circuit may require diagnosis.

Check Before Replacing

• Confirm the control is set to the intended surface zone and heat level.
• Try another surface element or setting to determine whether the appliance has general heating operation.
• After switching the appliance off and allowing it to cool, visually inspect the glass above the element for cracks or other visible damage.
• Check that the range or cooktop has power at the circuit breaker; do not remove panels or test live voltage unless qualified.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM radiant surface element.
• Triple-zone design.
• Rated 2700/1950/1050 watts.
• Used on electric ranges and cooktops.
• Supplies heat to a cooking area beneath the appliance surface.

Installation Notes

• Disconnect electrical power by unplugging the appliance or switching off the house circuit breaker before installation.
• Allow the appliance and surface to cool completely before handling the element.
• Wear work gloves to help protect hands during installation.
• Use the appliance-specific installation or service instructions for access and connector handling; no universal instructions were identified for this exact part.

Verified Compatible Models

JED4536WB01, JED4536WB02, JED4536WR00, JES8750CAB00, JES8850CAS01, JES8860CCW00, KERS505XSS02, KFED500EBL02, KFED500ESS02, MER6875BCB17, MET8820DS02, MET8885XB00, YKER507XSS02, YMET8820DS01, YMET8885XB00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
